DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

Testing condition:

Steps 3 and 4 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

With CONSULT-II

Start engine (TCS switch or VDC switch OFF).
Select DATA MONITOR mode with CONSULT-II.
Drive the vehicle for at least 5 consecutive seconds under the following conditions.

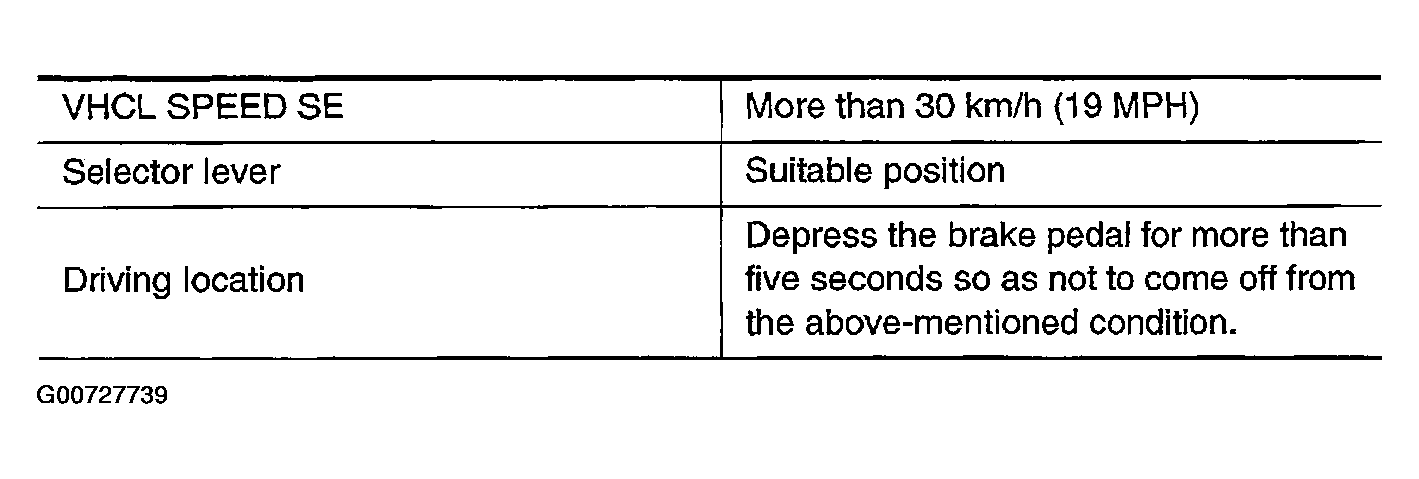

Fig 1: Identifying Procedure For Verifying DTC P1572 (ASCD)
Courtesy of NISSAN MOTOR CO., U.S.A.

If DTC is detected, Go to DIAGNOSTIC PROCEDURE .

If DTC is not detected, Go to the following step.
Drive the vehicle for at least 5 consecutive seconds under the following conditions.

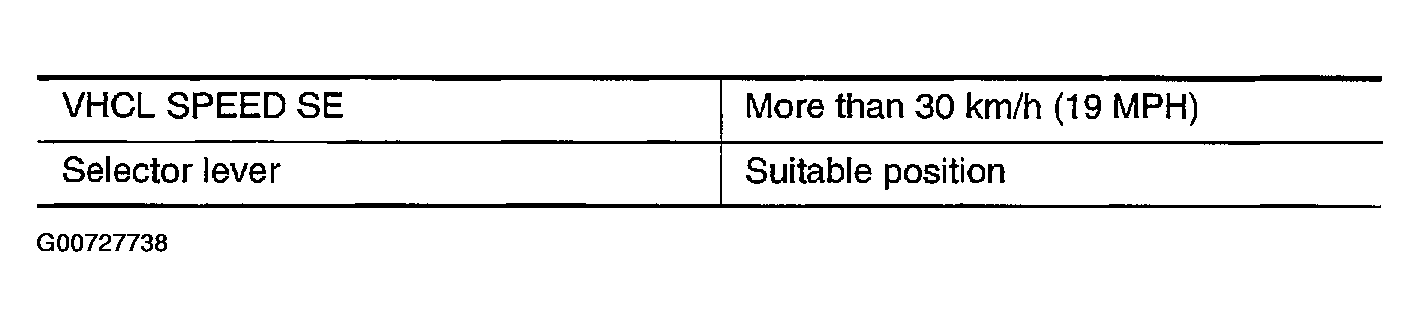

Fig 2: Identifying Procedure For Setting DTC P1572 (ASCD)
Courtesy of NISSAN MOTOR CO., U.S.A.
If DTC is detected, Go to DIAGNOSTIC PROCEDURE .

With GST

Follow the procedure with CONSULT-II above.
