ICC Brake Switch

Turn ignition switch OFF.
Disconnect ICC brake switch harness connector.
Check continuity between ICC brake switch terminals 1 and 2 under the following conditions.

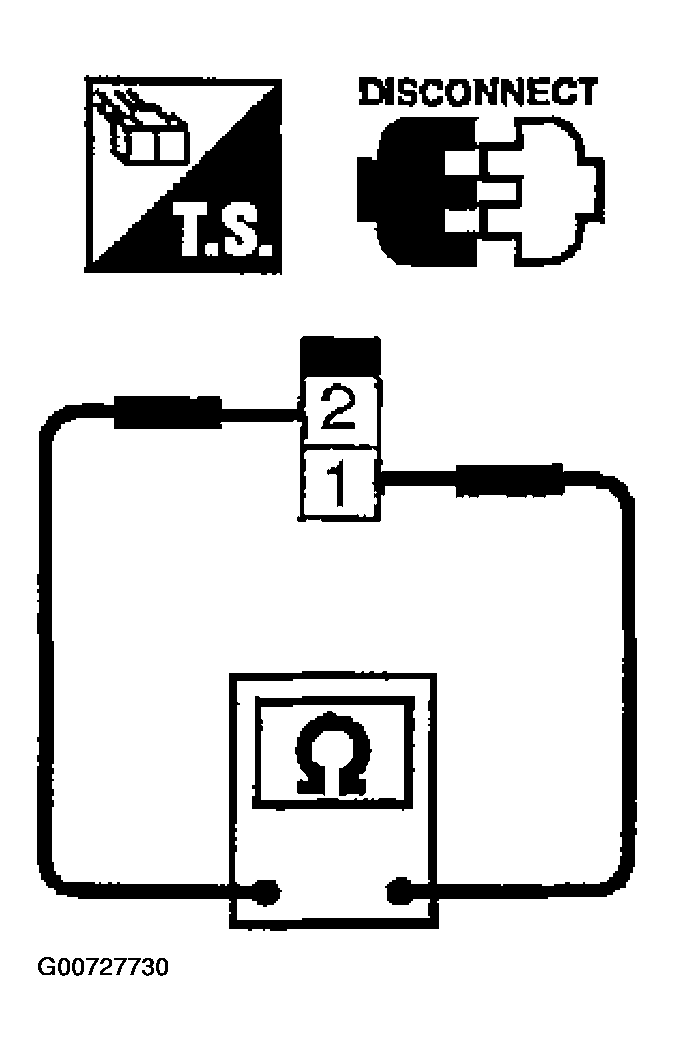

Fig 1: Testing ICC Brake Switch (W/DVOM)
Courtesy of NISSAN MOTOR CO., U.S.A.

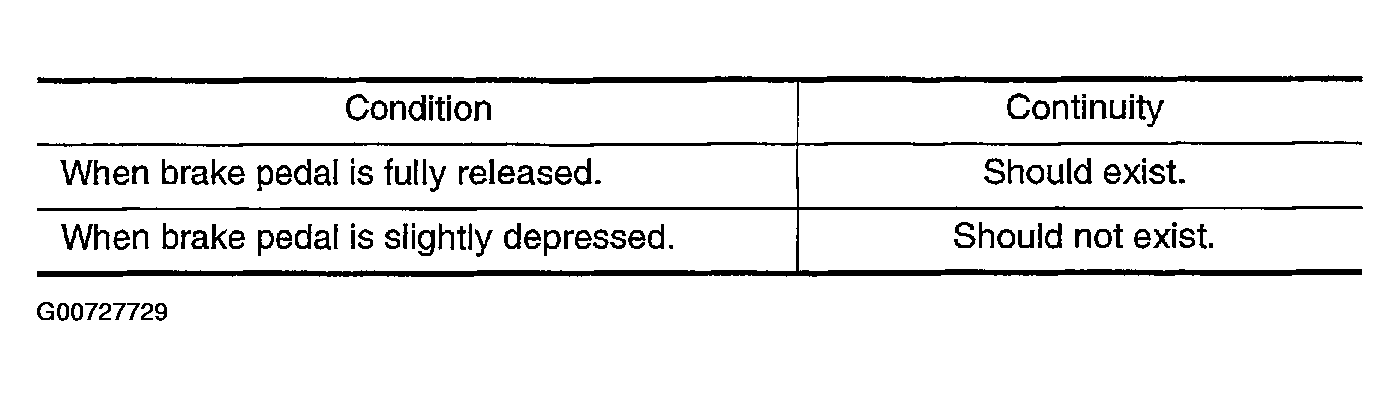

Fig 2: Identifying ICC Brake Switch Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ICC brake switch installation, Refer to brake pedal under ON-VEHICLE SERVICE , and perform step 3 again.
