Diagnostic Procedure

  1. Check Ground Connections
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. See Figure. Refer to GROUND INSPECTION .

    OK or NG

    1. OK: Go to 2.
    2. NG: Repair or replace ground connections.

  2. Check APP Sensor 1 Power Supply Circuit
    1. Disconnect accelerator pedal position (APP) sensor harness connector. See Figure.
    2. Turn ignition switch ON.
    3. Check voltage between APP sensor terminals 6 and ground with CONSULT-II or tester.

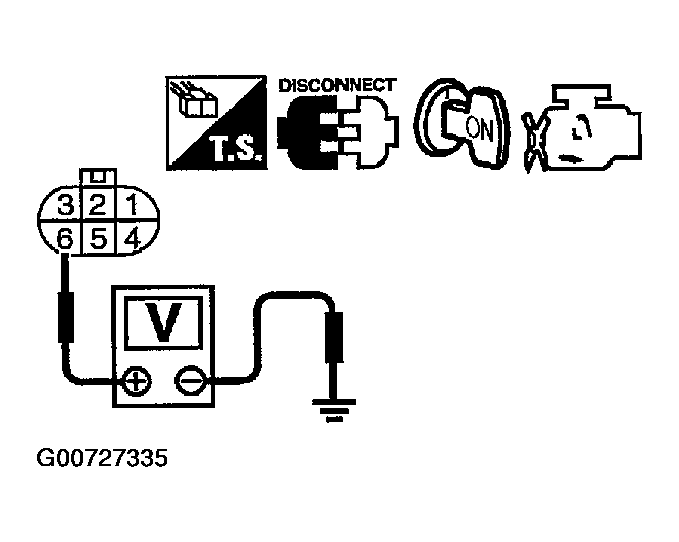

      Fig 1: Testing APP Sensor 1 Reference Voltage (DVOM)
      G00727335Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Voltage: Approximately 5V

    OK or NG

    1. OK: Go to 4.
    2. NG: Go to 3.

  3. Detect Malfunctioning Part

    Check the following.

    • Harness connectors E211, M41
    • Harness for open or short between ECM and accelerator pedal position sensor

    1. << Repair open circuit or short to ground or short to power in harness or connectors.
  4. Check APP Sensor 2 Power Supply Circuit-I

    Check voltage between APP sensor terminal 4 and ground with CONSULT-II or tester.

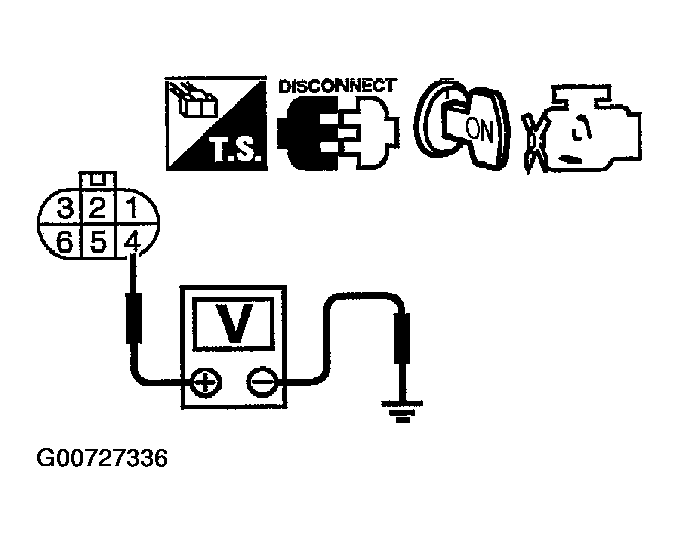

    Fig 2: Testing APP Sensor 2 Reference Voltage (DVOM)
    G00727336Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Voltage: Approximately 5V

    OK or NG

    1. OK: Go to 11.
    2. NG: Go to 5.

  5. Check APP Sensor 2 Power Supply Circuit-II
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between APP sensor terminal 4 and ECM terminal 91.

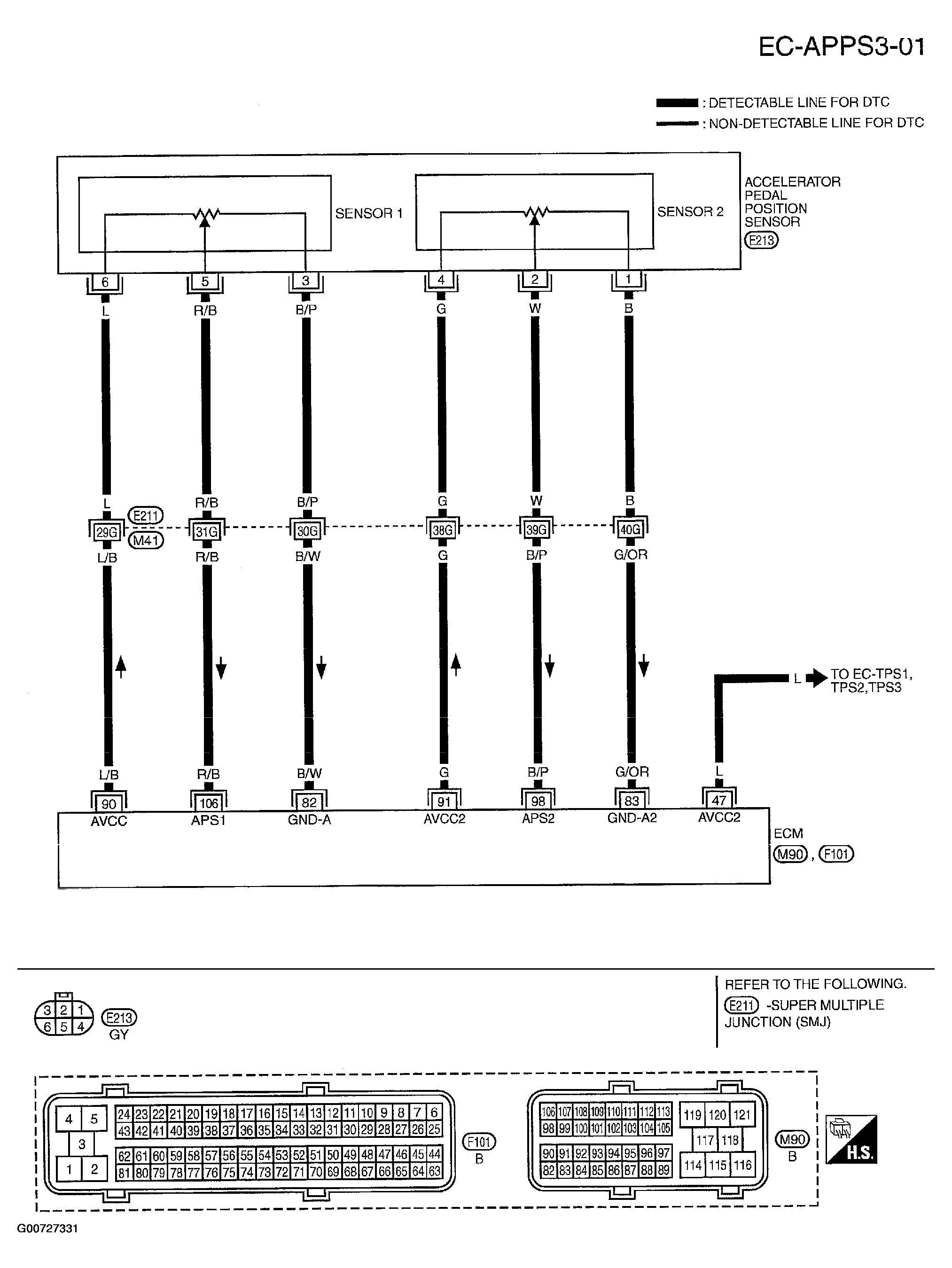

      Refer to wiring diagram. See Figure.

      1. Continuity should exist  .

    OK or NG

    1. OK: Go to 7.
    2. NG: Go to 6.
  6. Detect Malfunctioning Part

    Check the following.

    • Harness connectors E211, M41
    • Harness for open or short between ECM and accelerator pedal position sensor

    1. << Repair open circuit or short to ground or short to power in harness or connectors.
  7. Check APP Sensor 2 Power Supply Circuit-III

    Check the following.

    • Harness for short to power and short to ground, between the following terminals.

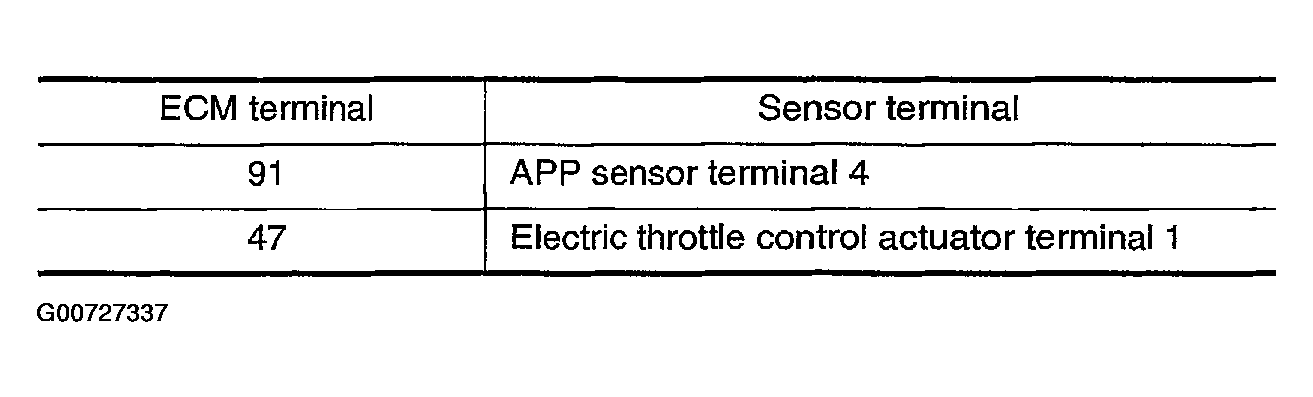

      Fig 3: APP Sensor 2 Power Supply Circuit-III ECM - Sensor Terminal Table
      G00727337Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Go to 9.
    2. NG: Go to 8.

  8. Detect Malfunctioning Part

    Check the following.

    • Harness connectors E211, M41
    • Harness for open or short between ECM and accelerator pedal position sensor

    1. << Repair open circuit or short to ground or short to power in harness or connectors.
  9. Check Throttle Position Sensor

    Refer to COMPONENT INSPECTION .

    OK or NG

    1. OK: Go to 17.
    2. NG: Go to 10.

  10. Replace Electric Throttle Control Actuator
    1. Replace electric throttle control actuator.
    2. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
    3. Perform IDLE AIR VOLUME LEARNING .
    1. Inspection end
  11. Check APP Sensor Ground Circuit For Open And Short
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between APP sensor terminals 3 and ECM terminal 82 (sensor 1), APP sensor terminal 1 and ECM terminal 83 (sensor 2).

      Refer to wiring diagram. See Figure.

      1. Continuity should exist  .
    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: Go to 13.
    2. NG: Go to 12.

  12. Detect Malfunctioning Part

    Check the following.

    • Harness connectors E211, M41
    • Harness for open or short between ECM and accelerator pedal position sensor

    1. Repair open circuit or short to ground or short to power in harness or connectors.
  13. Check APP Sensor Input Signal Circuit For Open And Short
    1. Check harness continuity between ECM terminal 106 and APP sensor terminal 5, ECM terminal 98 and APP sensor terminal 2.

      Refer to wiring diagram. See Figure.

      1. Continuity should exist  .

    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: Go to 15.
    2. NG: Go to 14.

  14. Detect Malfunctioning Part

    Check the following.

    • Harness connectors E211, M41
    • Harness for open or short between ECM and accelerator pedal position sensor

    1. Repair open circuit or short to ground or short to power in harness or connectors.
  15. Check APP Sensor

    Refer to COMPONENT INSPECTION .

    OK or NG

    1. OK: Go to 17.
    2. NG: Go to 16.

  16. Replace Accelerator Pedal Assembly
    1. Replace accelerator pedal assembly.
    2. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
    3. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
    4. Perform IDLE AIR VOLUME LEARNING .
    1. Inspection end
  17. Check Intermittent Incident

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    1. Inspection end
