ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

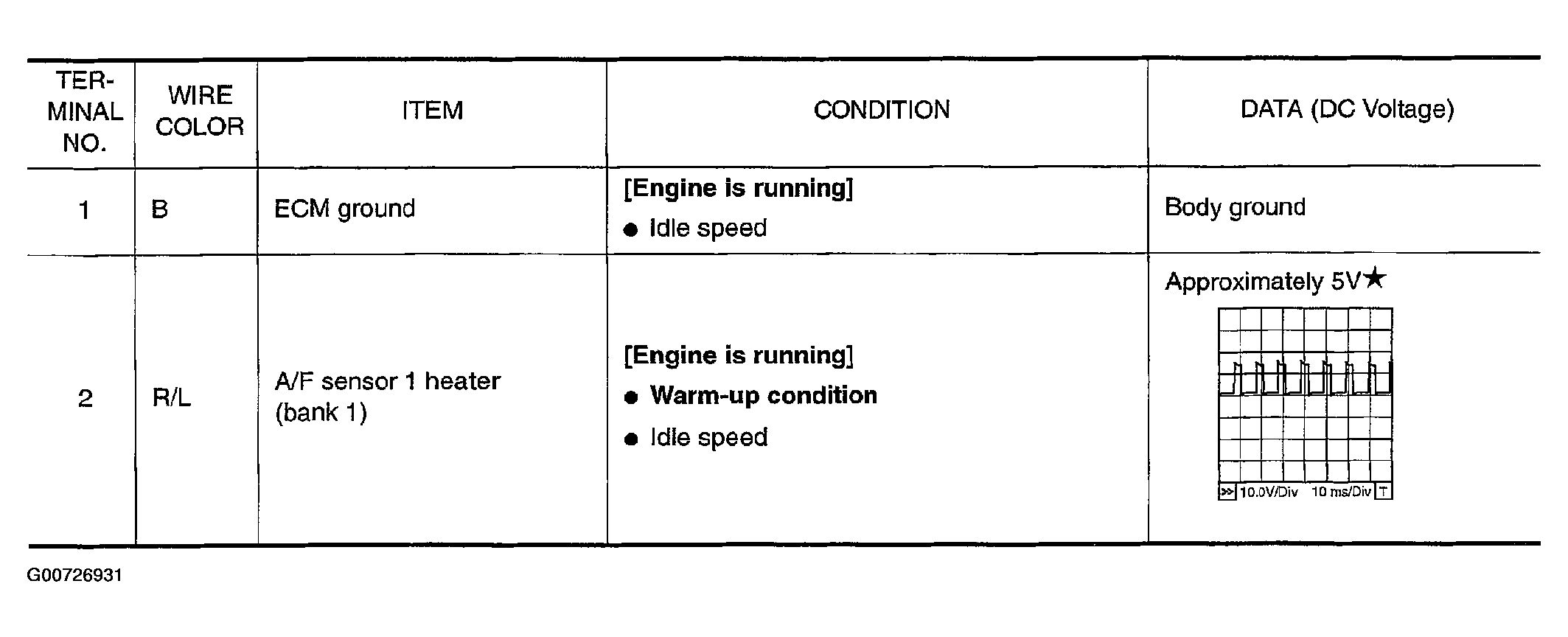

Fig 1: ECM Terminal Specifications (1 Of 9)

G00726931

Courtesy of NISSAN MOTOR CO., U.S.A.

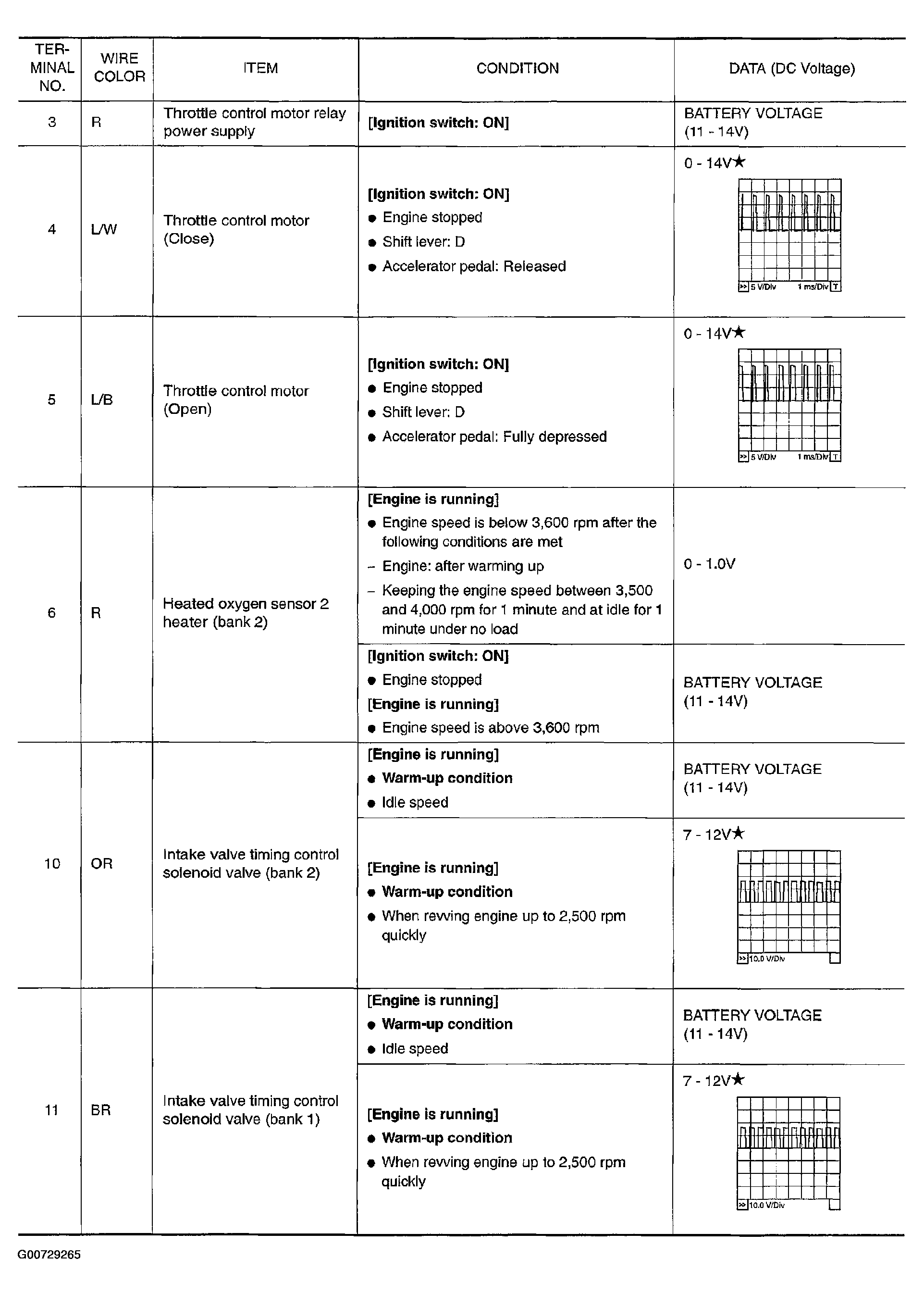

Fig 2: ECM Terminal Specifications (2 Of 9)

G00729265

Courtesy of NISSAN MOTOR CO., U.S.A.

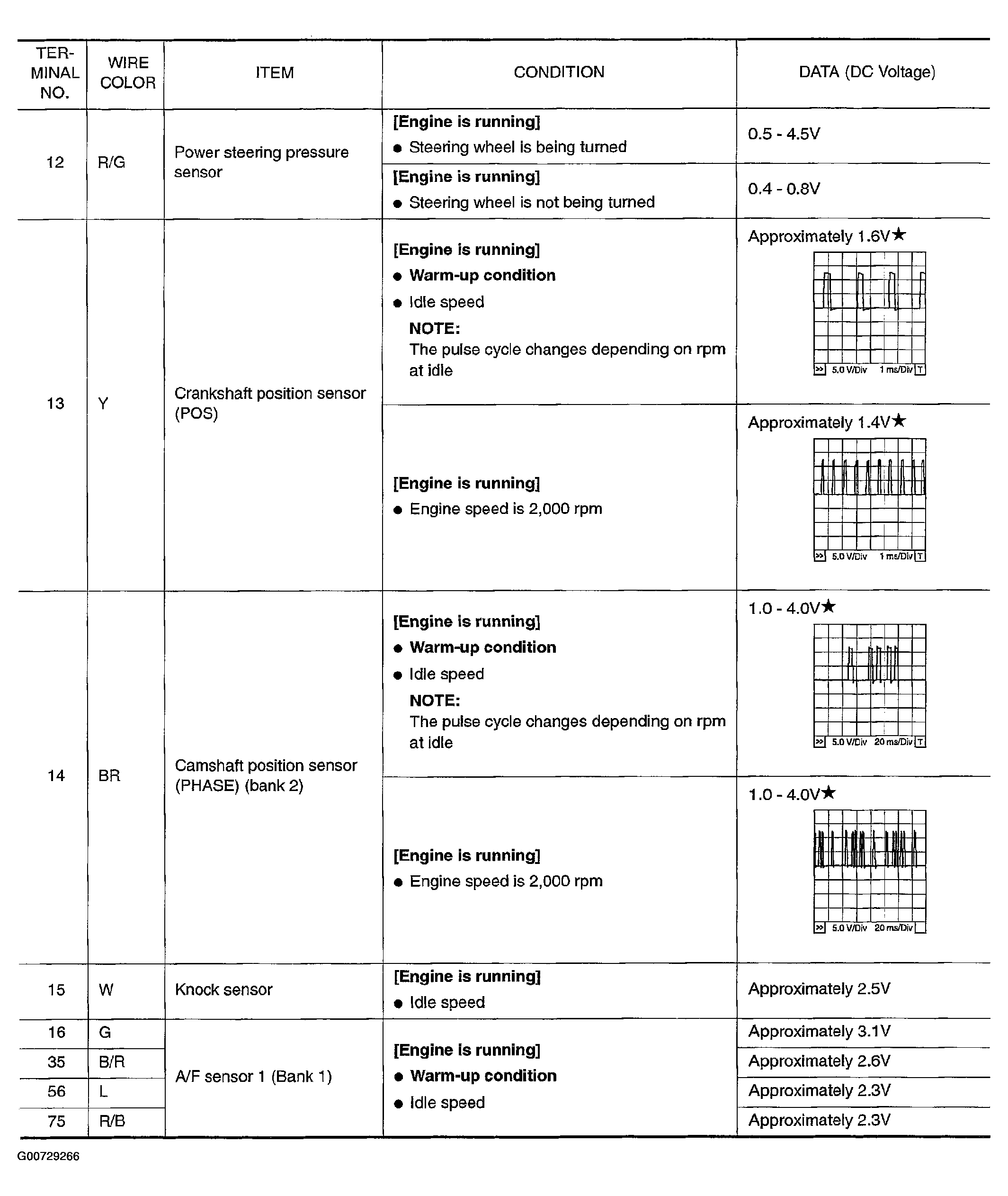

Fig 3: ECM Terminal Specifications (3 Of 9)

G00729266

Courtesy of NISSAN MOTOR CO., U.S.A.

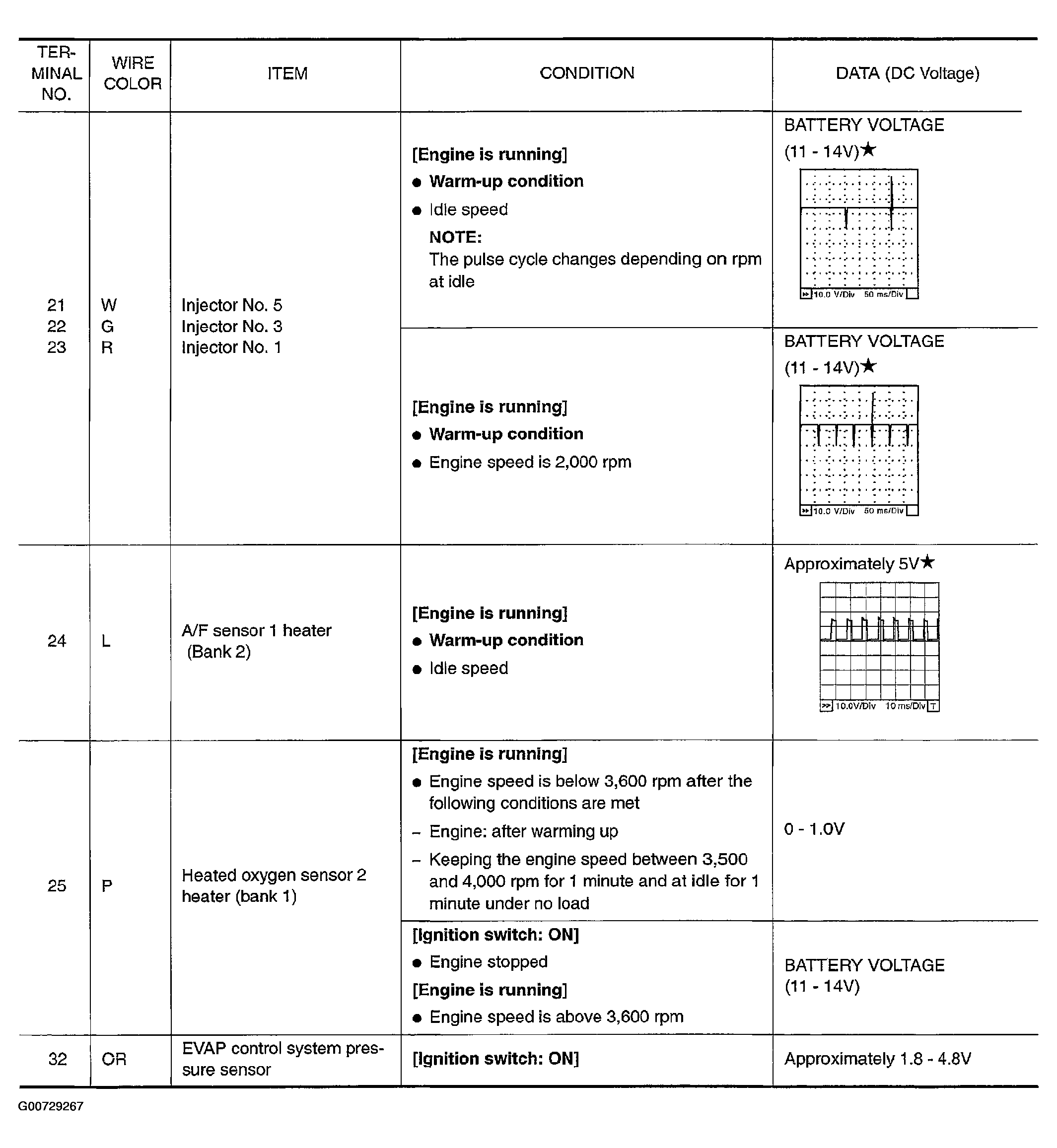

Fig 4: ECM Terminal Specifications (4 Of 9)

G00729267

Courtesy of NISSAN MOTOR CO., U.S.A.

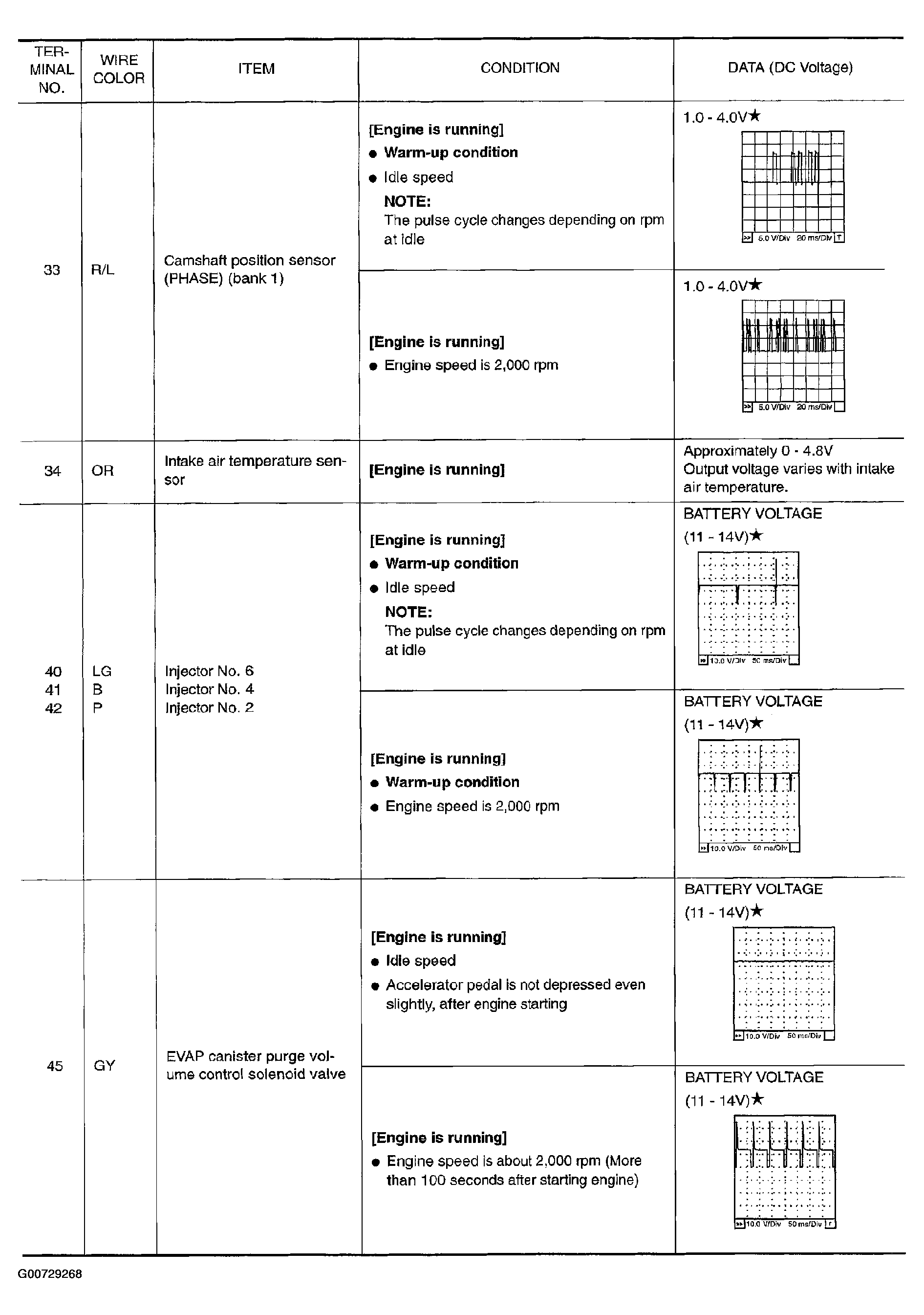

Fig 5: ECM Terminal Specifications (5 Of 9)

G00729268

Courtesy of NISSAN MOTOR CO., U.S.A.

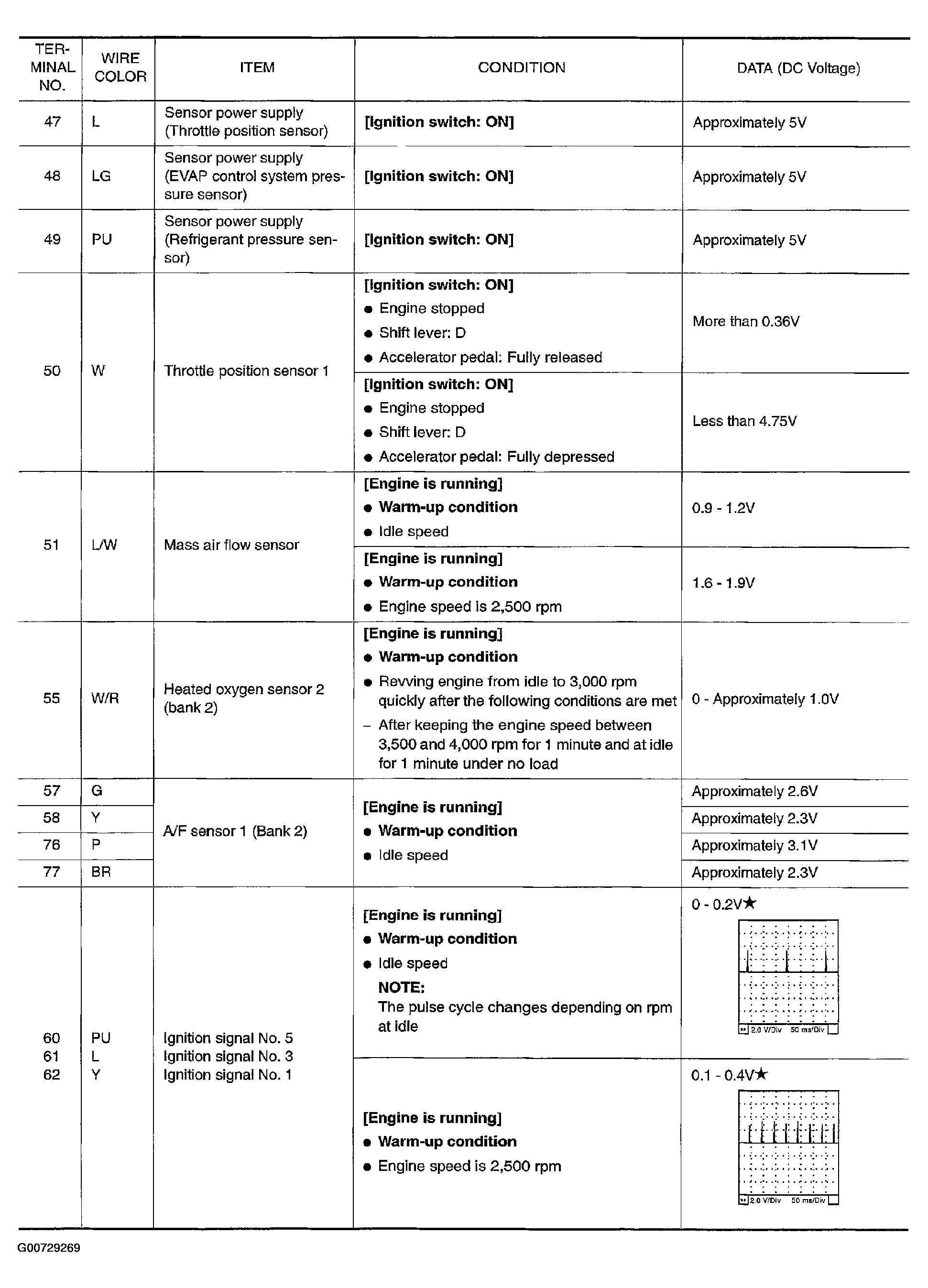

Fig 6: ECM Terminal Specifications (6 Of 9)

G00729269

Courtesy of NISSAN MOTOR CO., U.S.A.

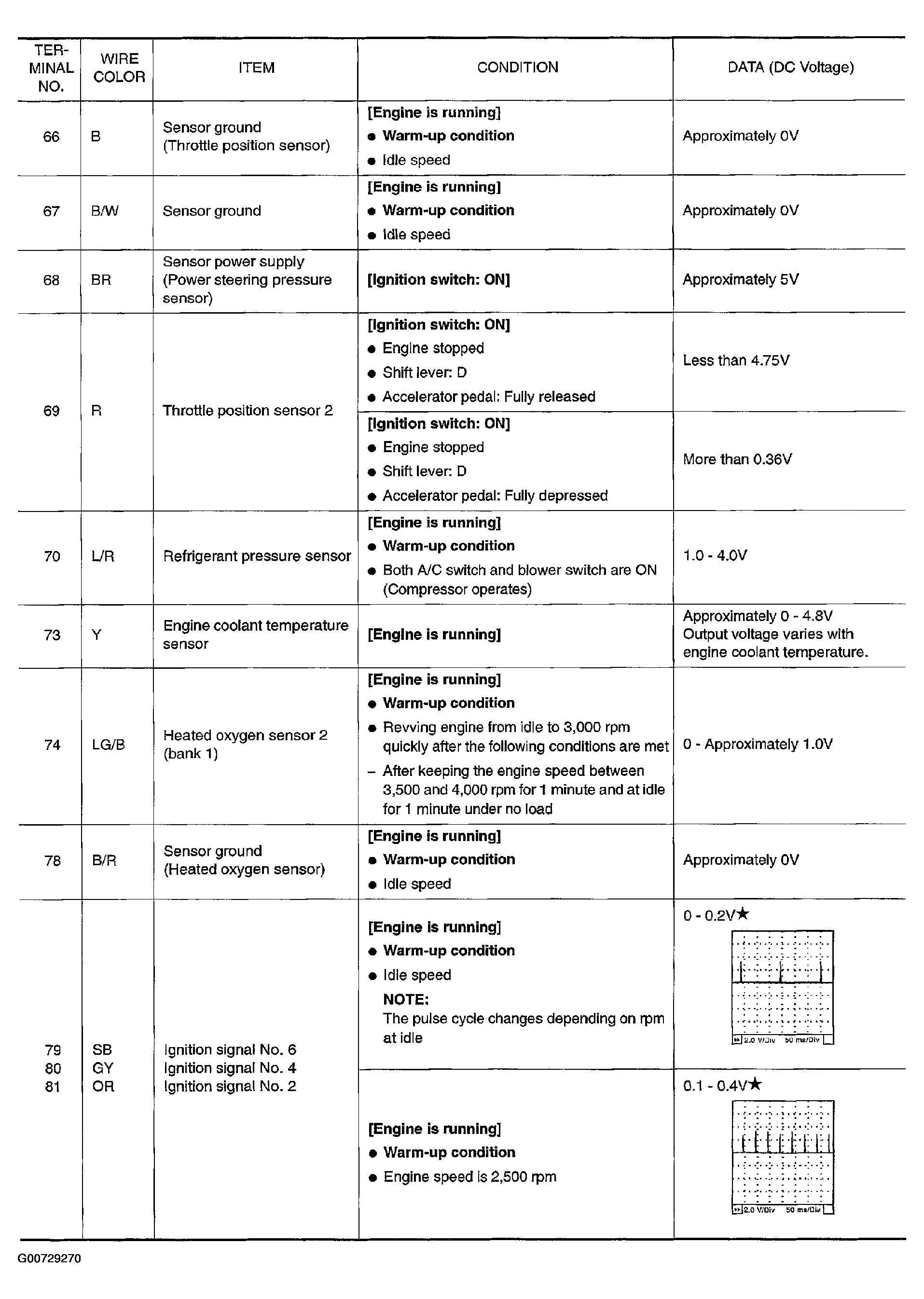

Fig 7: ECM Terminal Specifications (7 Of 9)

G00729270

Courtesy of NISSAN MOTOR CO., U.S.A.

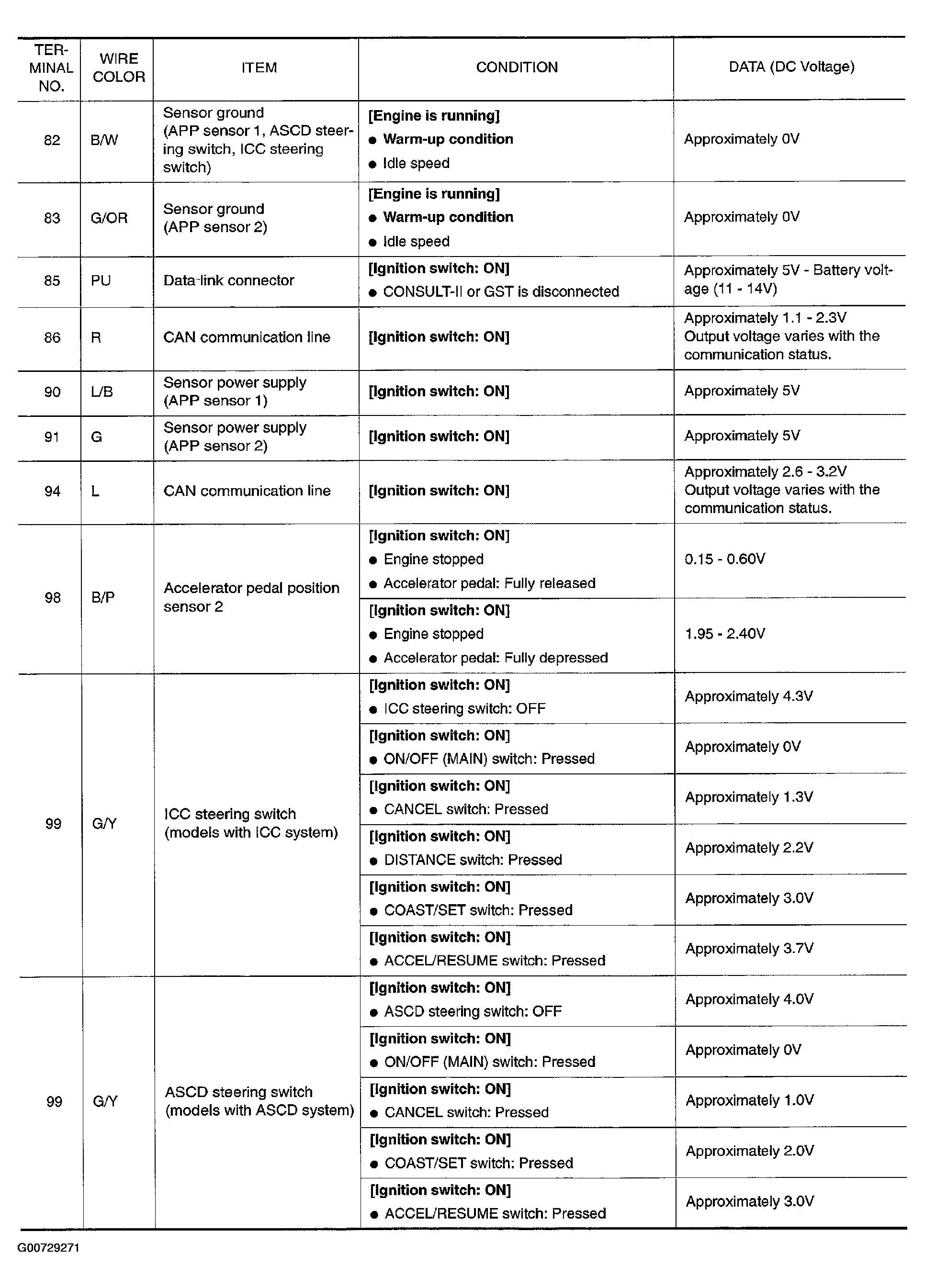

Fig 8: ECM Terminal Specifications (8 Of 9)

G00729271

Courtesy of NISSAN MOTOR CO., U.S.A.

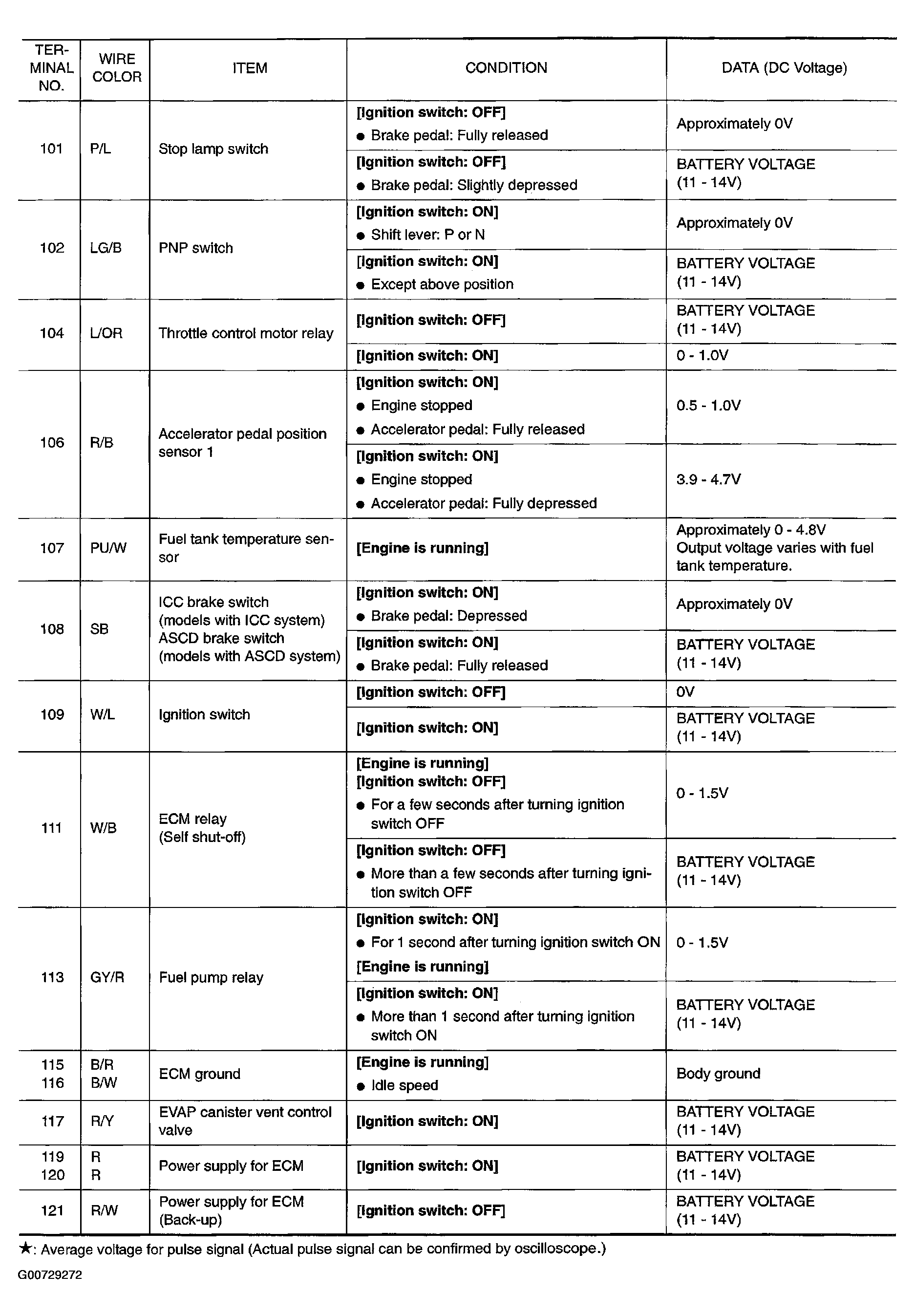

Fig 9: ECM Terminal Specifications (9 Of 9)

G00729272

Courtesy of NISSAN MOTOR CO., U.S.A.
