ECM Terminals And Reference Value: Preparation

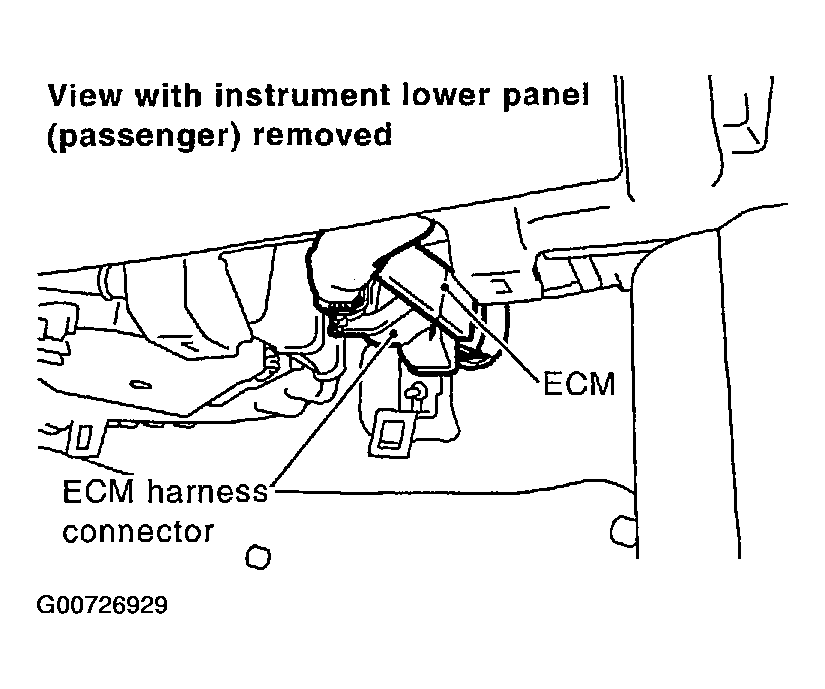

- ECM is located behind the passenger side instrument lower panel. For this inspection, remove passenger side instrument lower panel.
- Remove ECM harness connector.
Courtesy of NISSAN MOTOR CO., U.S.A.

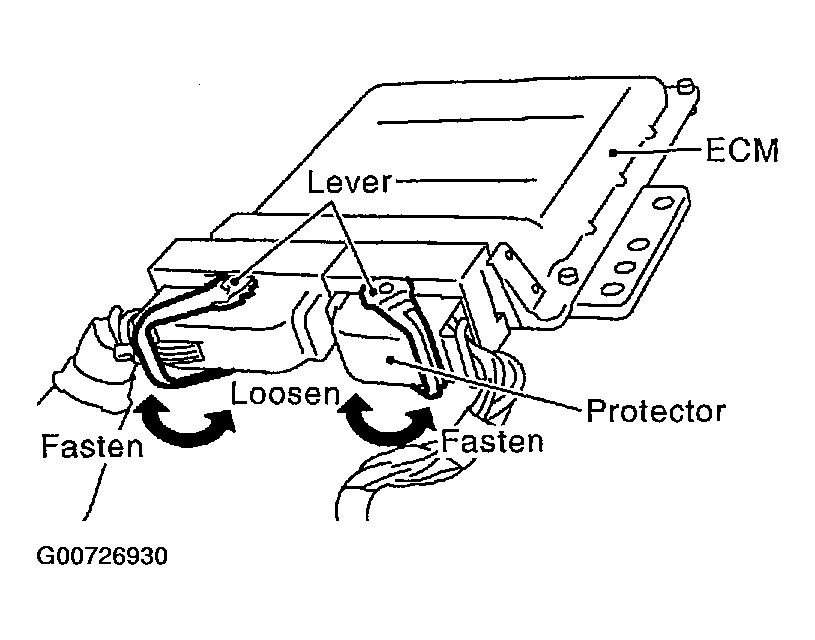

- When disconnecting ECM harness connector, loosen it with levers as far as they will go as shown in Fig 2.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Connect a break-out box (SST) and Y-cable adapter (SST) between the ECM and ECM harness connector.
- Use extreme care not to touch 2 pins at one time.
- Data is for comparison and may not be exact.
