Engine Control Component Parts Location

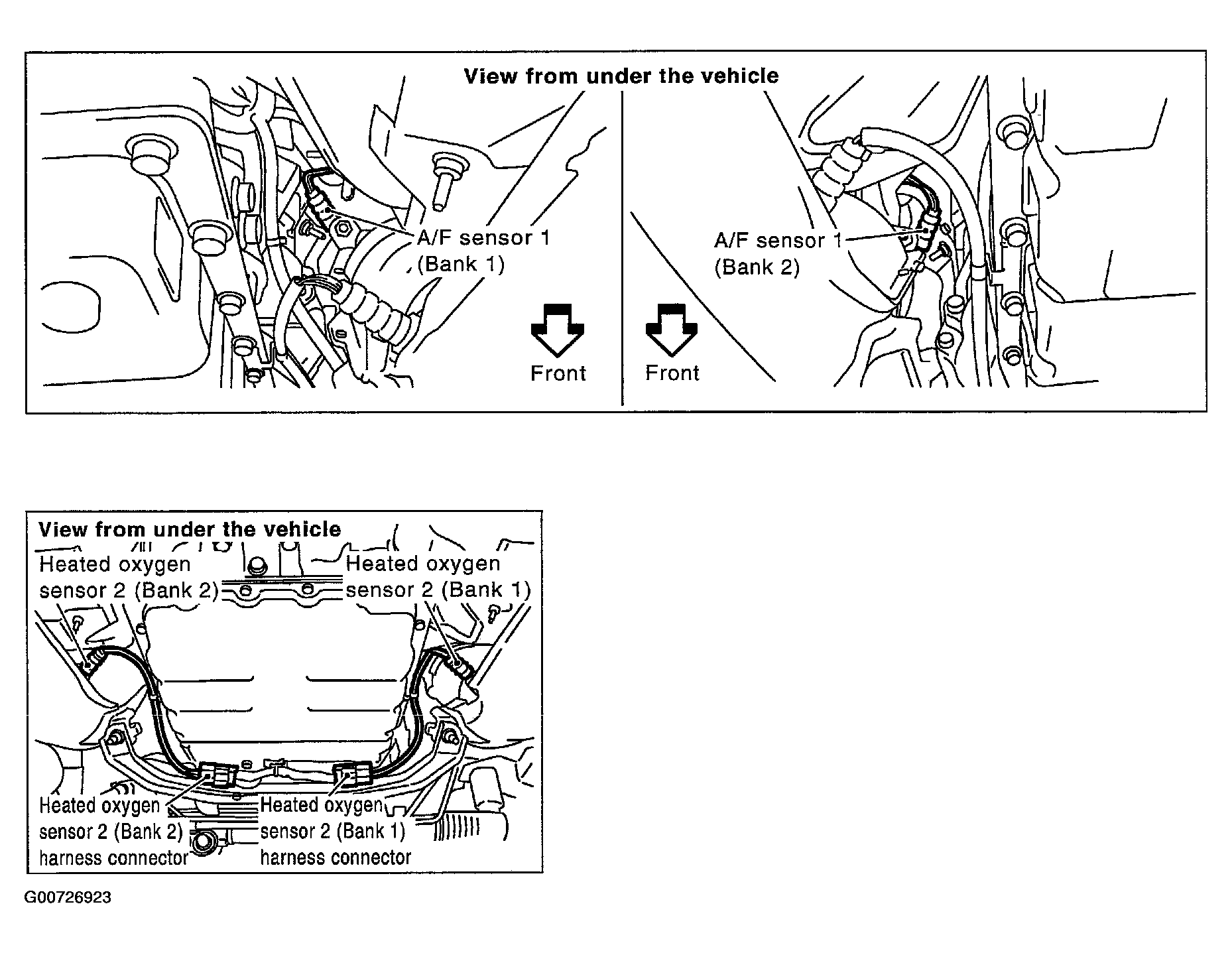

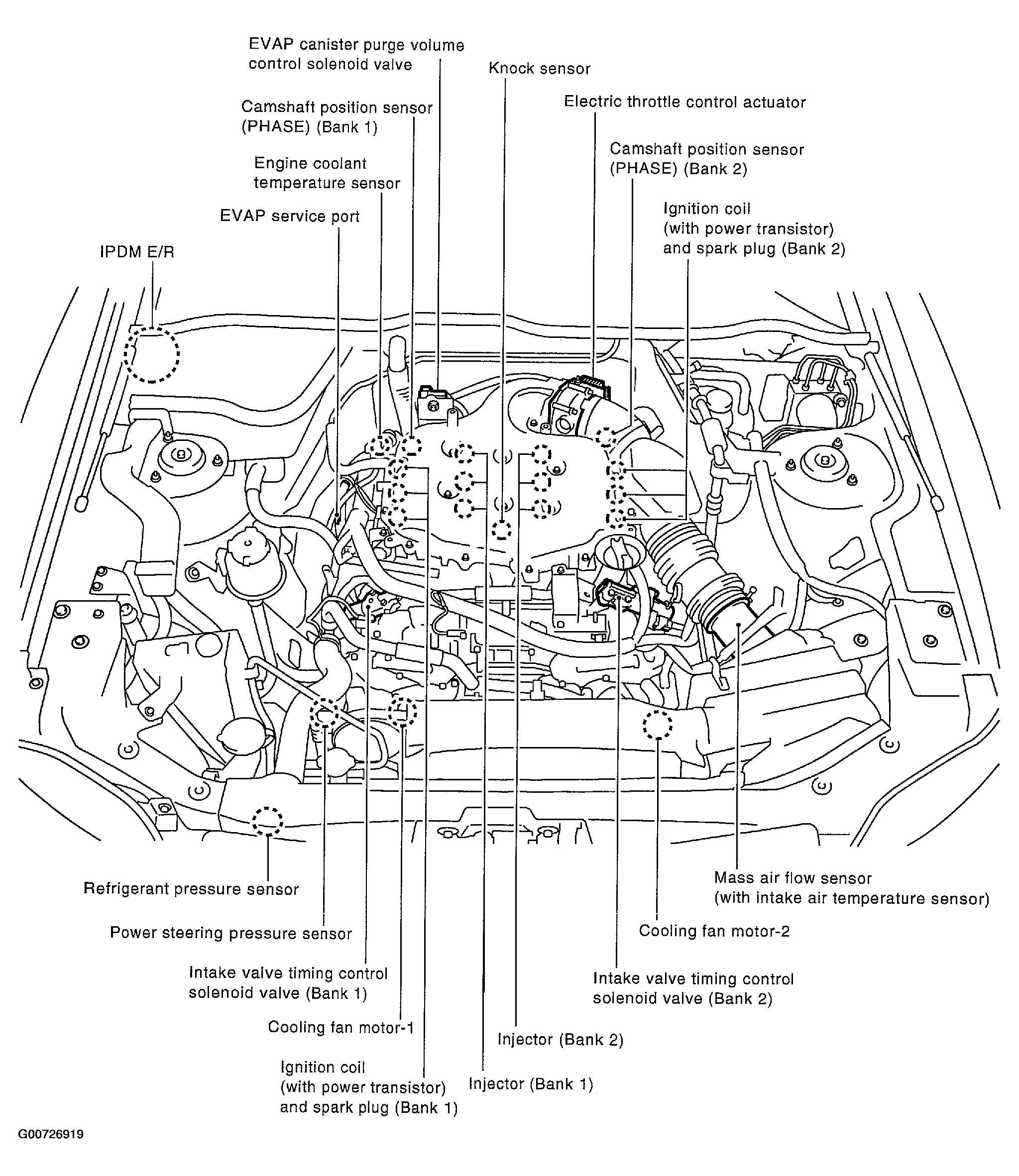

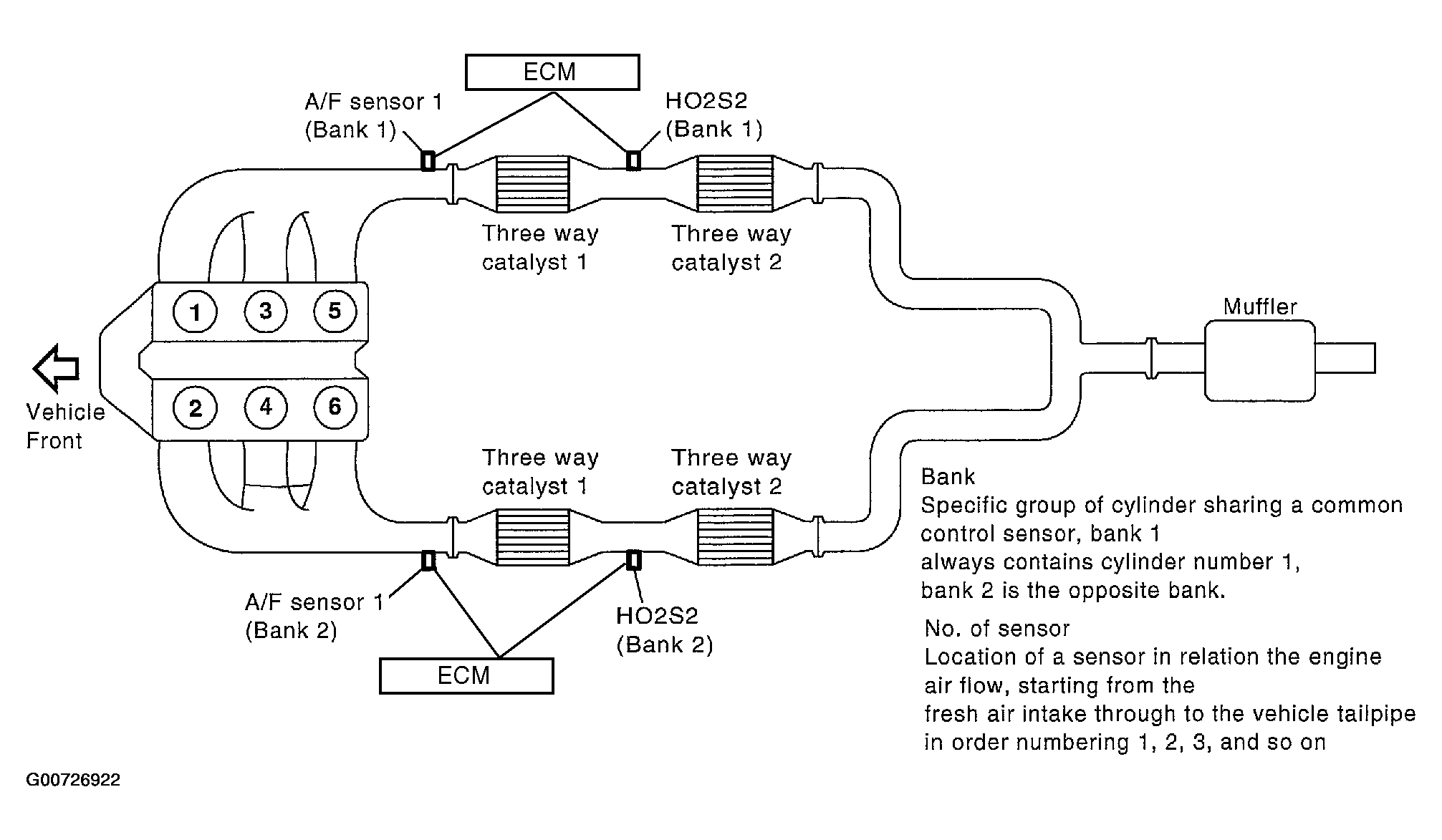

Fig 1: Locating Engine Control Components (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Engine Control Components (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Locating Engine Control Components (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Locating Engine Control Components (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Locating Engine Control Components (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Locating Engine Control Components (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Locating Engine Control Components (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
