CLSD THL Pos, ACCEL Sen 1, THRTL Sen 1

Below is the data for CLSD THL POS, ACCEL SEN 1 and THRTL SEN 1 when depressing the accelerator pedal with the ignition switch ON and with selector lever in D position.

The signal of ACCEL SEN 1 and THRTL SEN 1 should rise gradually without any intermittent drop or rise after CLSD THL POS is changed from ON to OFF.

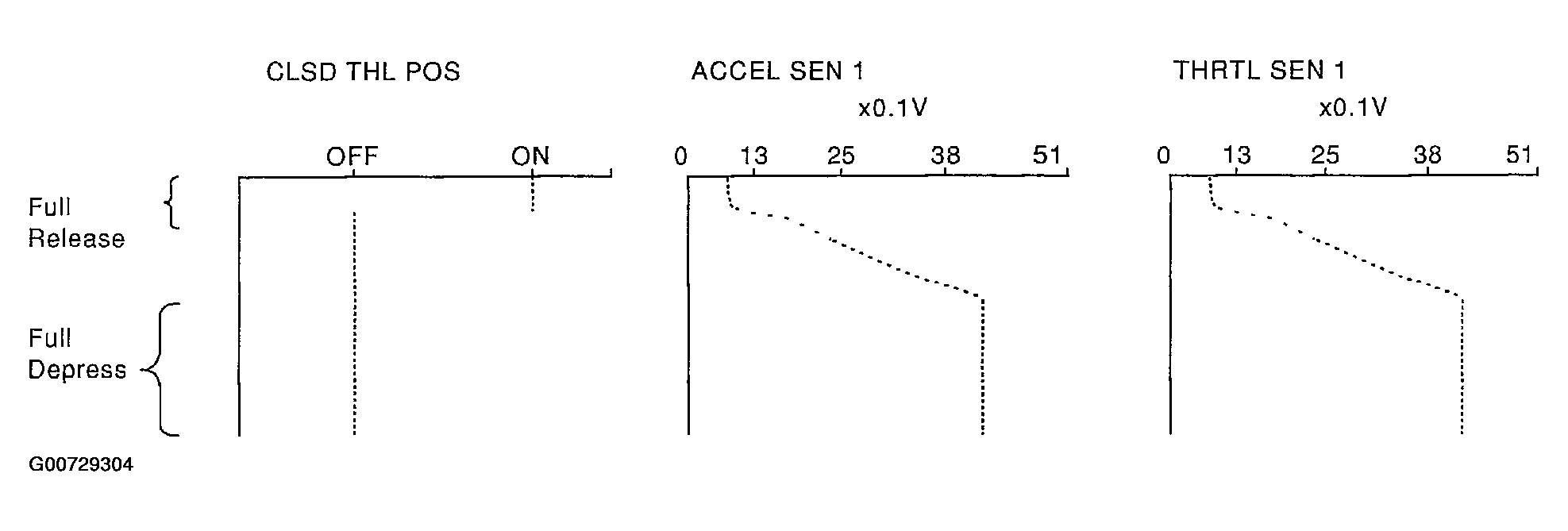

Fig 1: Identifying Signal Graphs For THL POS, ACC POS & THRTL SEN 1

Courtesy of NISSAN MOTOR CO., U.S.A.
