Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated in Fig 1.

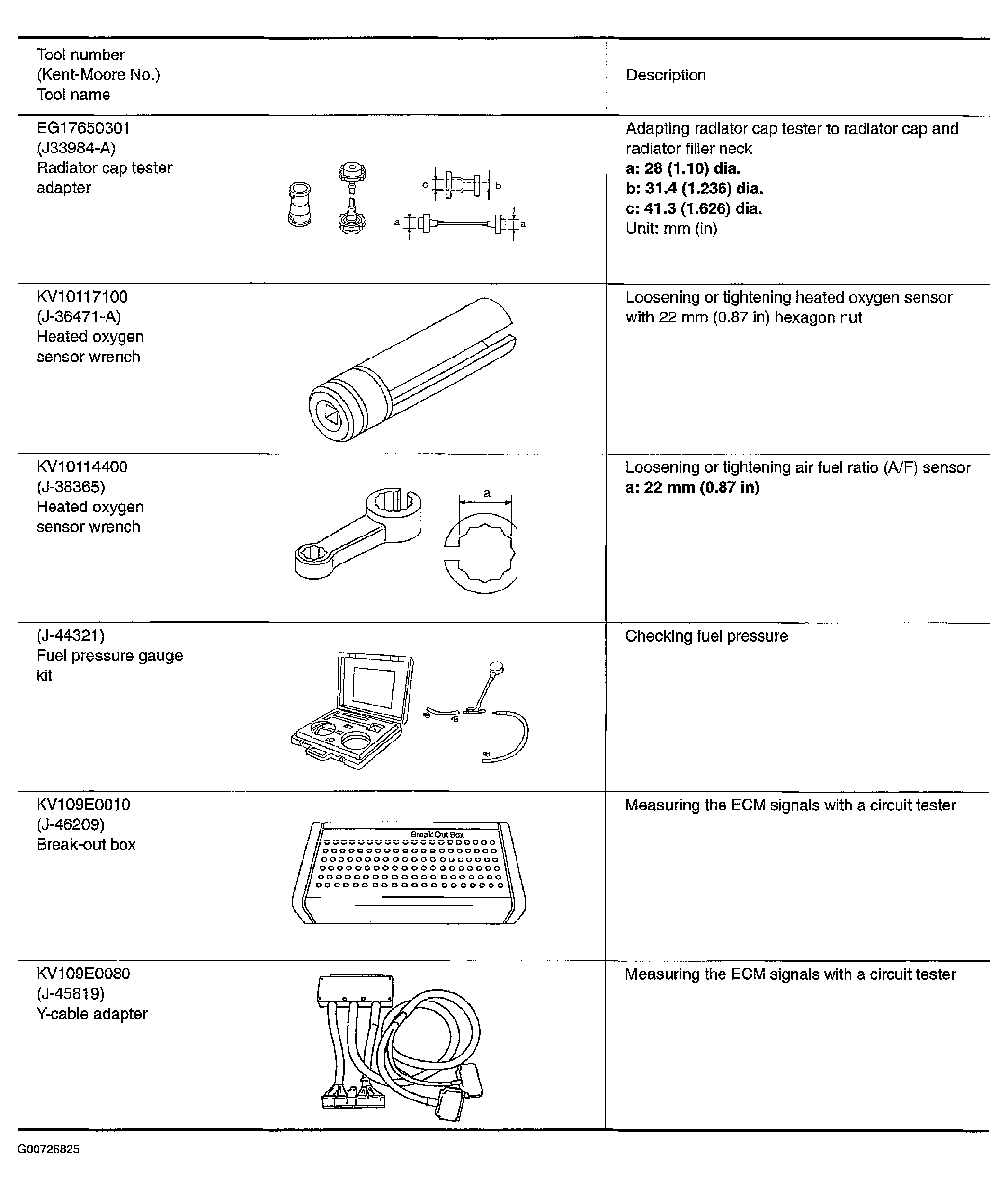

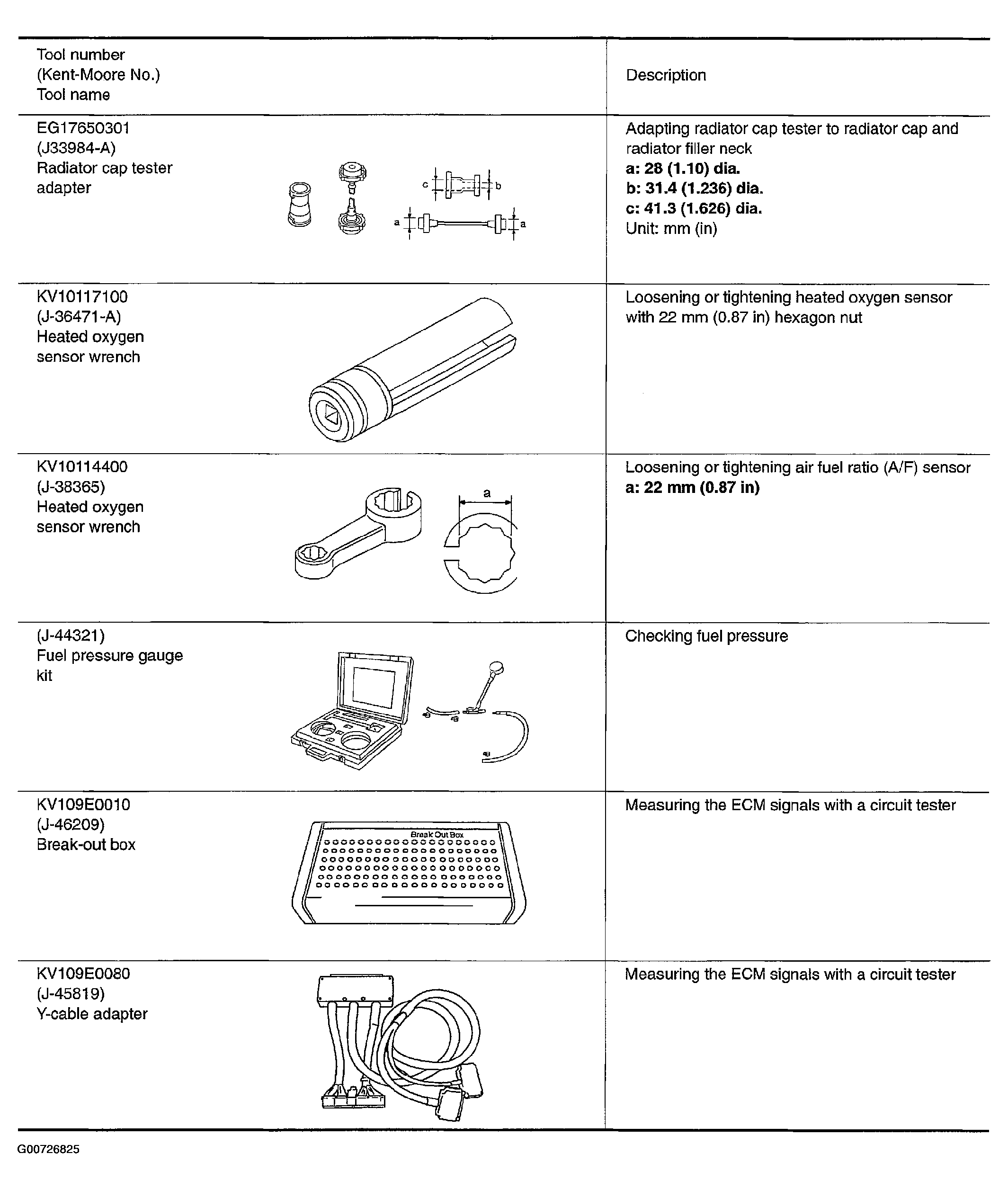

Fig 1: Identifying Manufacture Recommended Special Service Tools

Courtesy of NISSAN MOTOR CO., U.S.A.
