Flow Chart
NOTE:
Steps called out in
Fig 1
are identified in
Fig 2
.

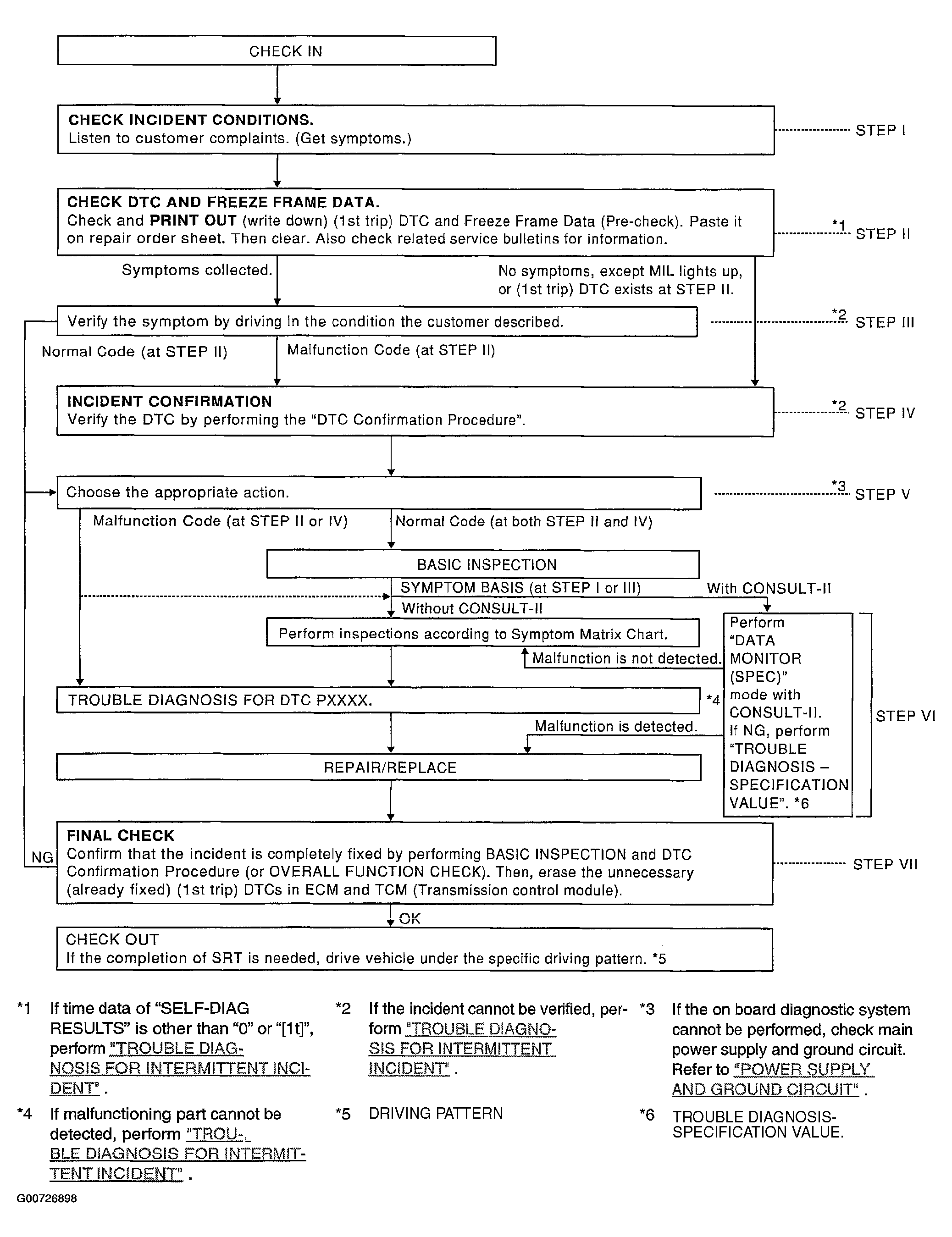

Fig 1: Diagnostic Procedure Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

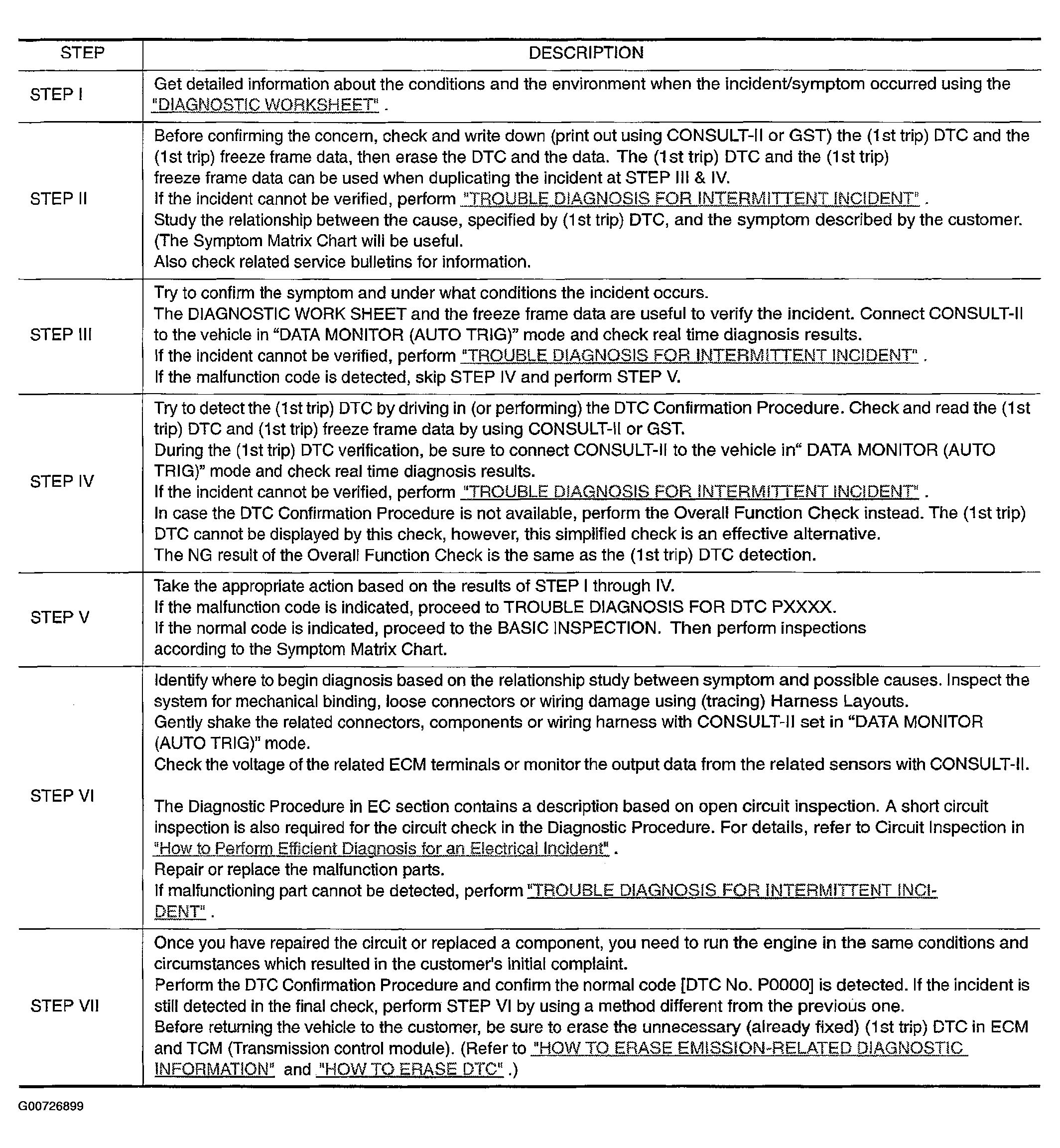

Fig 2: Identifying Diagnostioc Procedure Flow Chart Steps
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
