Method B

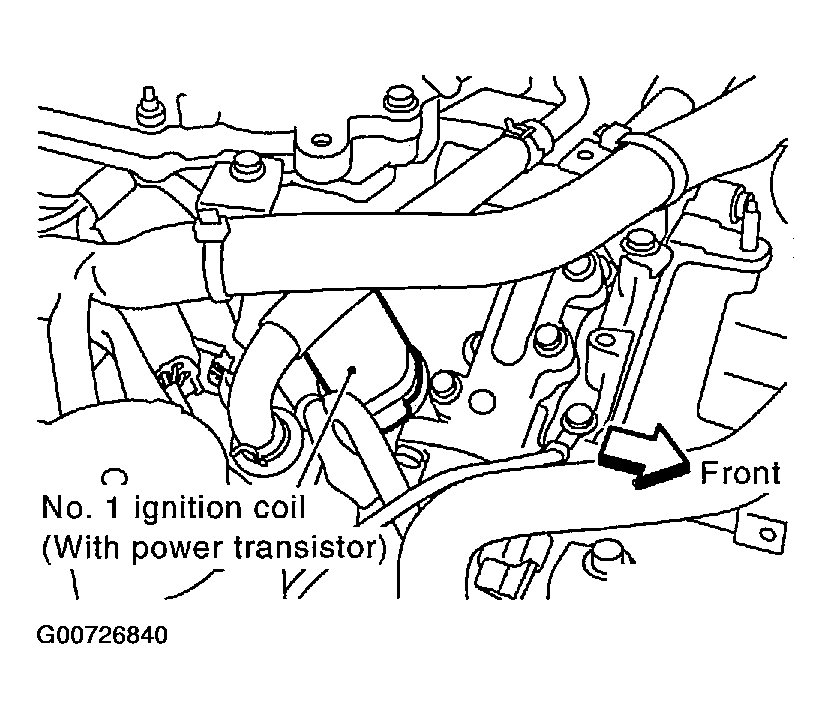

- Remove No. 1 ignition coil.
Courtesy of NISSAN MOTOR CO., U.S.A.

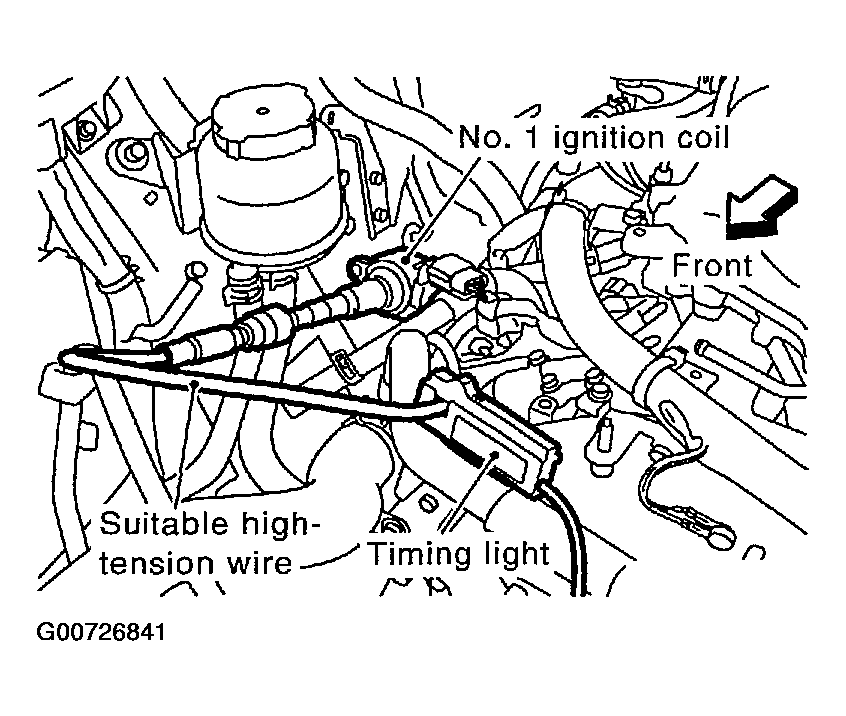

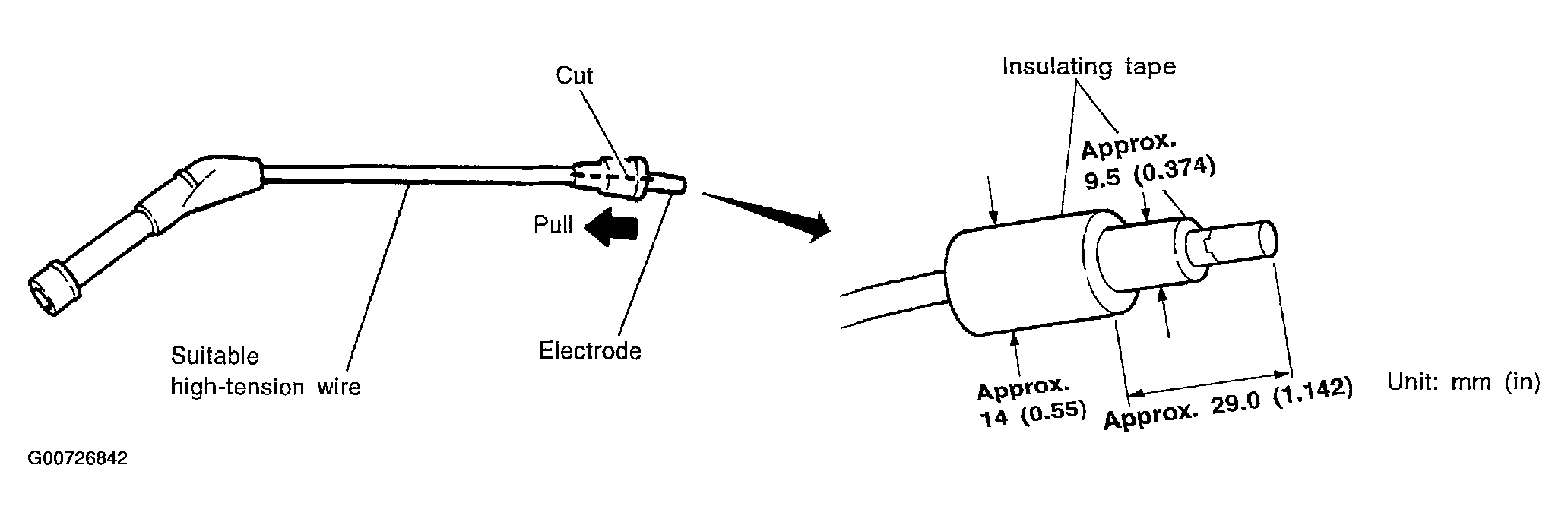

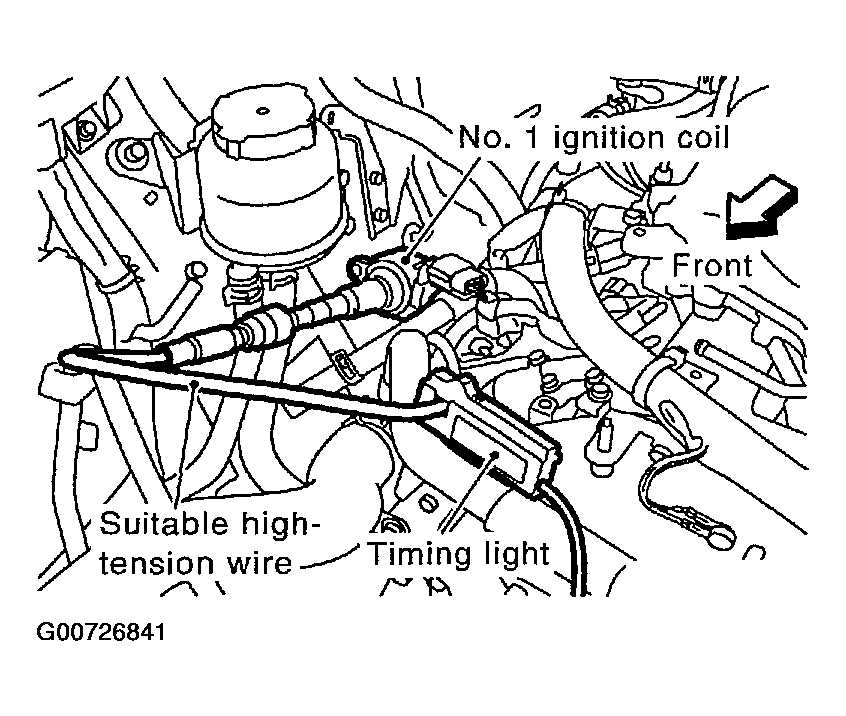

- Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown in Fig 2, and attach timing light clamp to this wire.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Check ignition timing. See Figure.
