CONSULT-II Function: Function

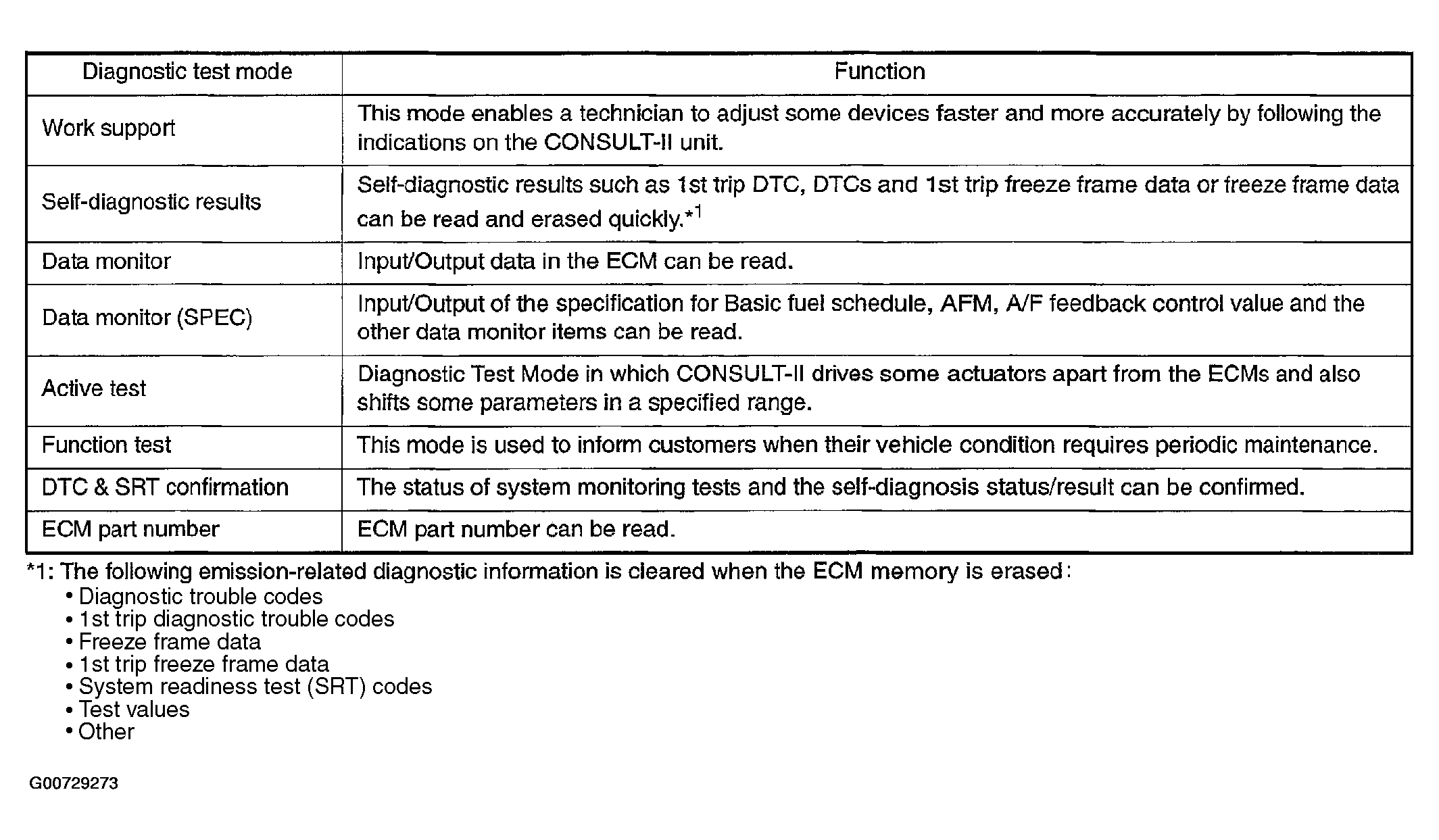

Fig 1: Identifying CONSULT-II Diagnostic Test Modes & Functions
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
