Vacuum Hose Drawing

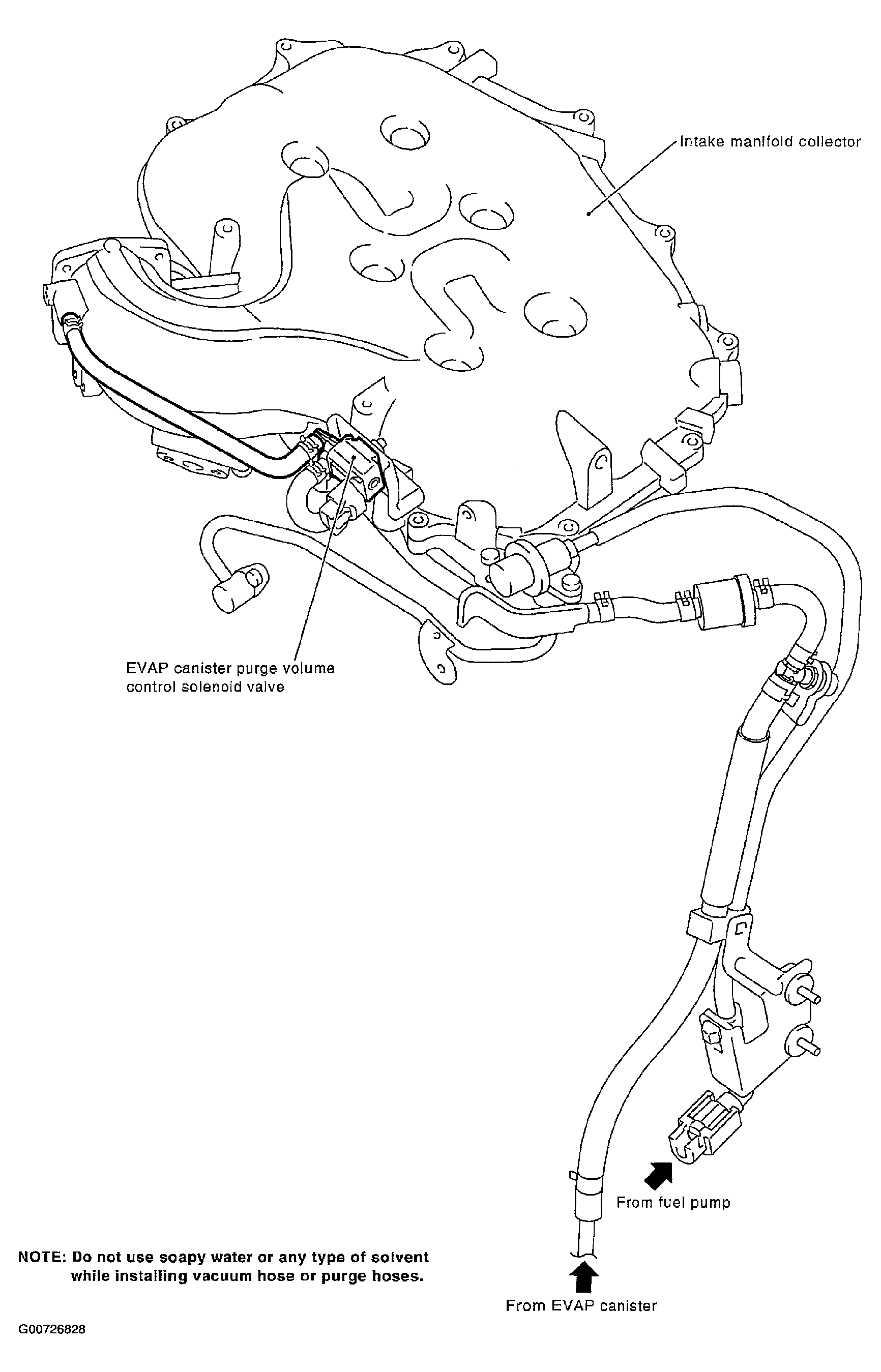

Fig 1: Vacuum Hose Schematic

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

Refer to SYSTEM DIAGRAM for Vacuum Control System.
