CONSULT-II Inspection Procedure: Notes

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit that carries out CAN communication.

Turn ignition switch "ON".
Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector.

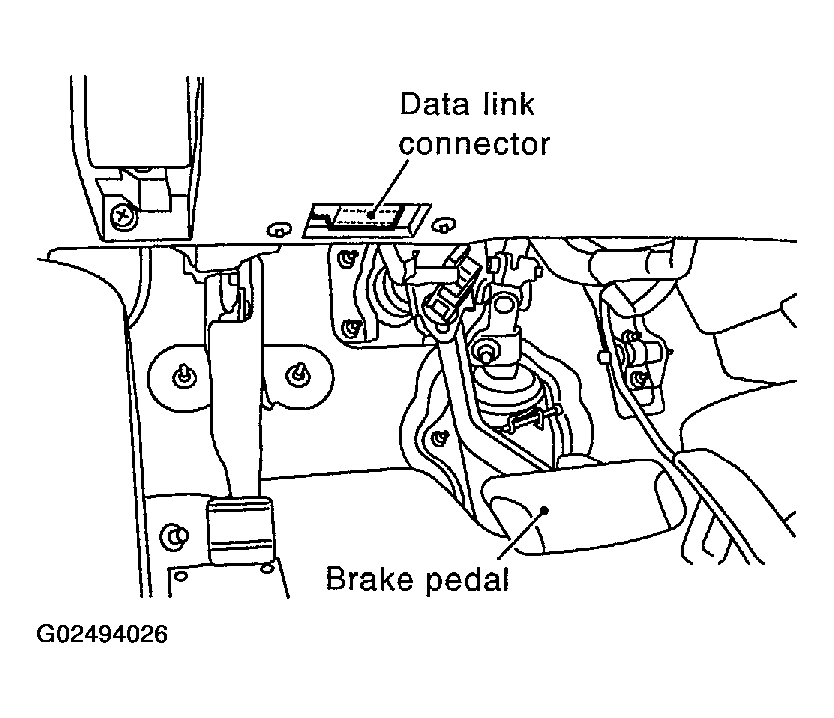

Fig 1: Locating Brake Pedal & Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

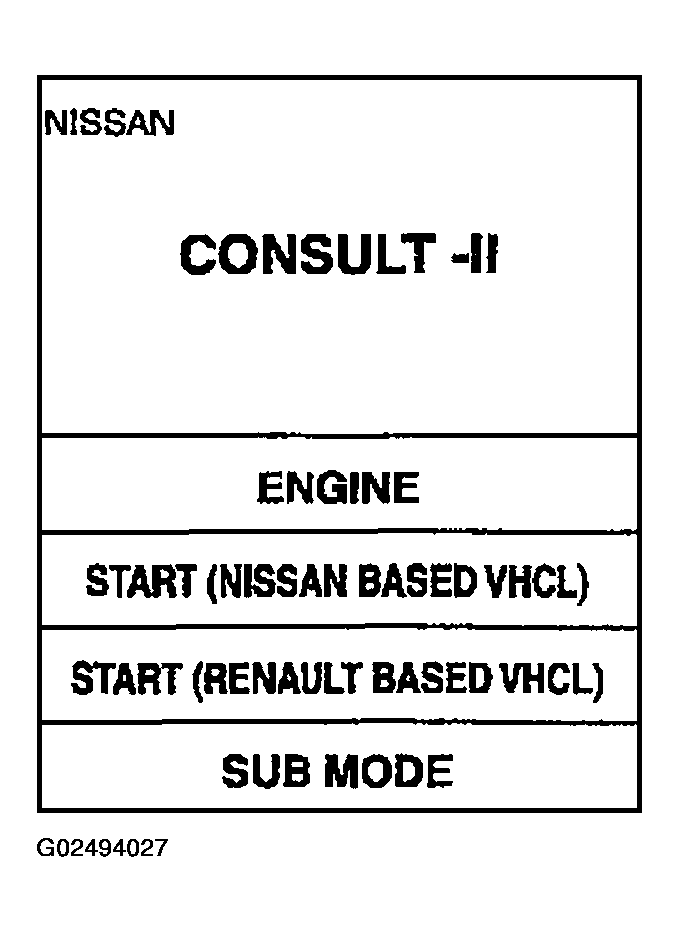

Fig 2: CONSULT-II Main Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

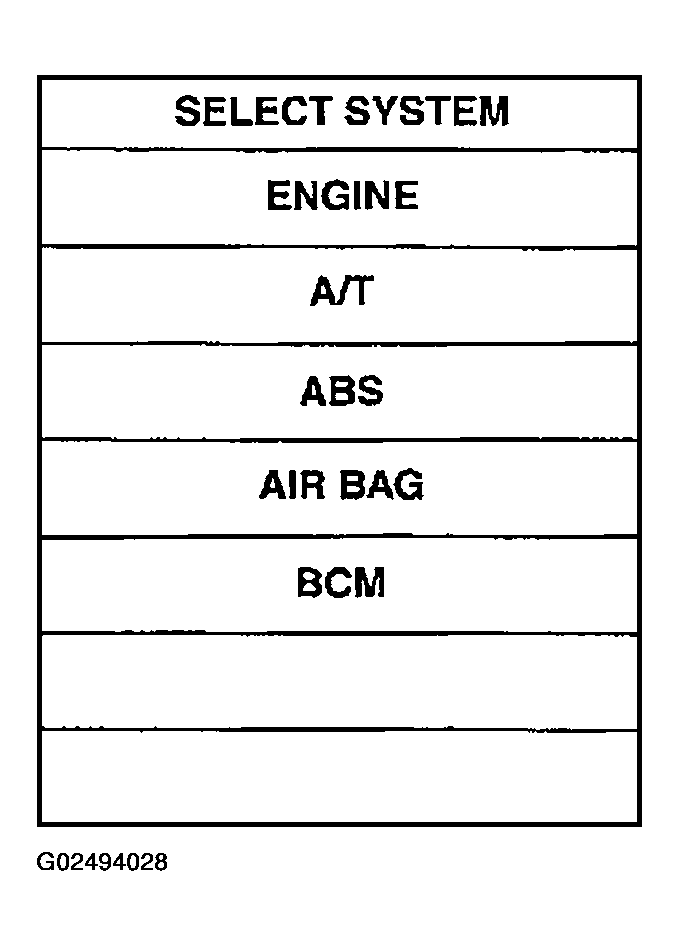

Fig 3: CONSULT-II System Select Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

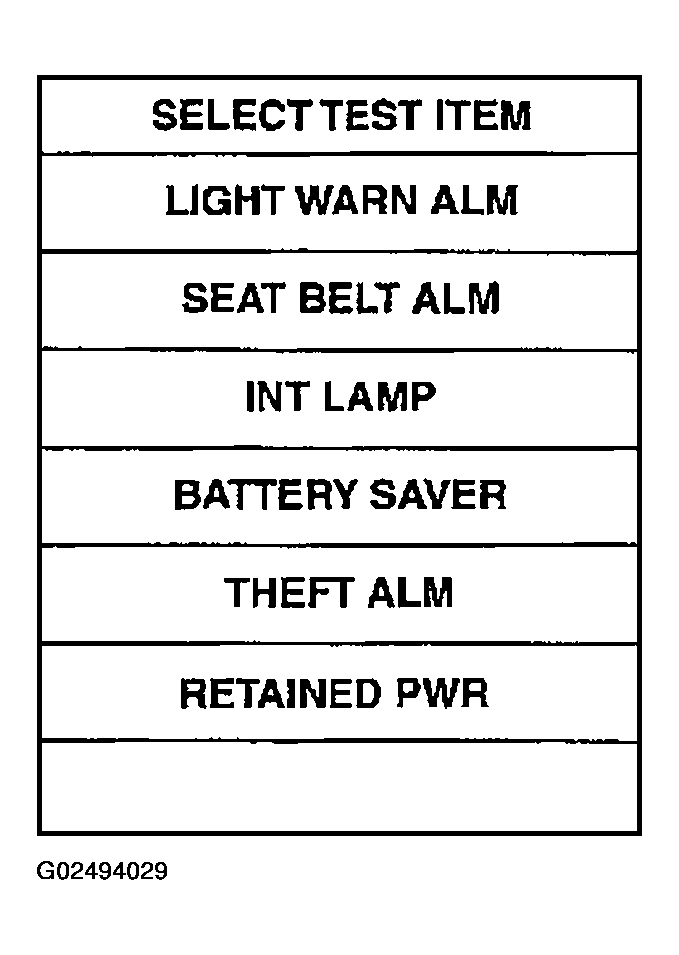

Fig 4: CONSULT-II Test Item Selection Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"ACTIVE TEST", "WORK SUPPORT" and "DATA MONITOR" are available.

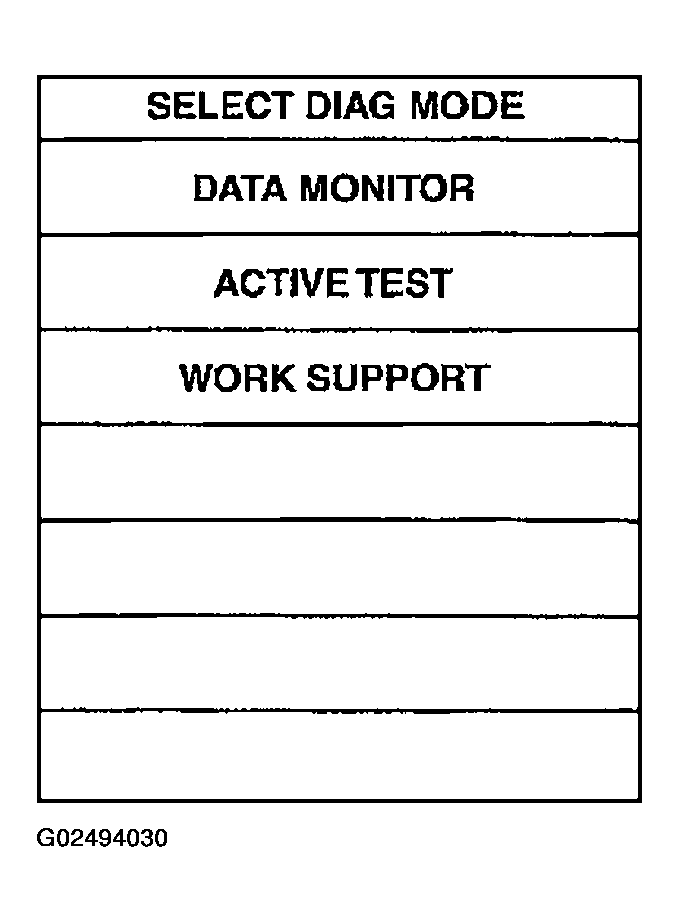

Fig 5: CONSULT-II Diagnosis Mode Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
