Door Switch Check

  1. Check Door Switch Input Signal

    With CONSULT-II

    Check ("DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

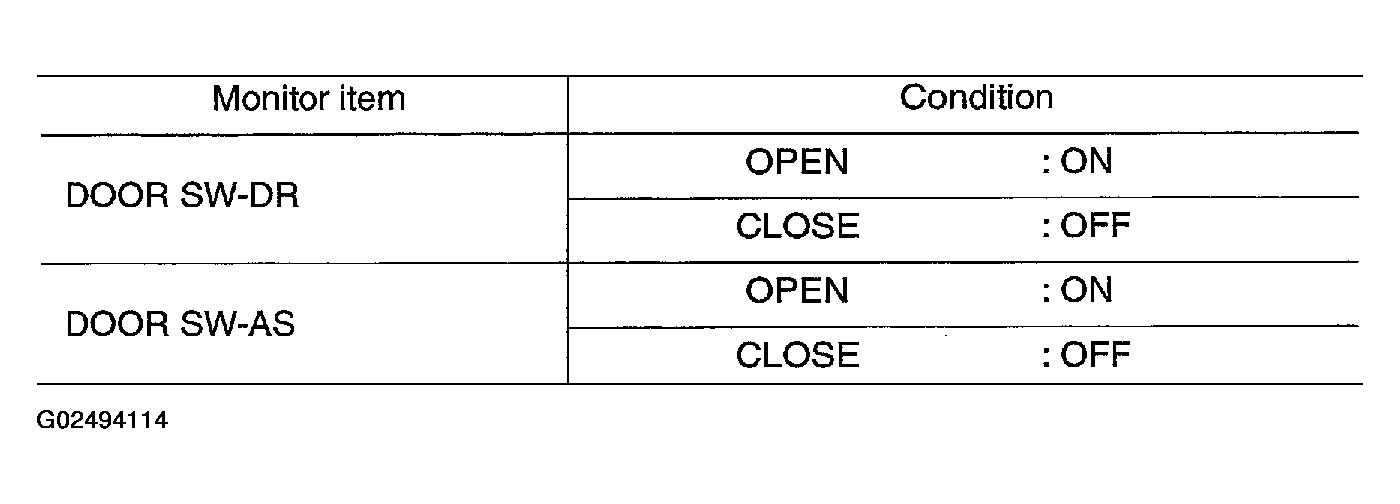

    Fig 1: Identifying Expectable Outputs For Door Switch Status By CONSULT-II
    G02494114Courtesy of NISSAN MOTOR CO., U.S.A.

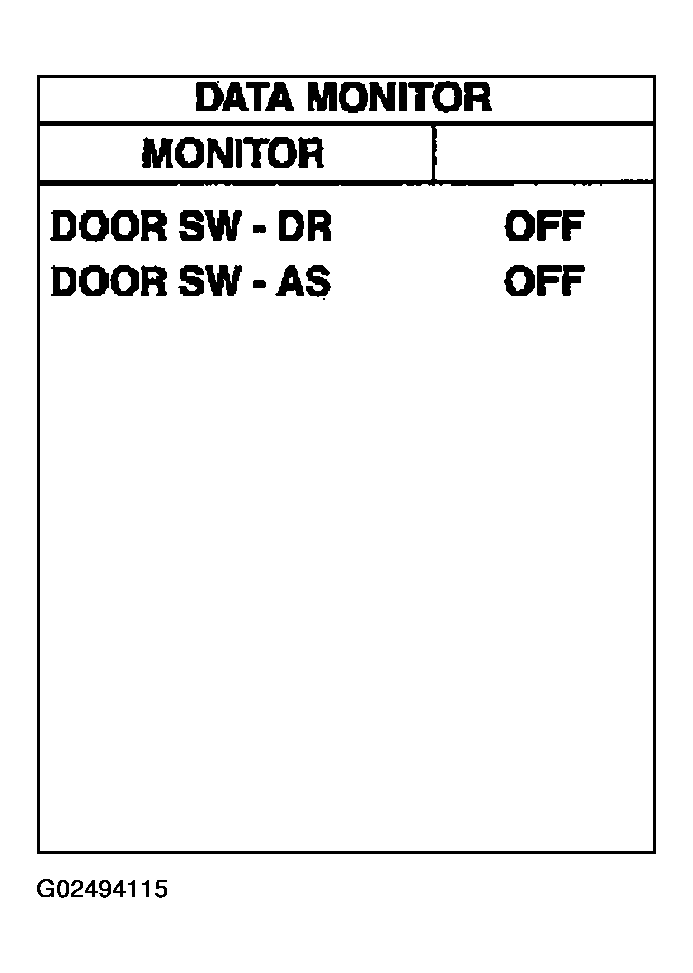

    Fig 2: Displaying Door Switch Status By CONSULT-II In Data Monitor Mode (Indicating Doors Closed)
    G02494115Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM connector M3, B14 terminals 12, 62 and ground.

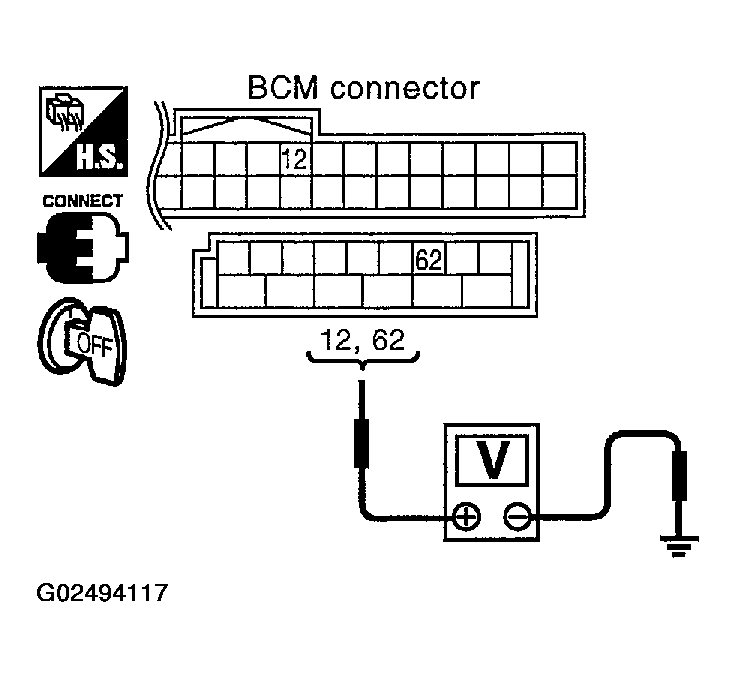

    Fig 3: Testing Door Switches
    G02494117Courtesy of NISSAN MOTOR CO., U.S.A.

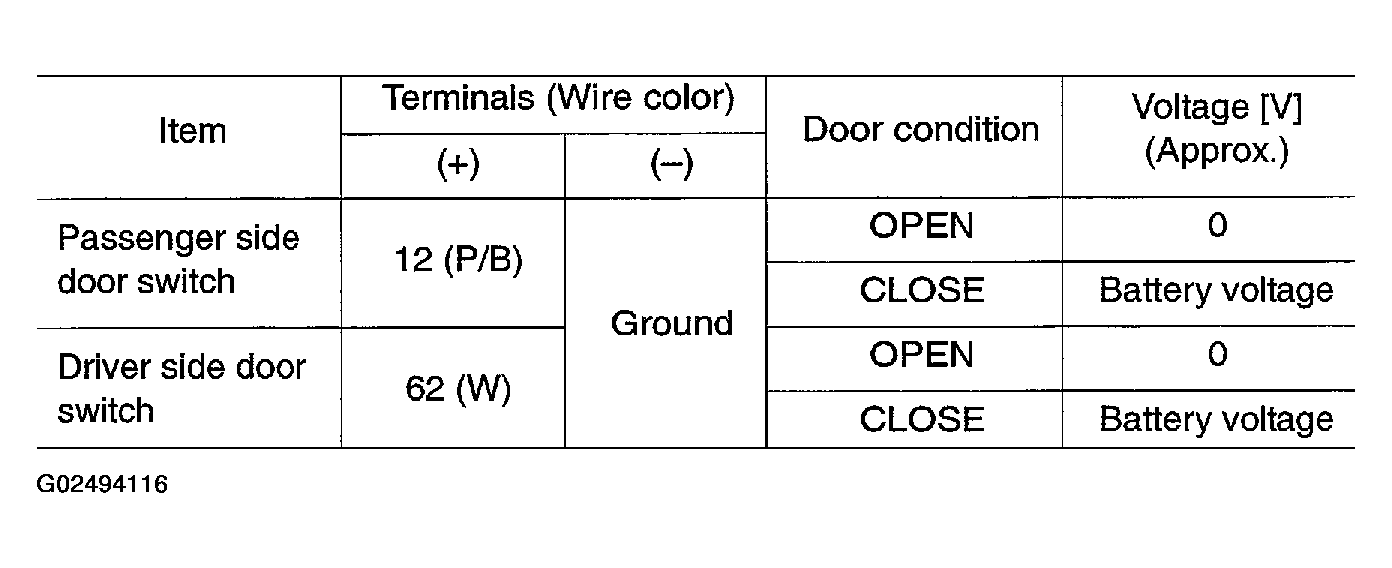

    Fig 4: Identifying Door Switch Specifications
    G02494116Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Door switch is OK.
    2. NG: Go to 2.
  2. Check Harness Continuity
    1. Turn ignition switch OFF.
    2. Disconnect door switch and BCM connector.
    3. Check continuity between BCM connector M3, B14 terminals 12, 62 and door switch connector B26, B36 terminal 1.

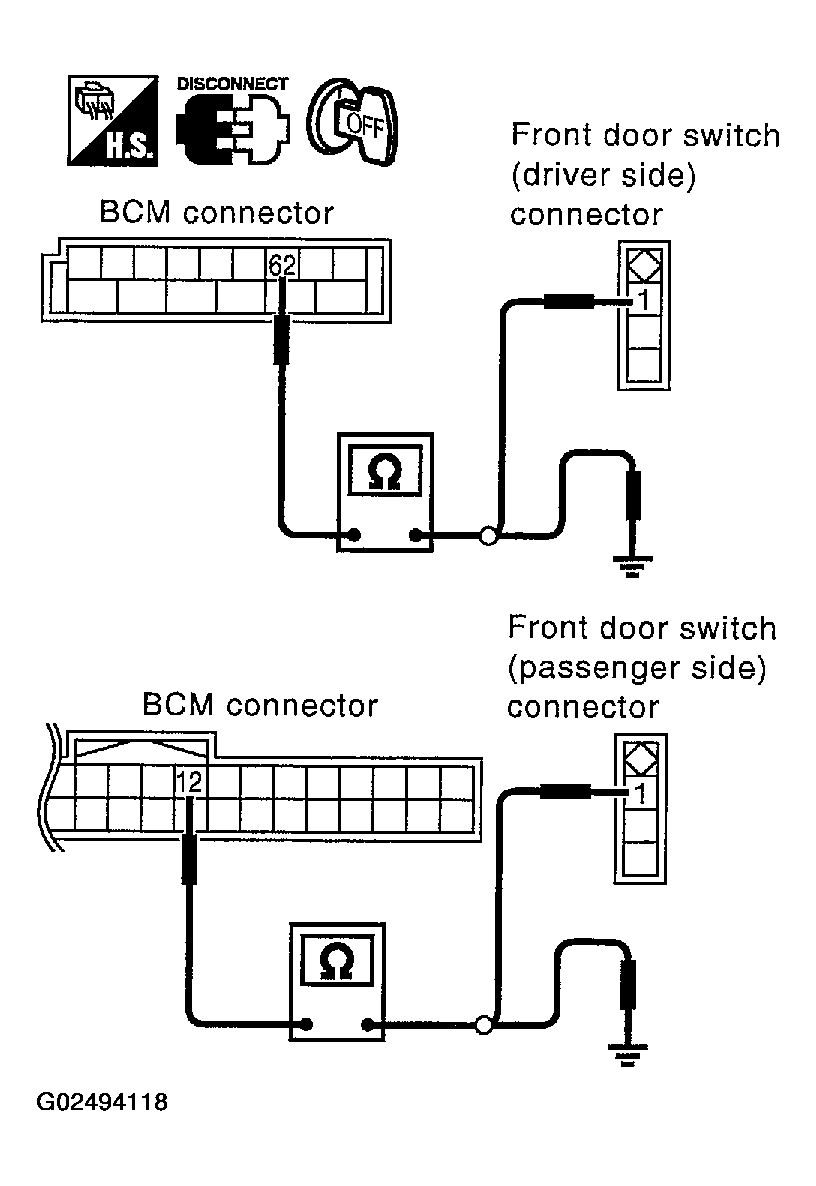

      Fig 5: Testing BCM To Left & Right Side Front Door Switch Circuits
      G02494118Courtesy of NISSAN MOTOR CO., U.S.A.

      Driver side door

      62 (W) -1 (W): Continuity should exist  .

      Passenger side door

      12 (P/B) -1 (SB): Continuity should exist  .

    4. Check continuity between BCM connector M3, B14 terminals 12, 62 and ground.

      12 (P/B) - Ground: Continuity should not exist  .

      62 (W) - Ground: Continuity should not exist  .

    OK or NG

    1. OK: Go to 3.
    2. NG: Repair or replace harness.

  3. Check Door Switch

    Check continuity between door switches terminal 1 and ground part of door switch.

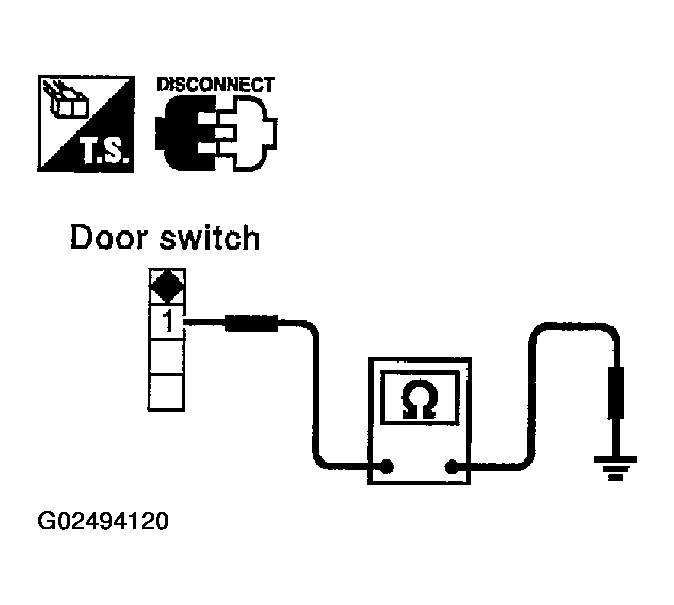

    Fig 6: Checking Continuity Door Switch Terminals To Ground
    G02494120Courtesy of NISSAN MOTOR CO., U.S.A.

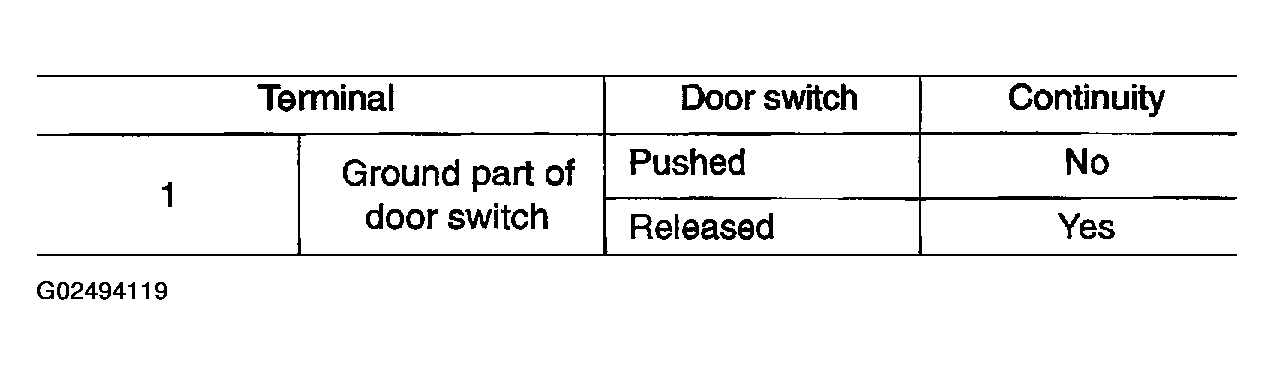

    Fig 7: Door Switch Grounding Specifications
    G02494119Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Go to 4.
    2. NG: Replace malfunction door switch.

  4. Check BCM Output Signal
    1. Connect BCM connector.
    2. Check voltage between BCM connector M3, B14 terminals 12, 62 and ground.

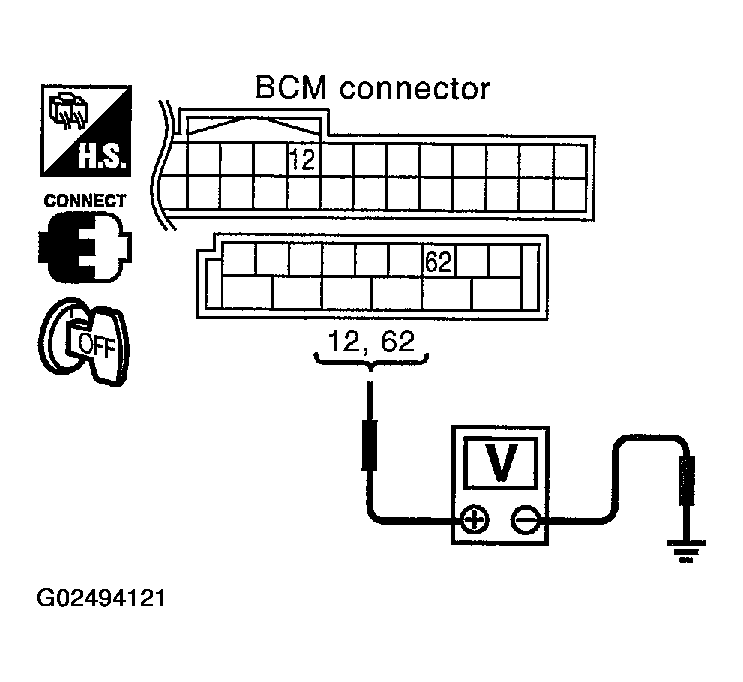

      Fig 8: Checking Voltage At BCM Terminals 12 & 62
      G02494121Courtesy of NISSAN MOTOR CO., U.S.A.

      12 (P/B) - Ground: Battery voltage

      62 (W) - Ground: Battery voltage

    OK or NG

    1. OK: Further inspection is necessary, Refer to symptom chart.
    2. NG: Replace BCM.
