Removal And Installation: Removal

  1. Remove center console. Refer to CENTER CONSOLE .
  2. Disconnect G-sensor harness connector.
  3. Remove G-sensor mounting bolts. Then remove G-sensor from vehicle.

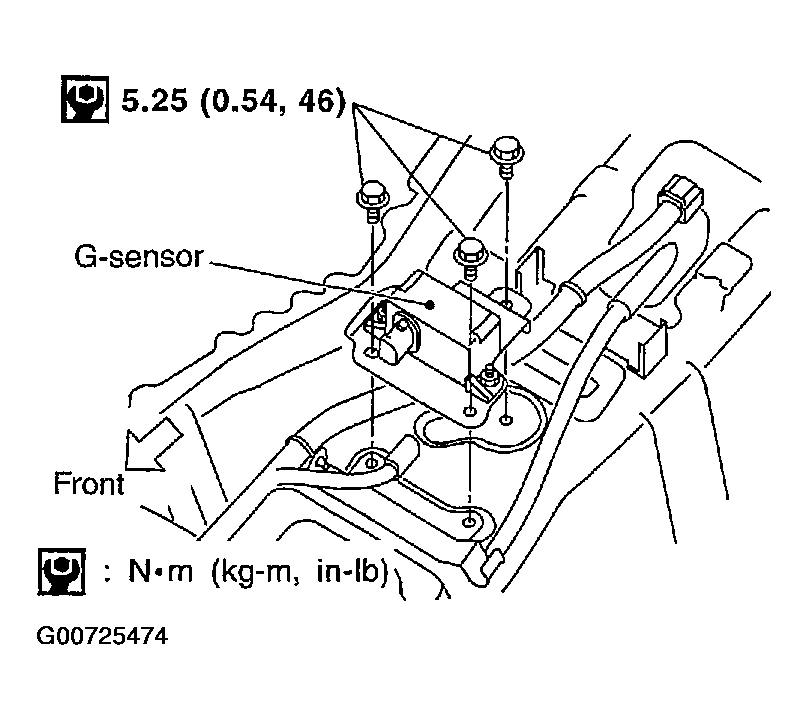

    Fig 1: Locating G Sensor
    G00725474Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not drop or strike G-sensor, because it has little endurance to impact.
  • Do not use power tool etc., because G-sensor is weak for the impact.
