Component Installation Location

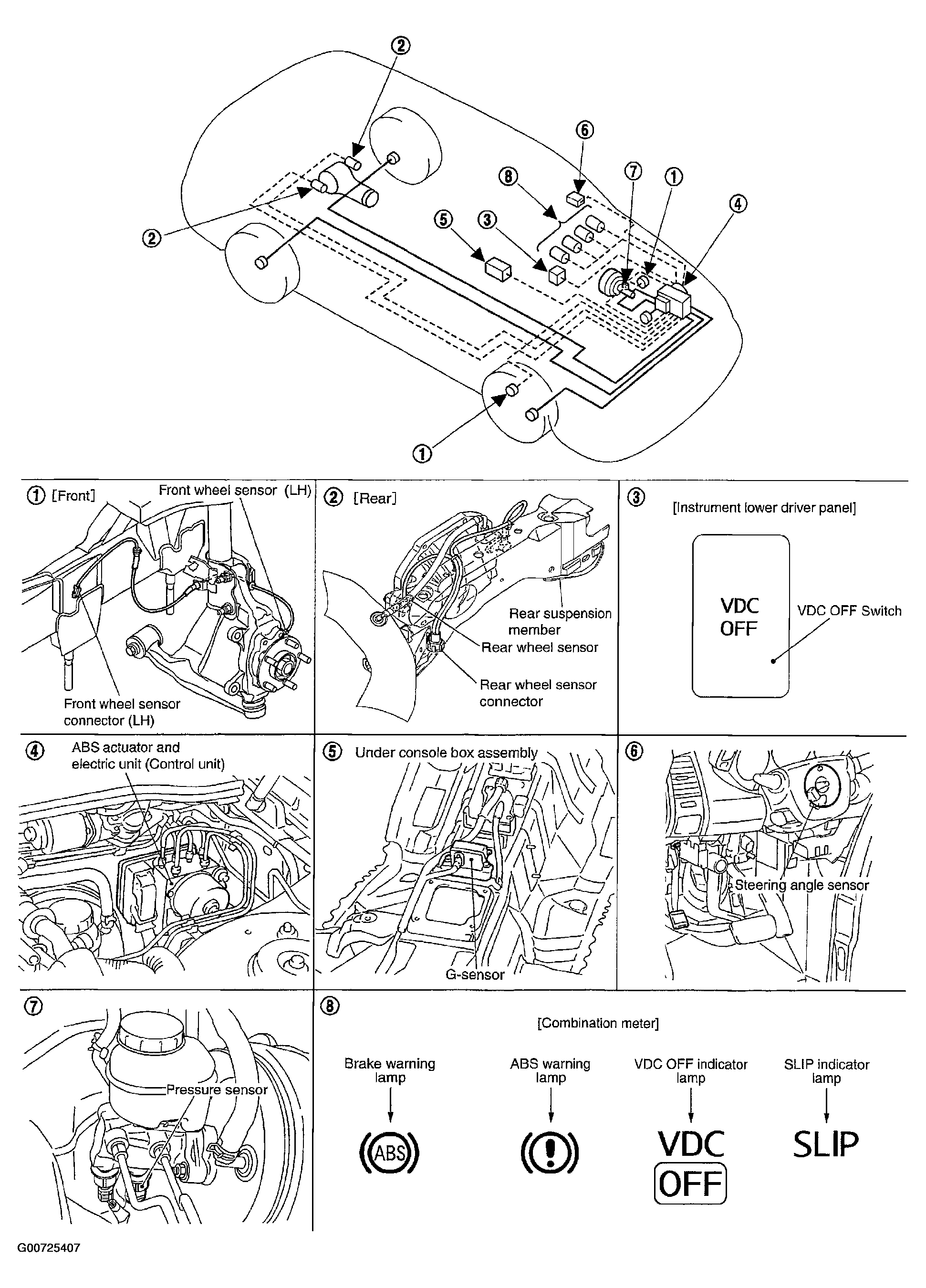

Fig 1: Locating Brake Control System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
