CONSULT-II Function Application Table (Main Items)

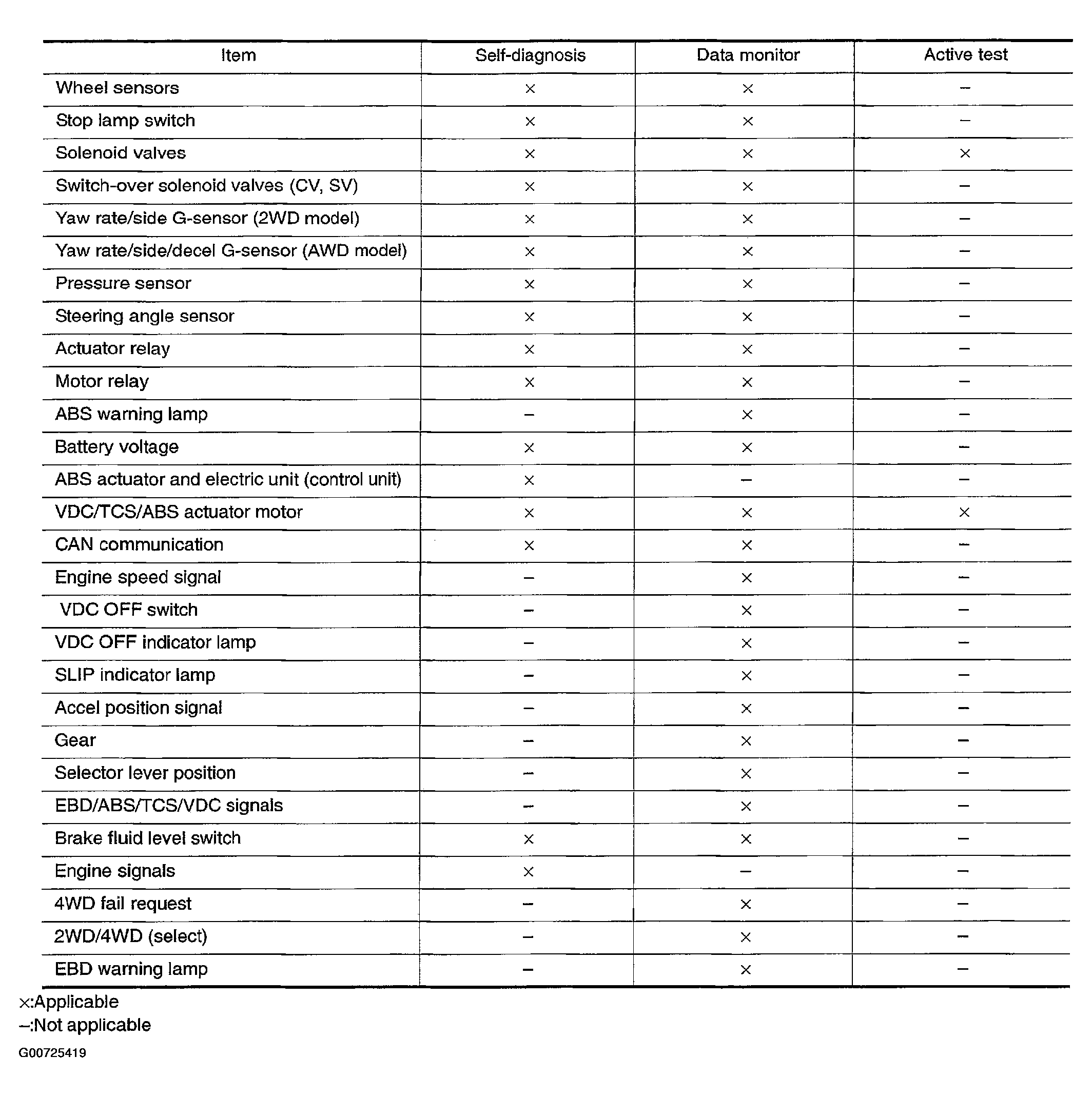

Fig 1: Displaying CONSULT-II Function Application
G00725419Courtesy of NISSAN MOTOR CO., U.S.A.
