Reference Value From CONSULT-II

NOTE: The display shows ABS actuator and electric unit (control unit) calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short-circuited.

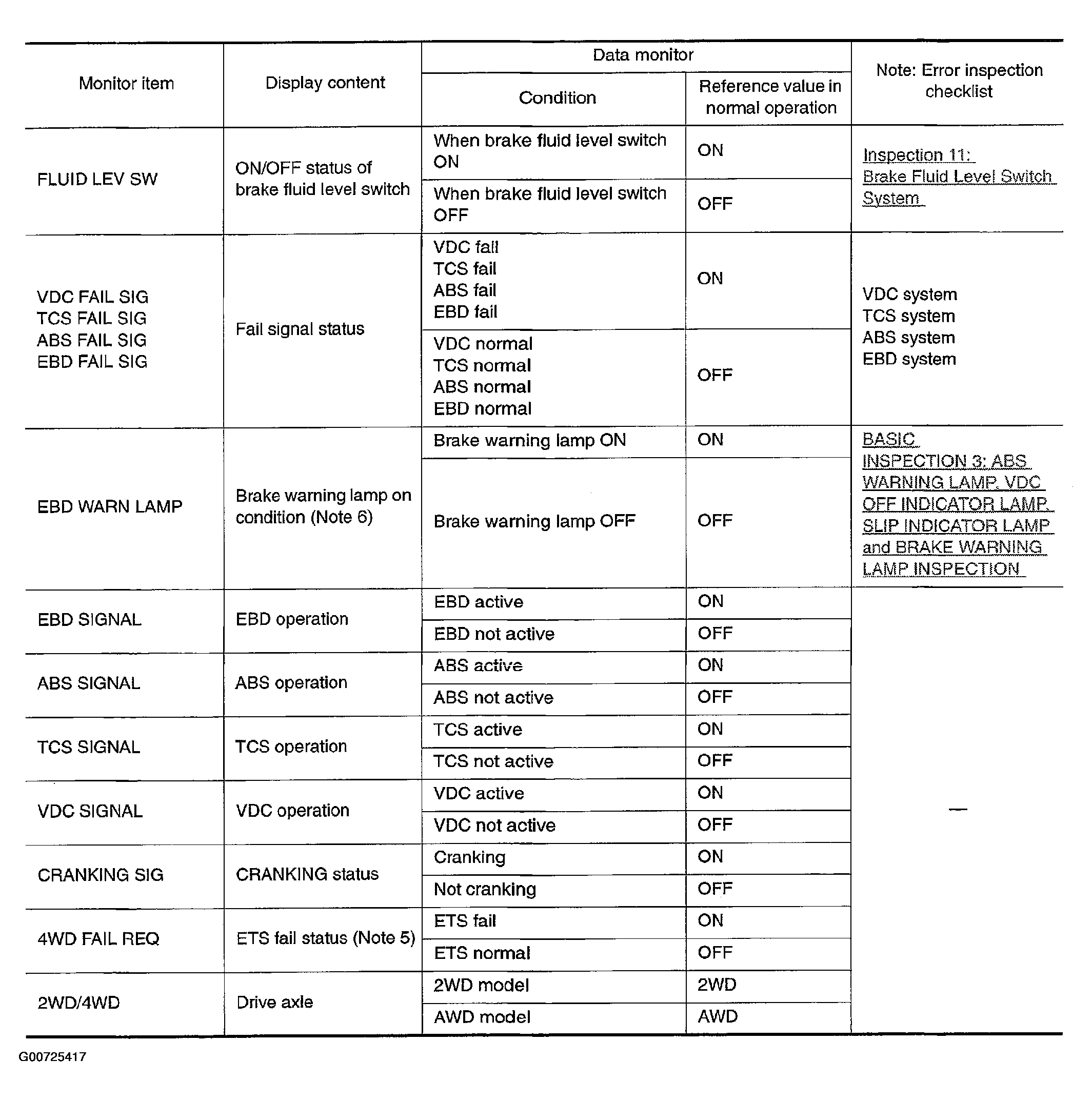

Fig 1: Identifying Control Unit Input/Output Signals & Values (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

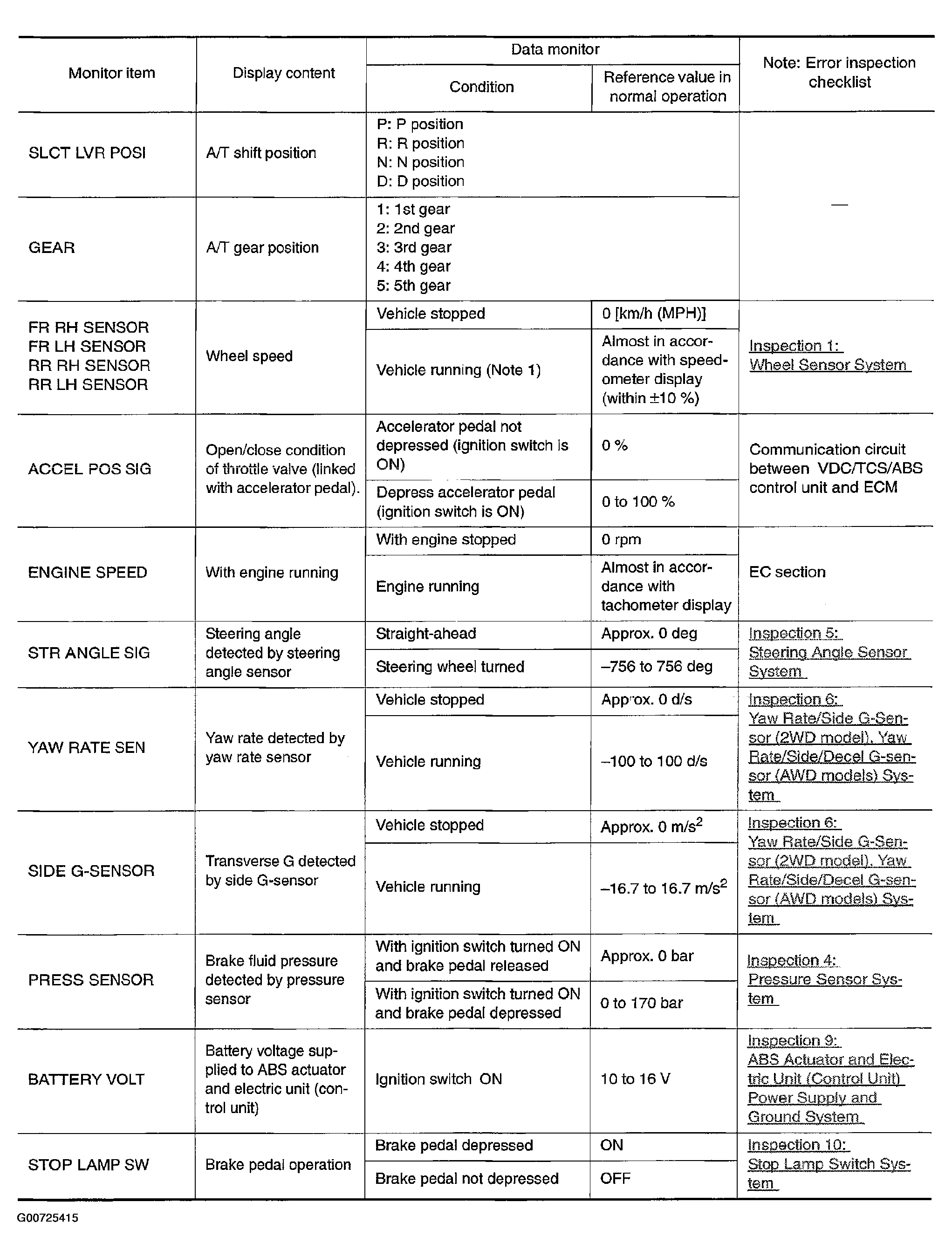

Fig 2: Identifying Control Unit Input/Output Signals & Values (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

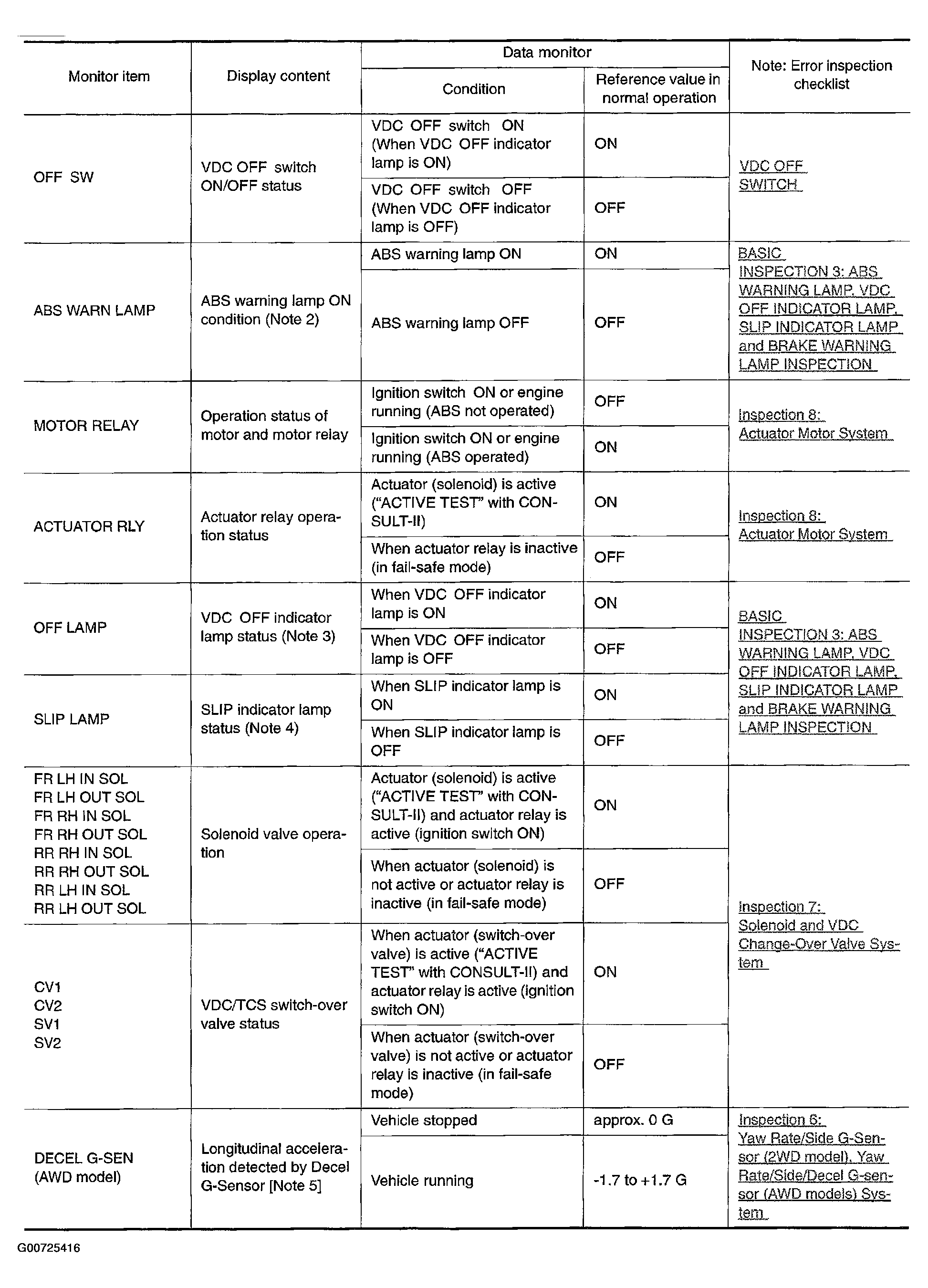

Fig 3: Identifying Control Unit Input/Output Signals & Values (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

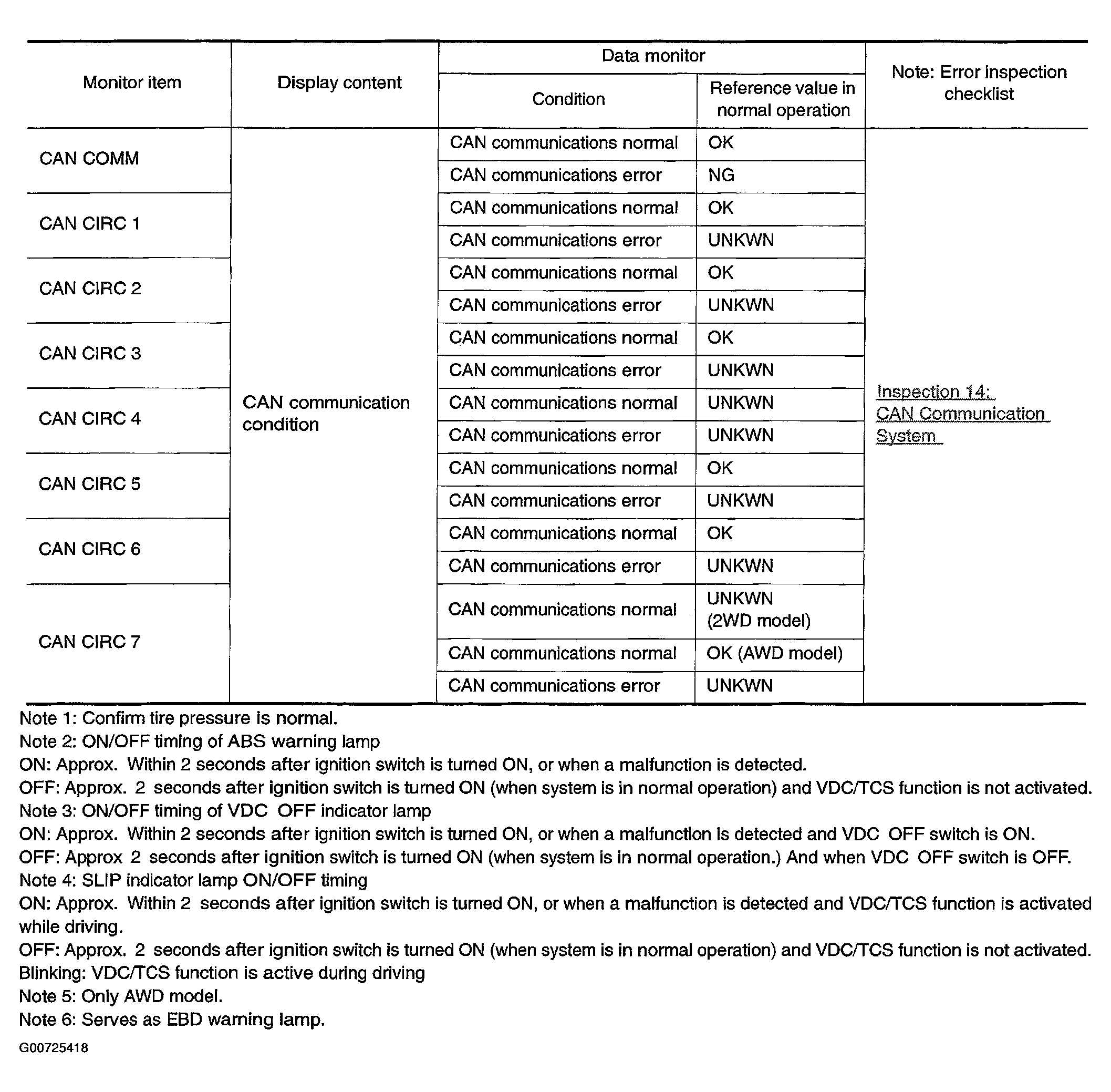

Fig 4: Identifying Control Unit Input/Output Signals & Values (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
