Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

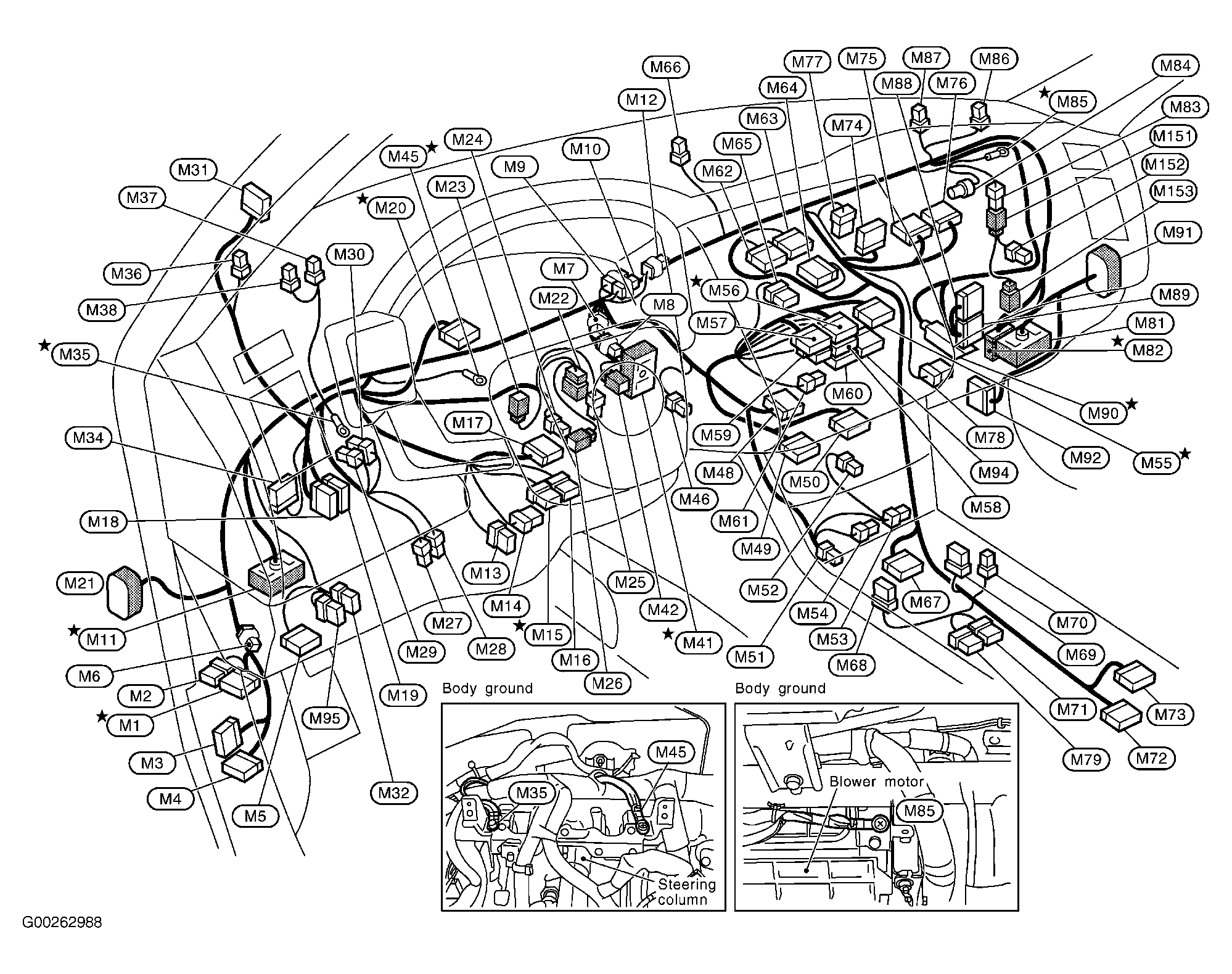

Fig 1: Front Of Passenger Compartment

G00262988

Courtesy of NISSAN MOTOR CO., U.S.A.

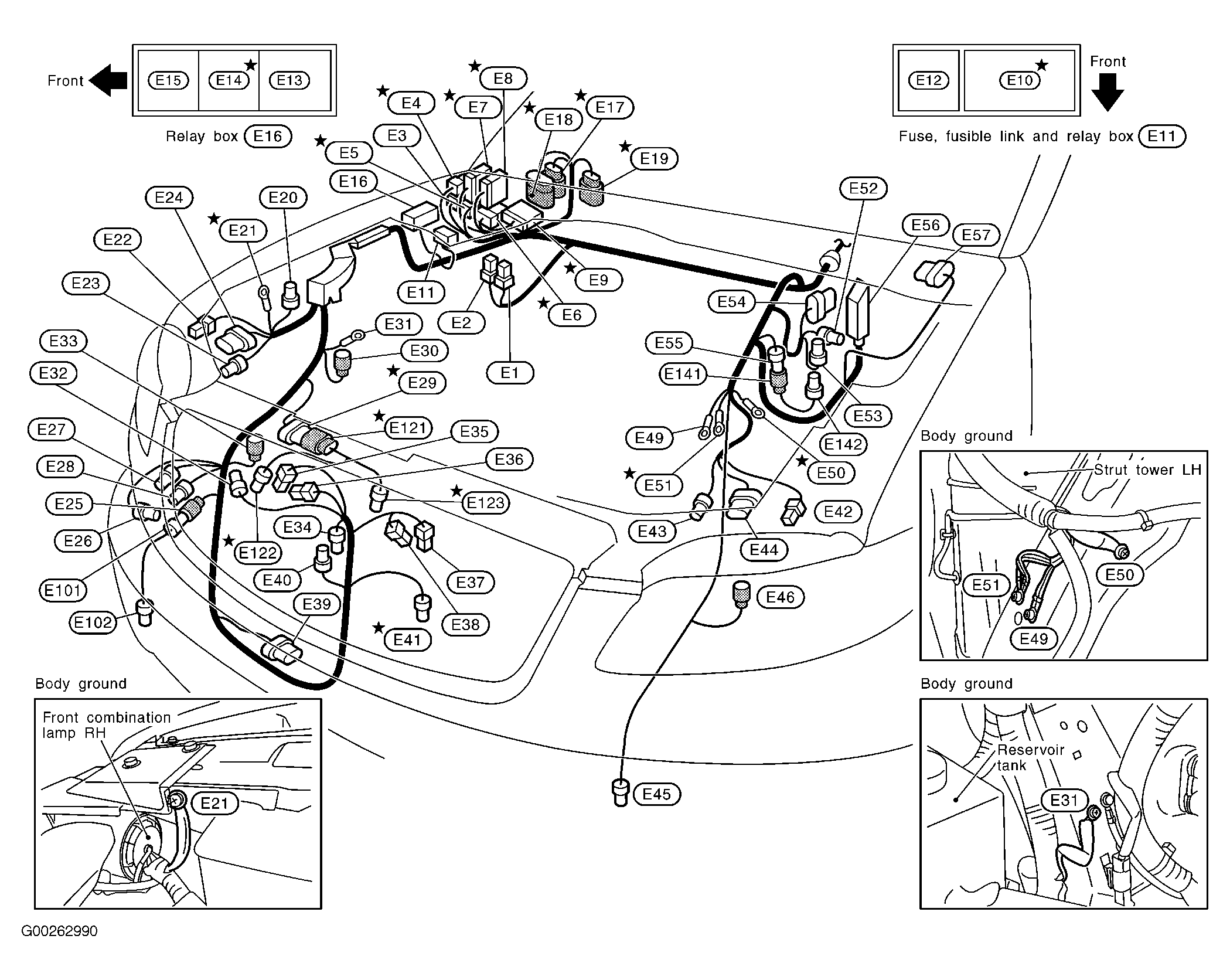

Fig 2: Engine Compartment

G00262990

Courtesy of NISSAN MOTOR CO., U.S.A.

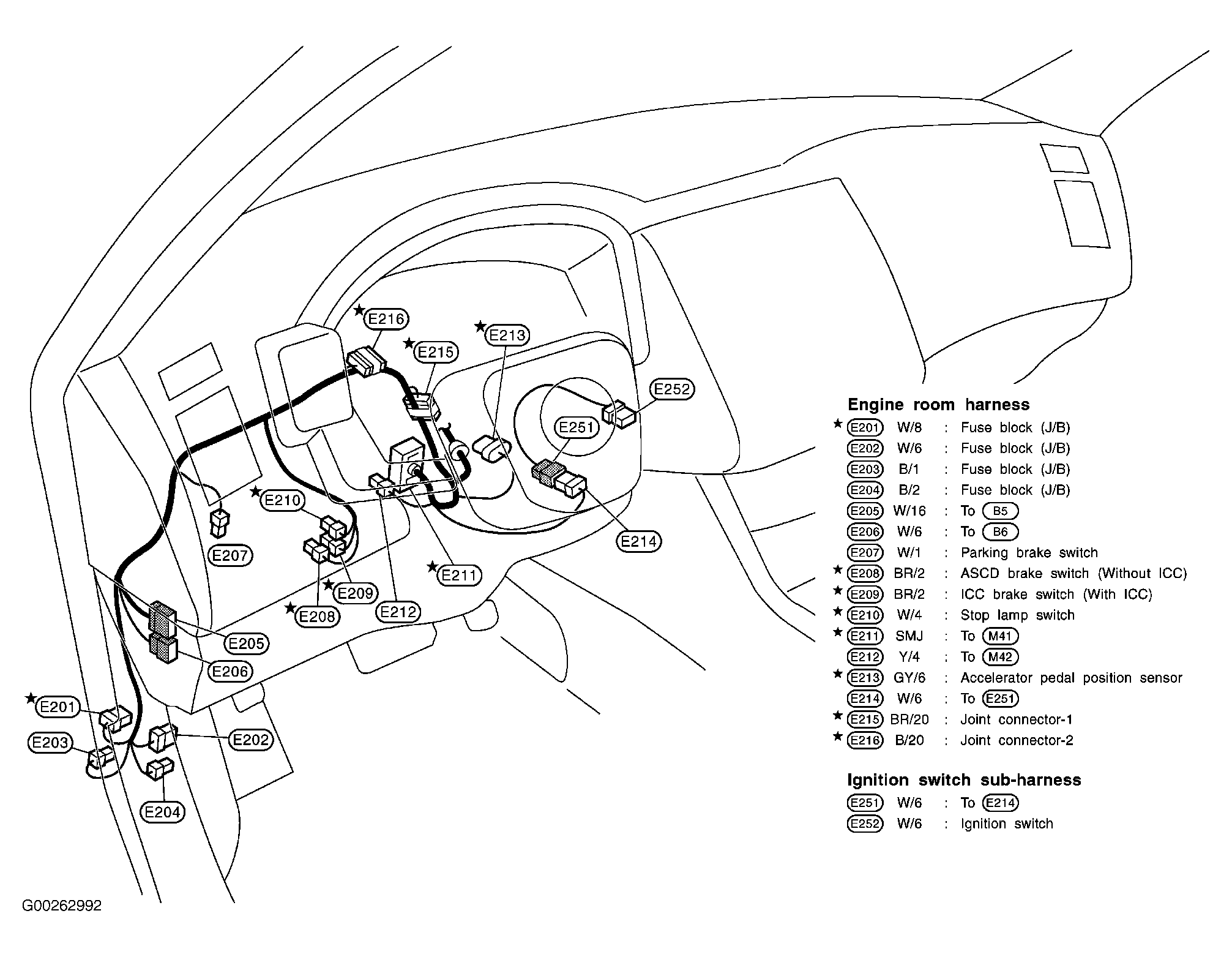

Fig 3: Left Side Of Dash

G00262992

Courtesy of NISSAN MOTOR CO., U.S.A.

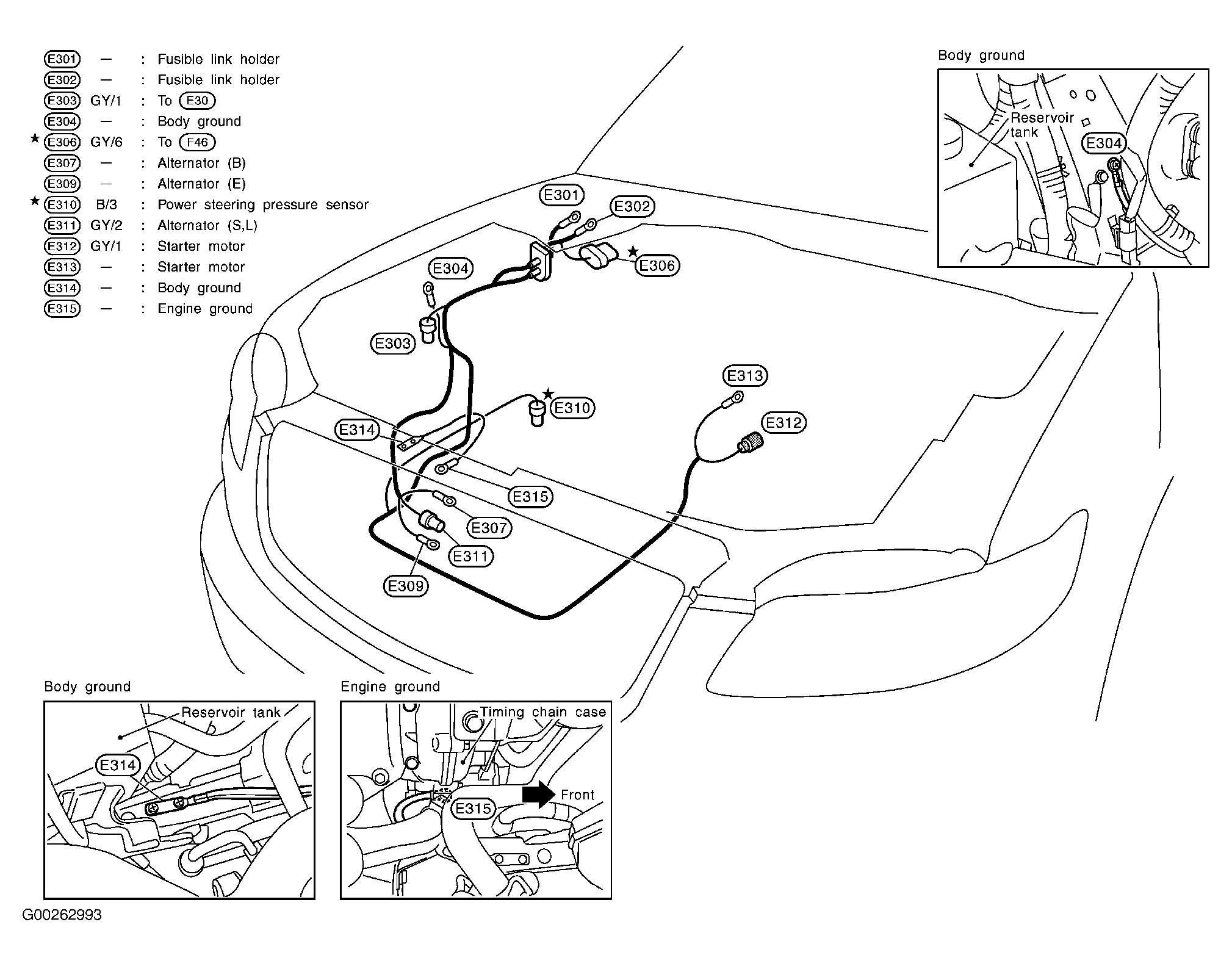

Fig 4: Engine Compartment (4.5L)

G00262993

Courtesy of NISSAN MOTOR CO., U.S.A.

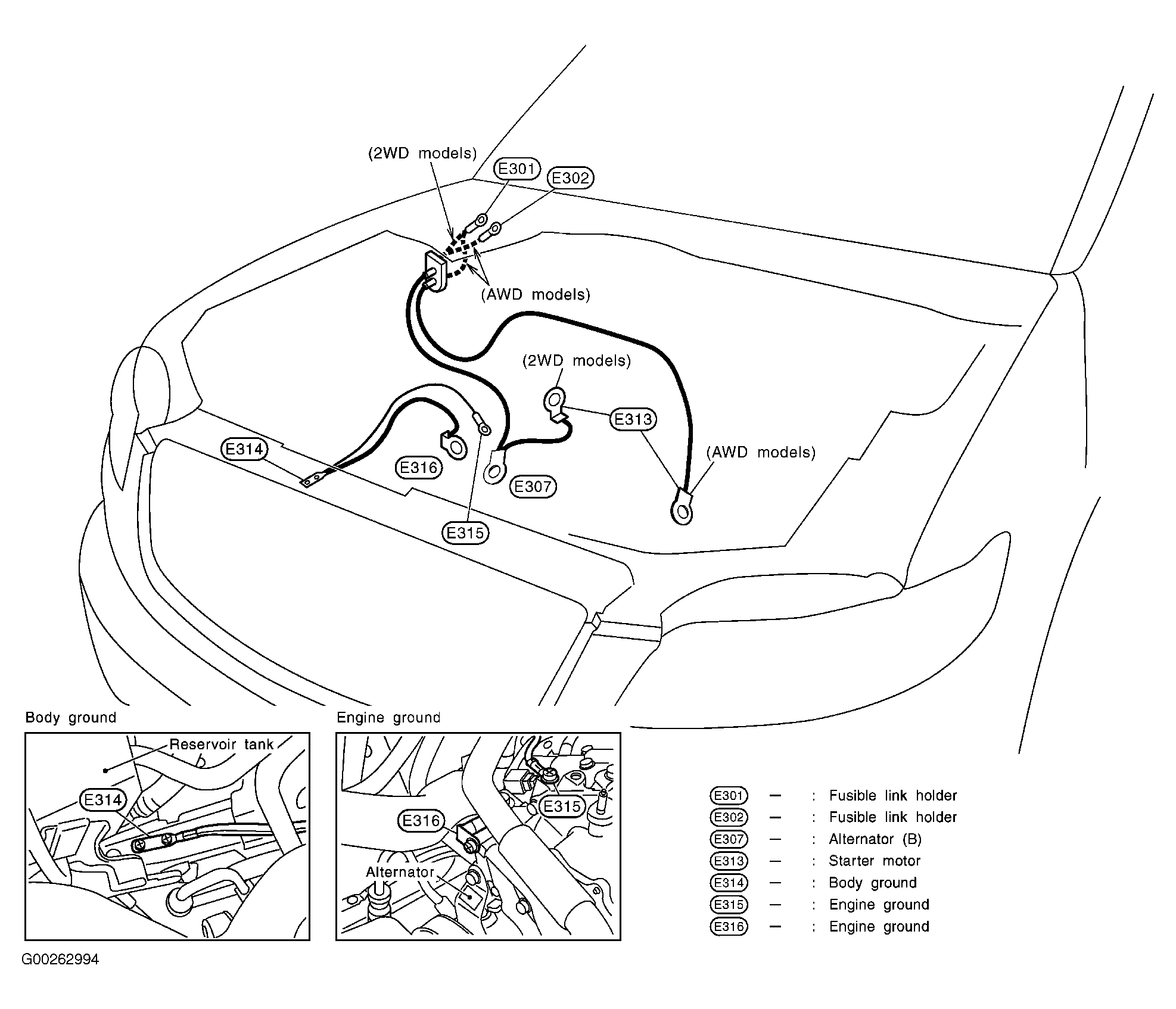

Fig 5: Engine Compartment (3.5L)

G00262994

Courtesy of NISSAN MOTOR CO., U.S.A.

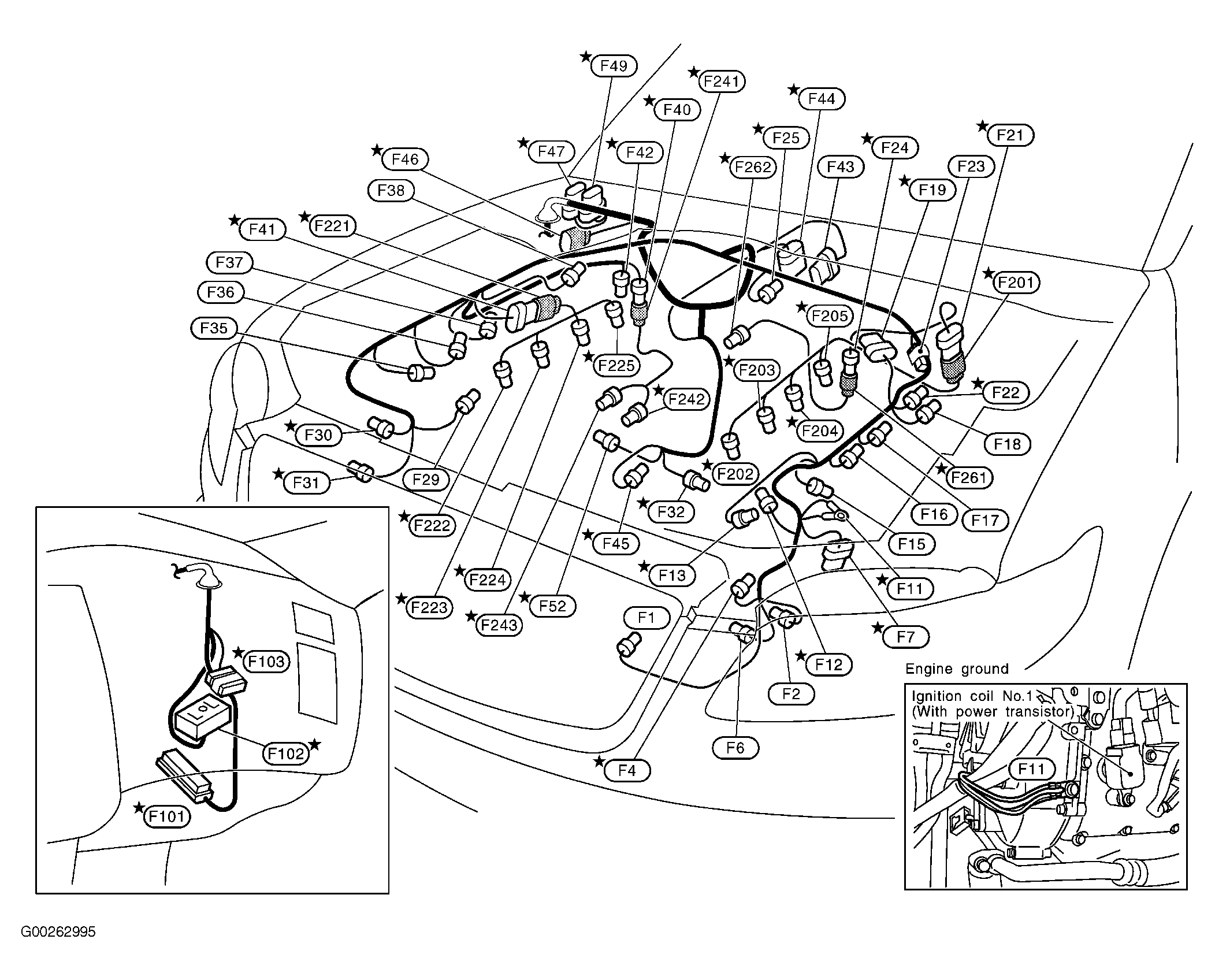

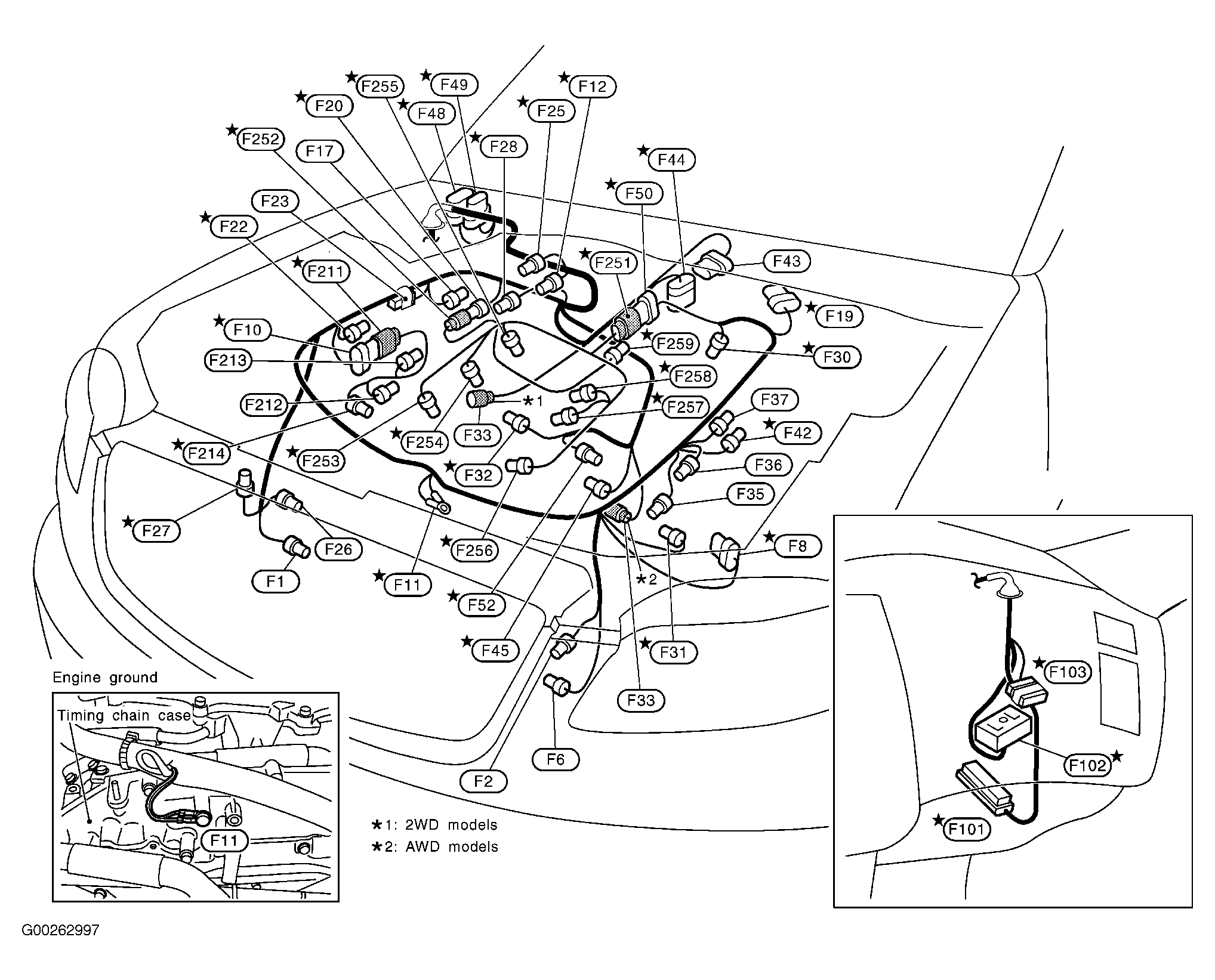

Fig 6: Engine (4.5L)

G00262995

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Engine (3.5L)

G00262997

Courtesy of NISSAN MOTOR CO., U.S.A.

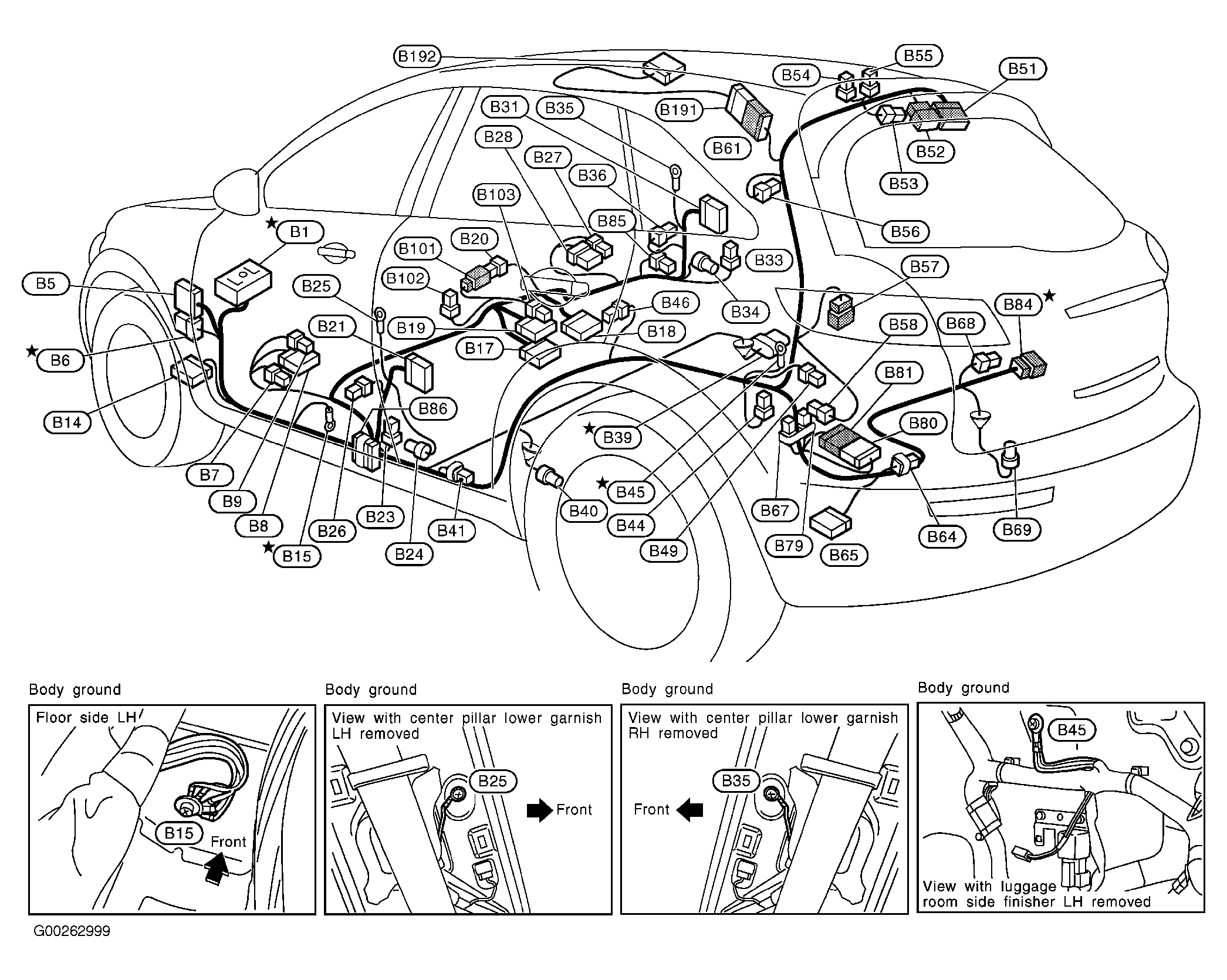

Fig 8: Body Overview

G00262999

Courtesy of NISSAN MOTOR CO., U.S.A.

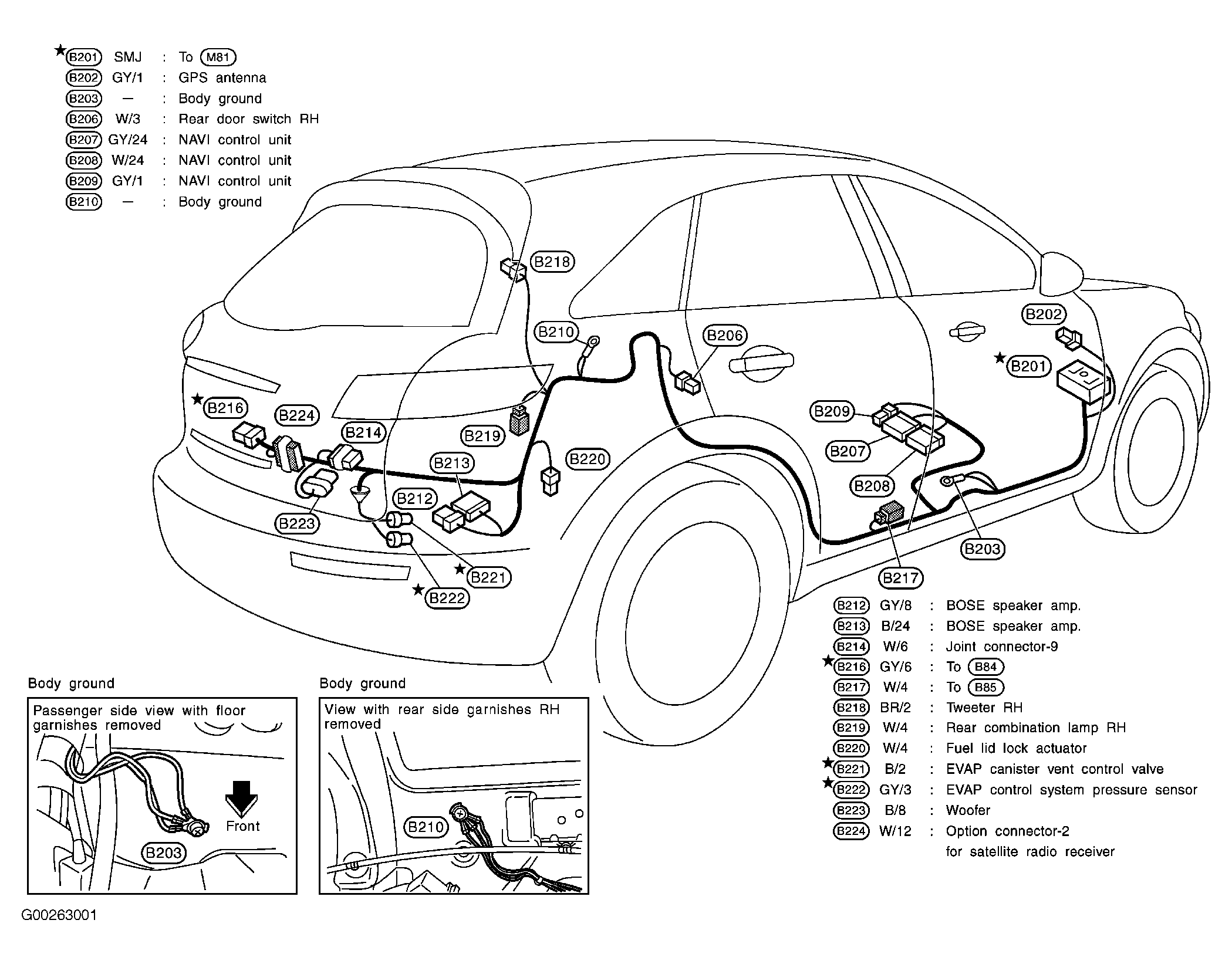

Fig 9: Right Side & Rear Of Body

G00263001

Courtesy of NISSAN MOTOR CO., U.S.A.

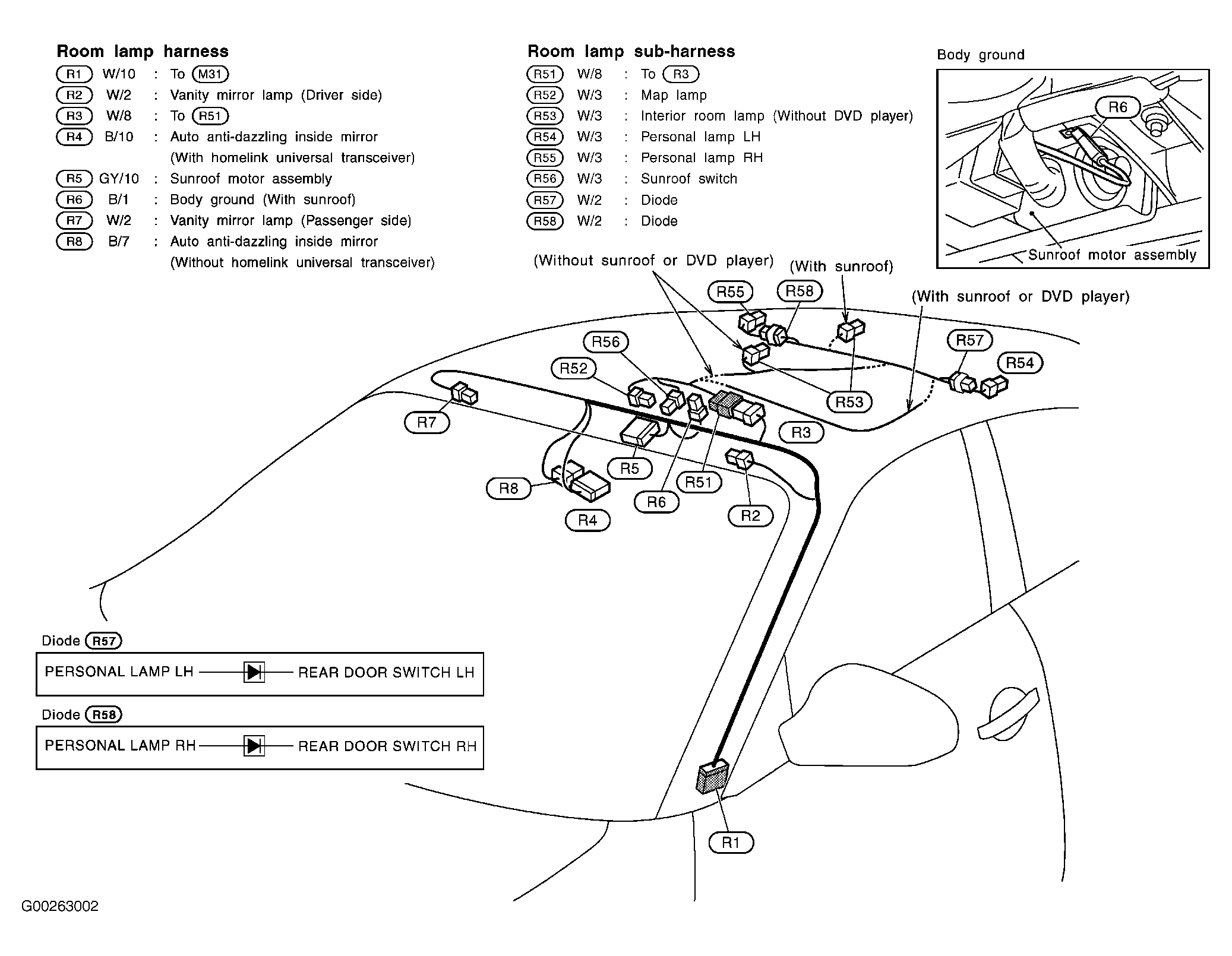

Fig 10: Front Of Roof

G00263002

Courtesy of NISSAN MOTOR CO., U.S.A.

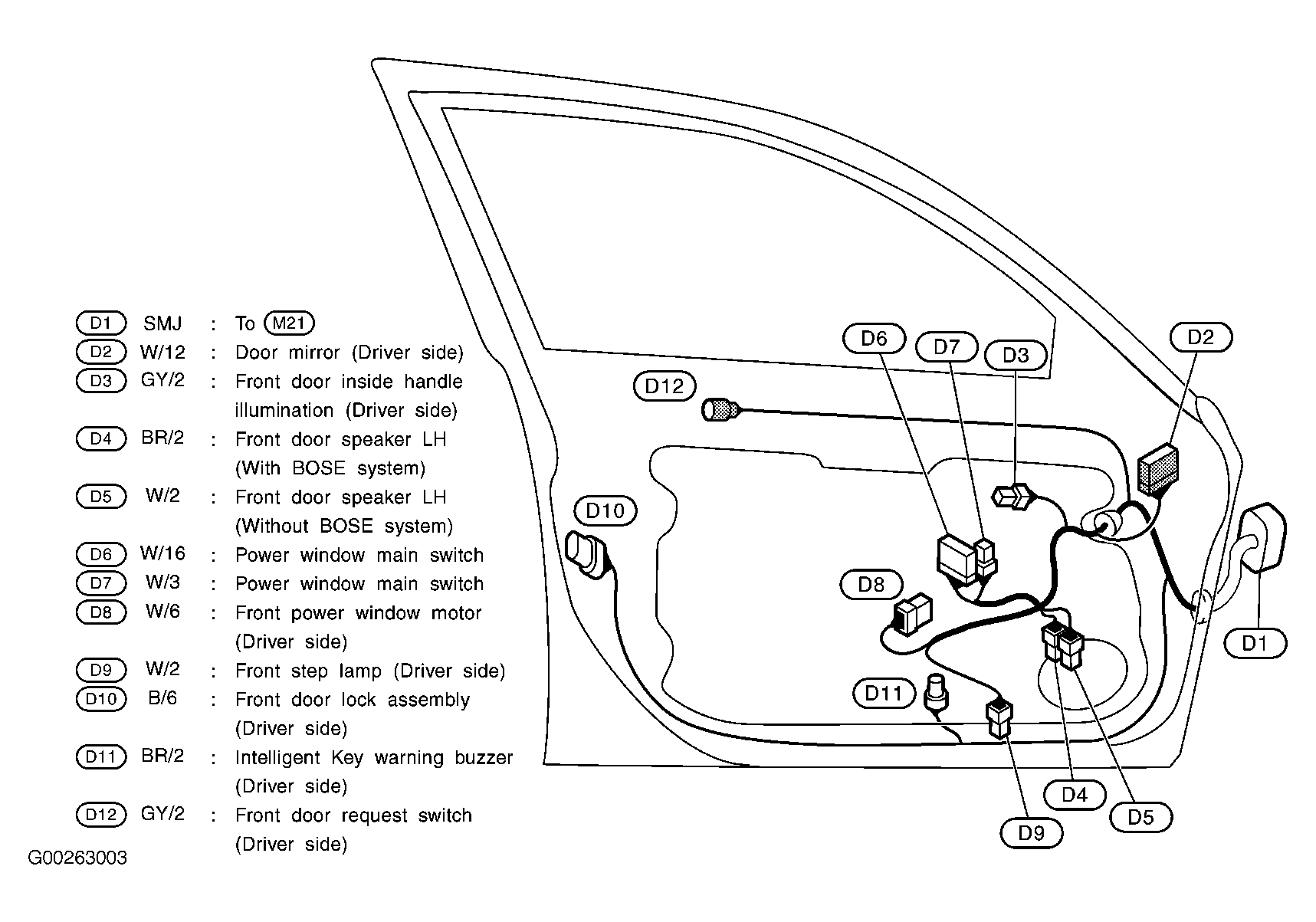

Fig 11: Left Front Door

G00263003

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Right Front Door

G00263004

Courtesy of NISSAN MOTOR CO., U.S.A.

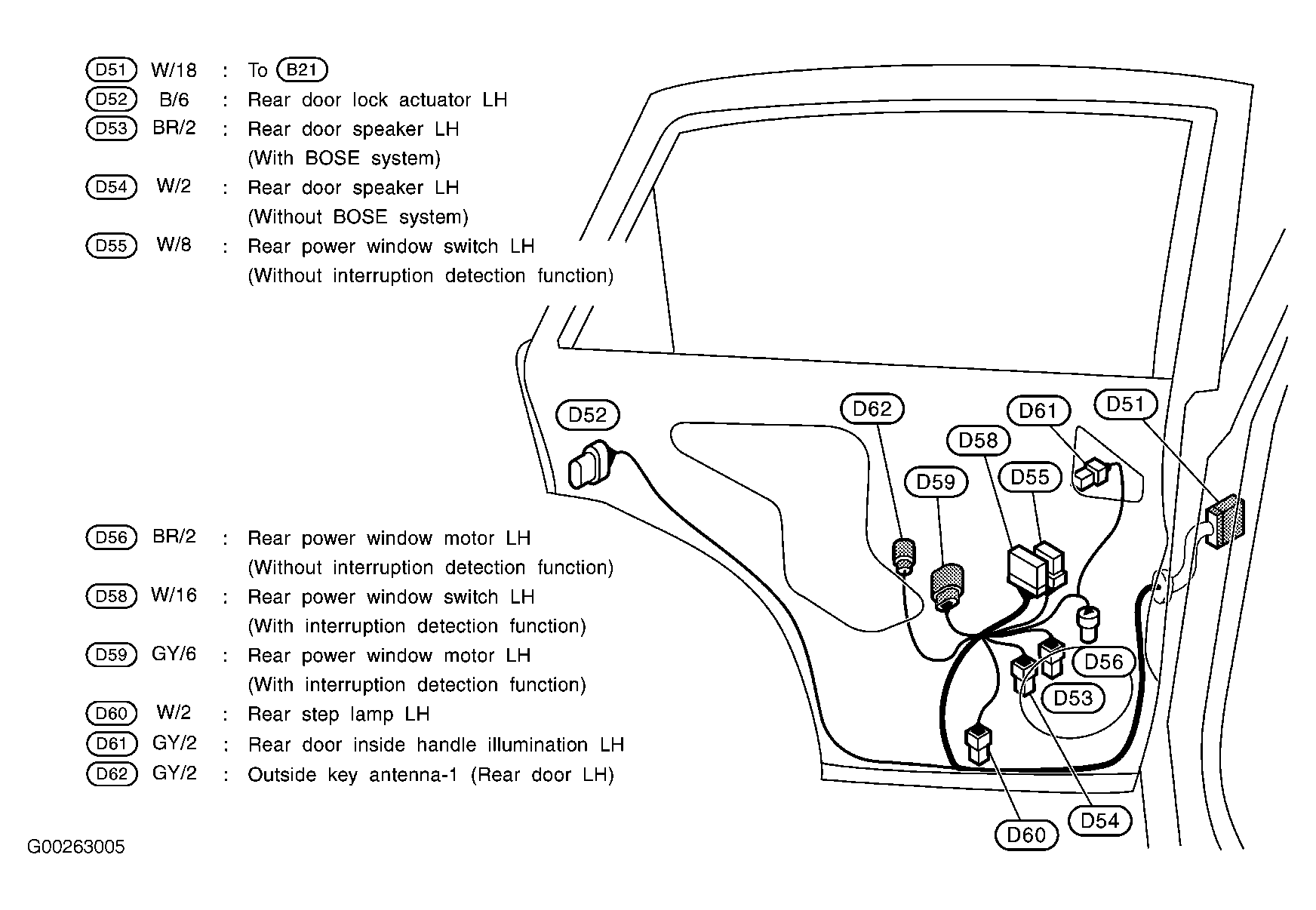

Fig 13: Left Rear Door

G00263005

Courtesy of NISSAN MOTOR CO., U.S.A.

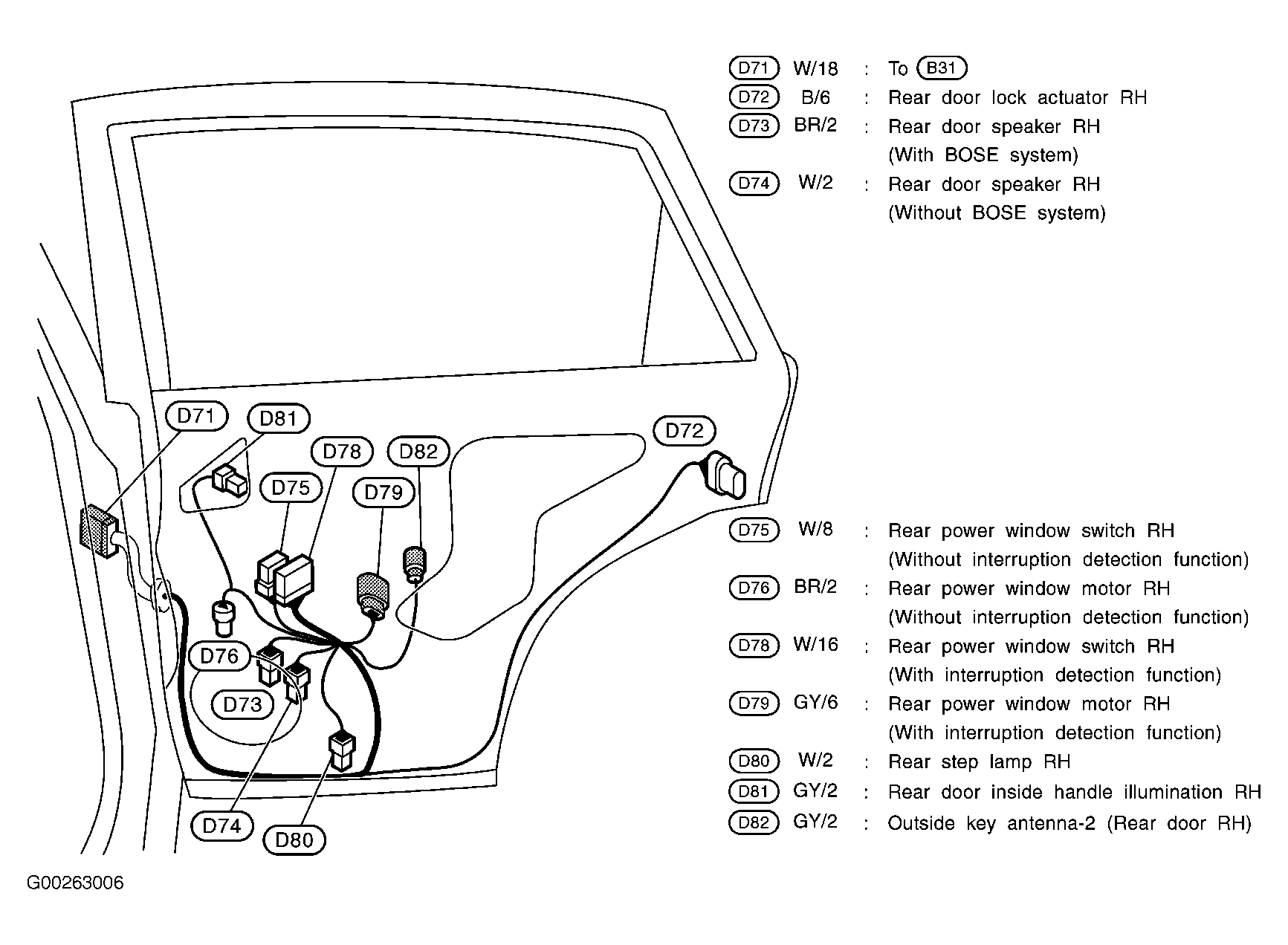

Fig 14: Right Rear Door

G00263006

Courtesy of NISSAN MOTOR CO., U.S.A.

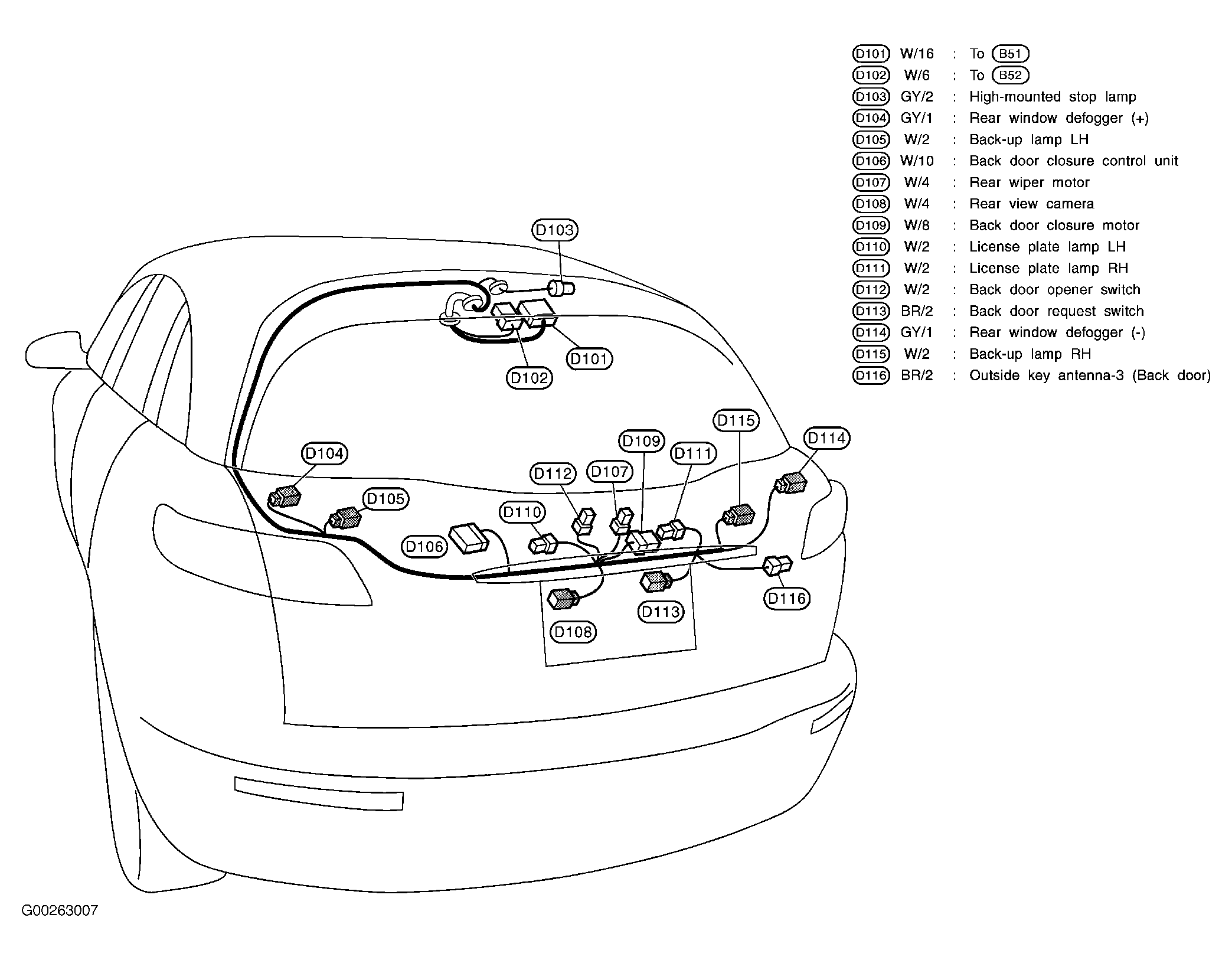

Fig 15: Back Door

G00263007

Courtesy of NISSAN MOTOR CO., U.S.A.

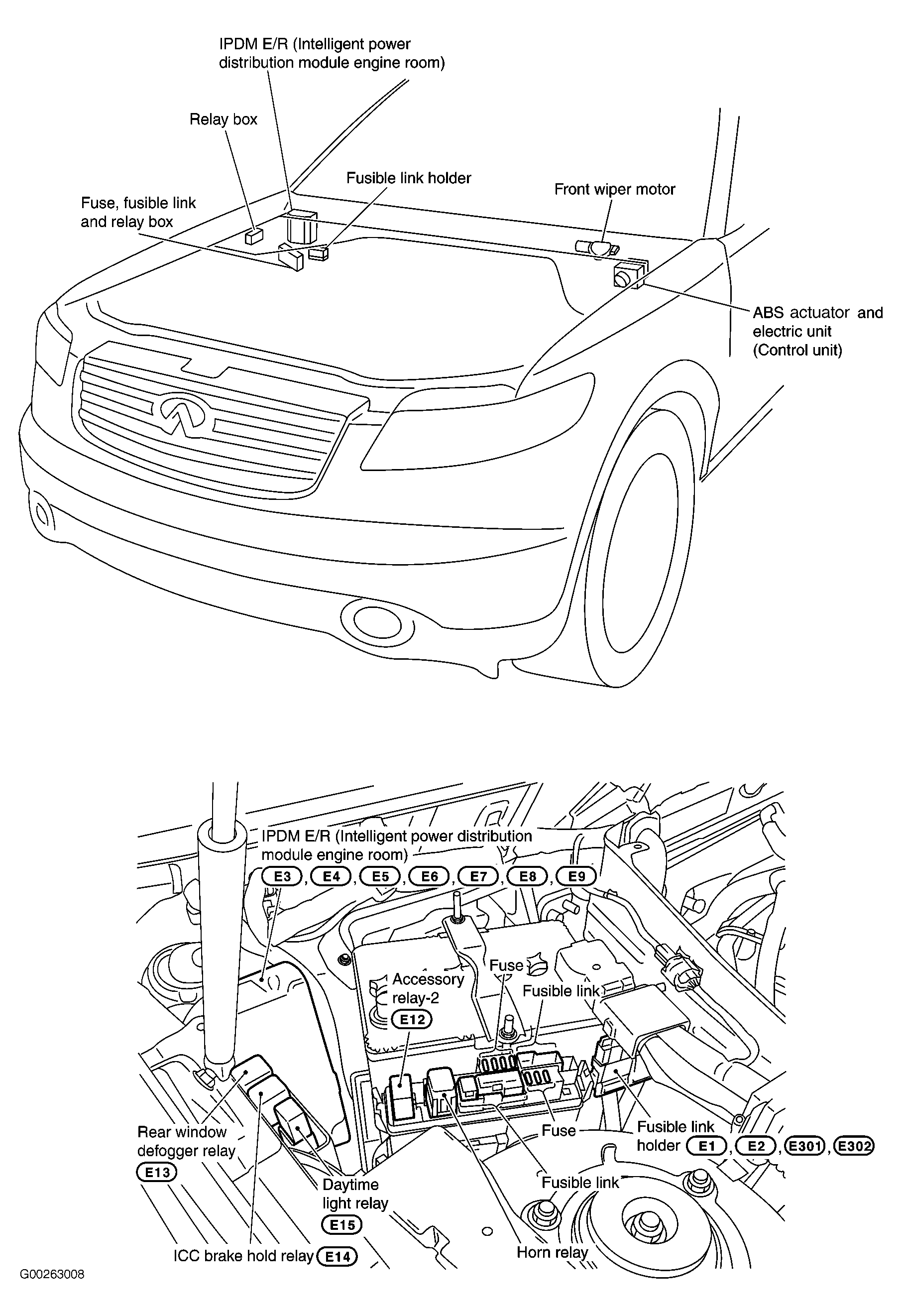

Fig 16: Rear Of Engine Compartment

G00263008

Courtesy of NISSAN MOTOR CO., U.S.A.

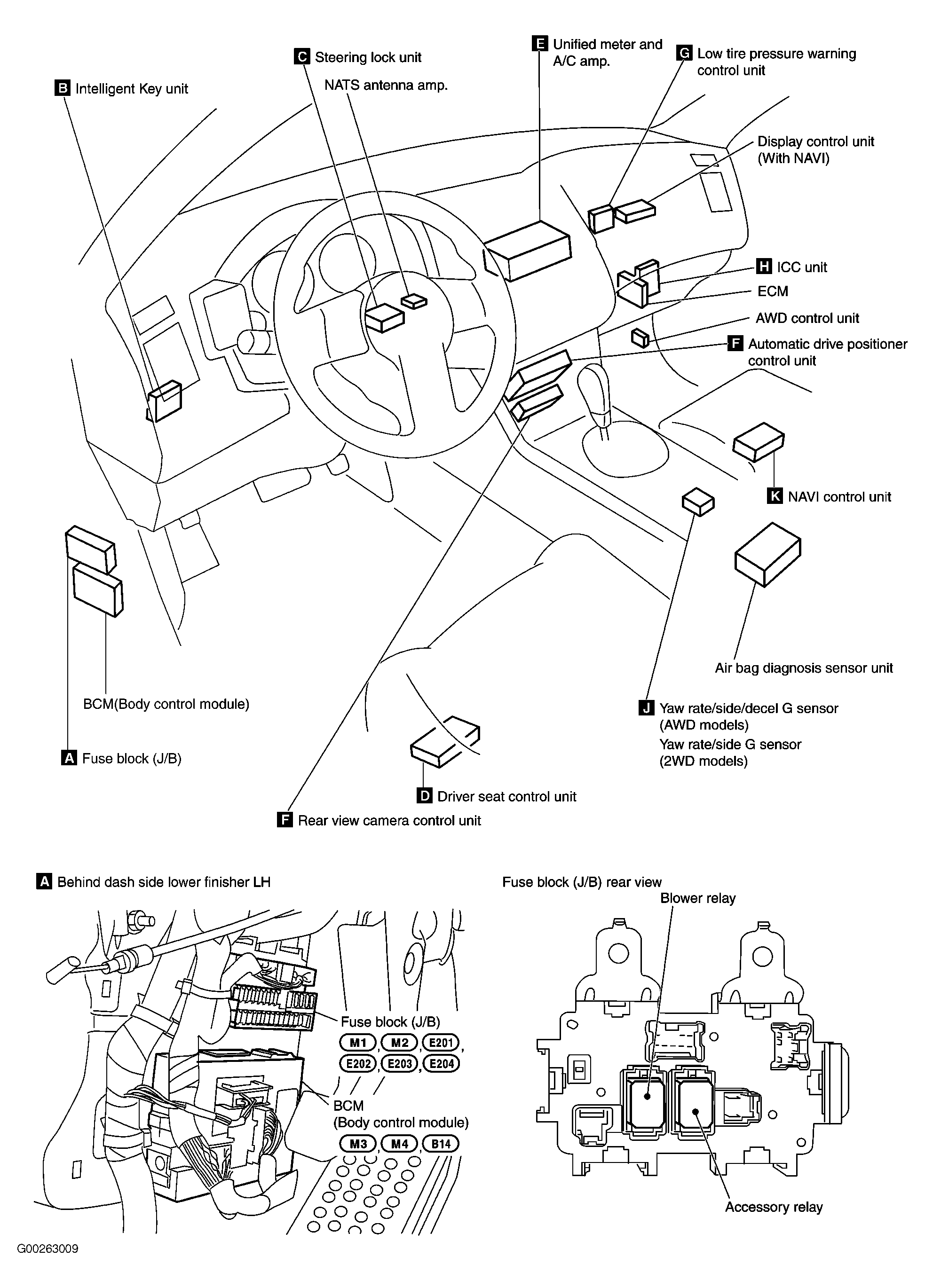

Fig 17: Dash & Center Console (1 Of 2)

G00263009

Courtesy of NISSAN MOTOR CO., U.S.A.

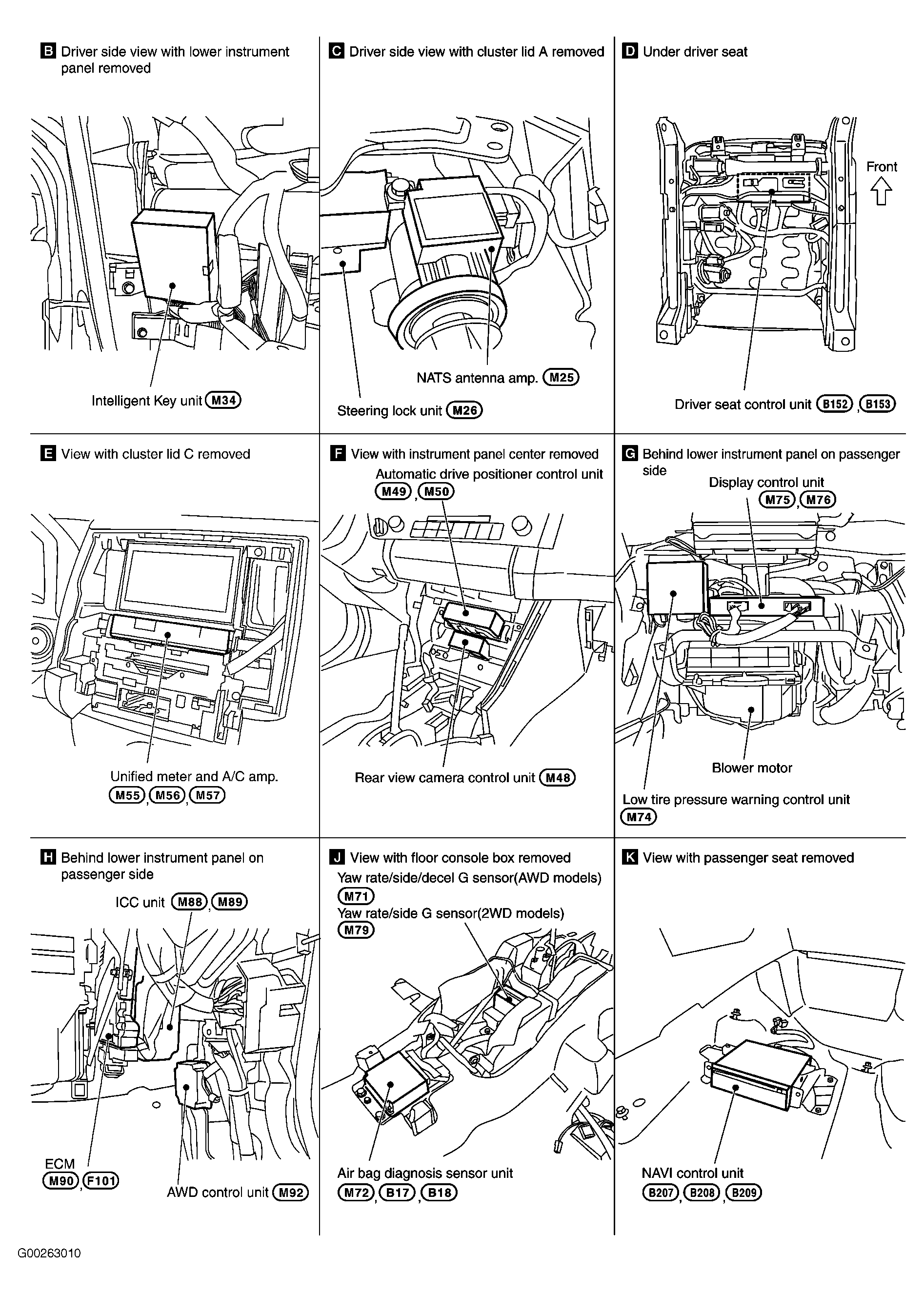

Fig 18: Dash & Center Console (2 Of 2)

G00263010

Courtesy of NISSAN MOTOR CO., U.S.A.

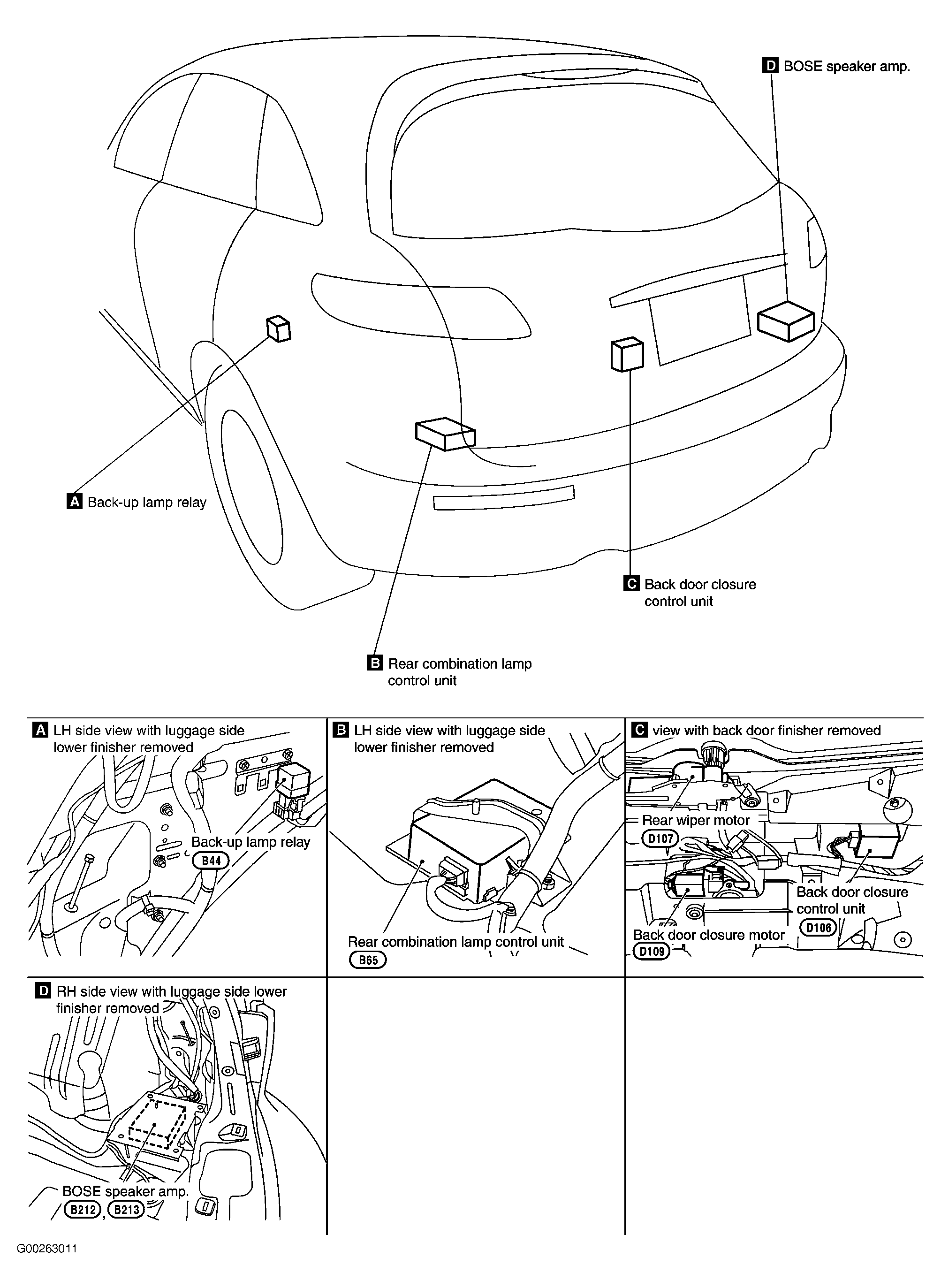

Fig 19: Luggage Compartment

G00263011

Courtesy of NISSAN MOTOR CO., U.S.A.

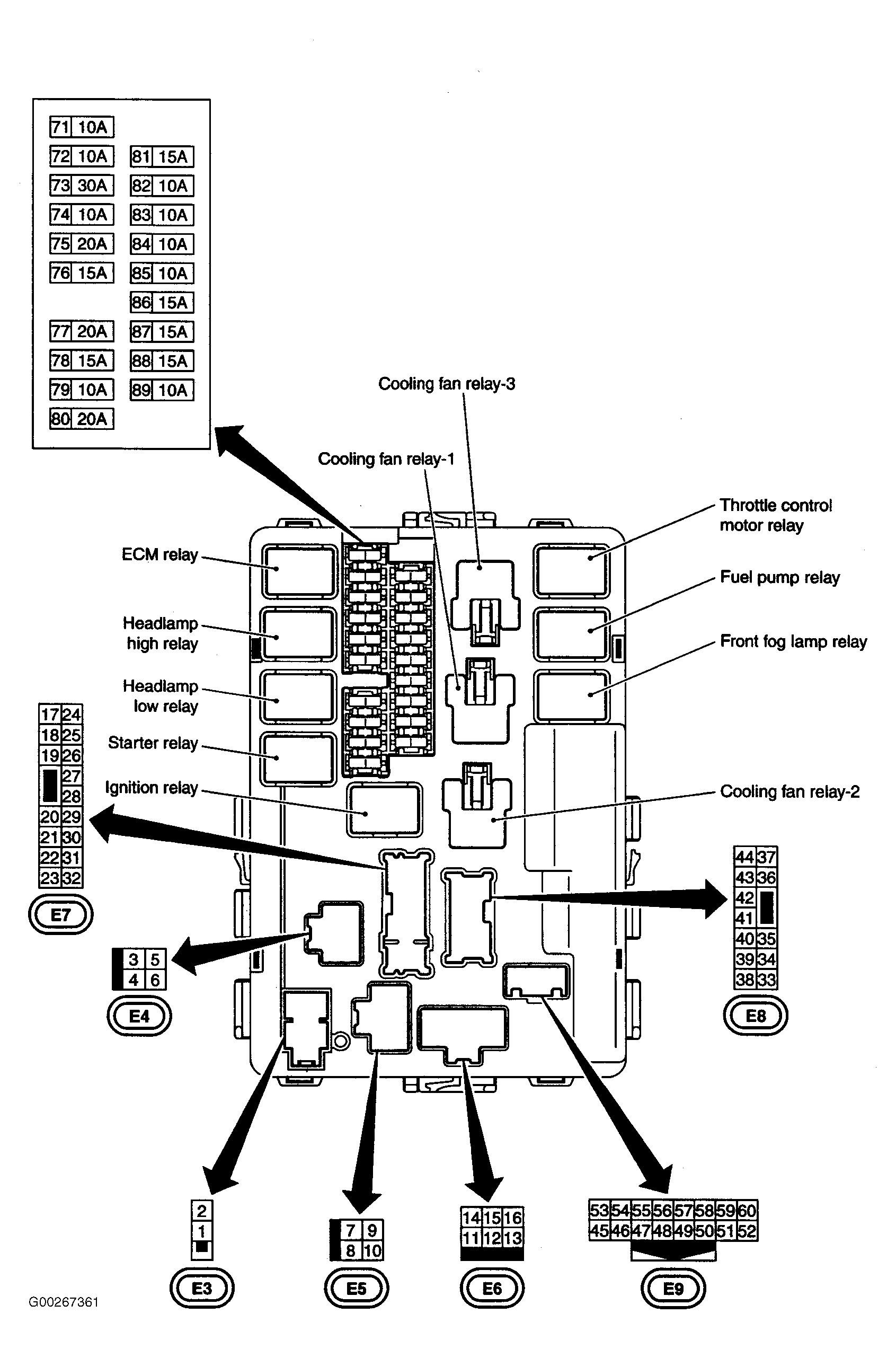

Fig 20: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00267361

Courtesy of NISSAN MOTOR CO., U.S.A.

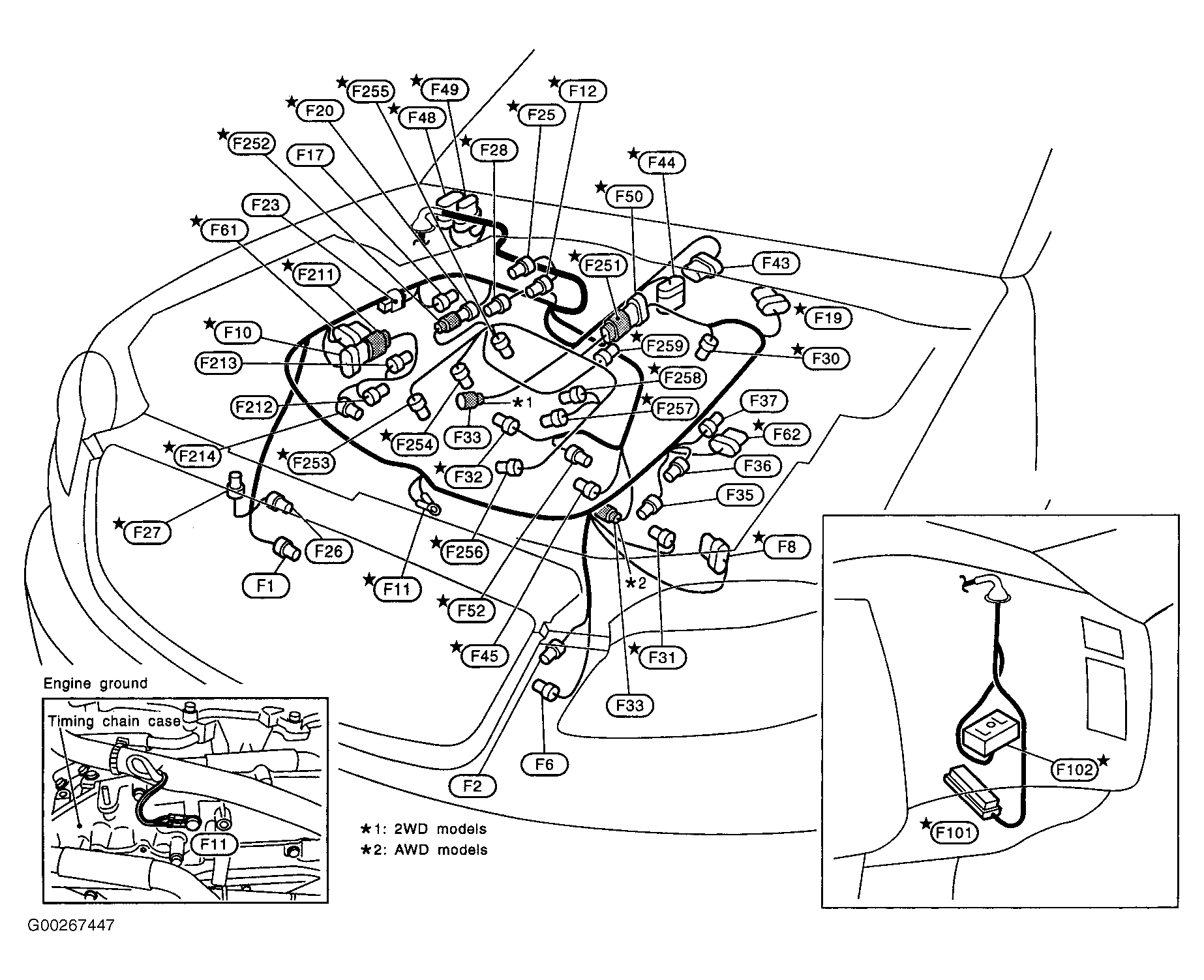

Fig 21: Engine (3.5L)

G00267447

Courtesy of NISSAN MOTOR CO., U.S.A.
