Intake Valve Timing Control Position Sensor

Disconnect intake valve timing control position sensor harness connector.
Loosen the fixing bolt of the sensor.

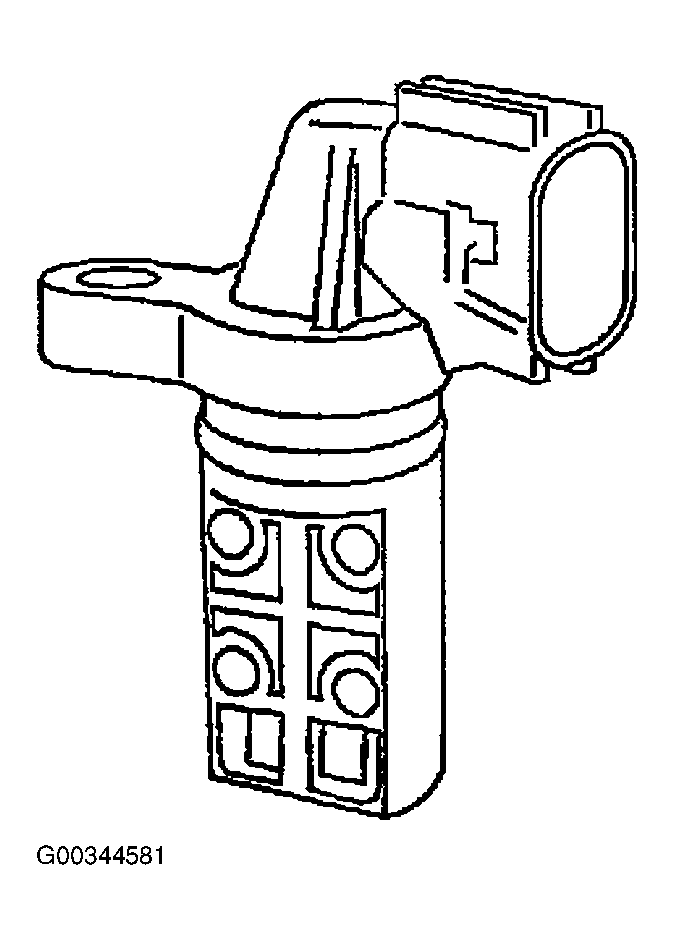

Remove the sensor. See Figure .
Visually check the sensor for chipping.
Check resistance as shown in Fig 2 .

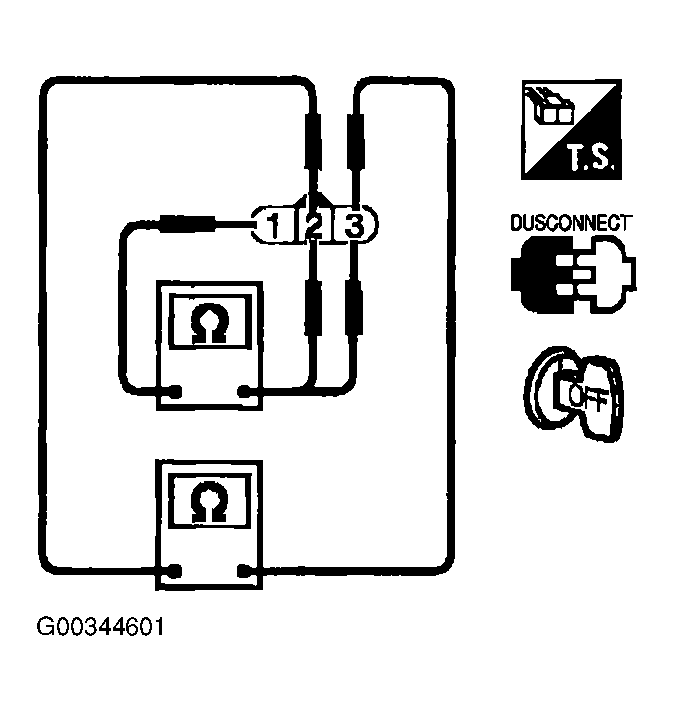

Fig 1: Checking Intake Valve Timing Control Position Sensor Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.

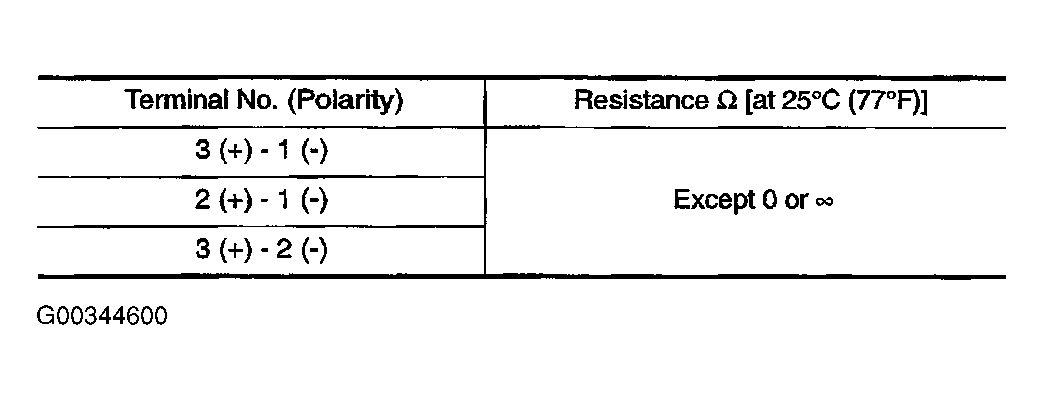

Fig 2: Intake Valve Timing Control Position Sensor Terminal Resistance Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace intake valve timing control position sensor.
