On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic .

NOTE: If DTC P0101 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229. Refer to DTC P1229 SENSOR POWER SUPPLY .

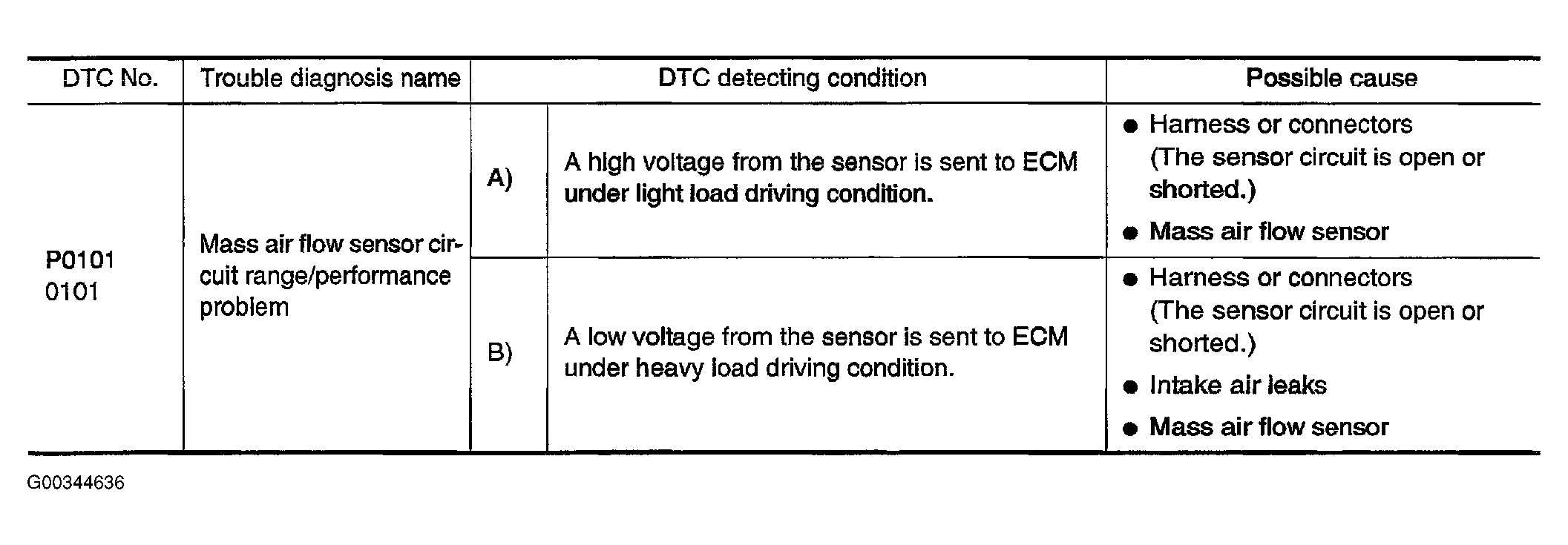

Fig 1: Identifying DTC P0101 Conditions & Possible Causes

Courtesy of NISSAN MOTOR CO., U.S.A.
