Engine COOLANT Temperature Sensor

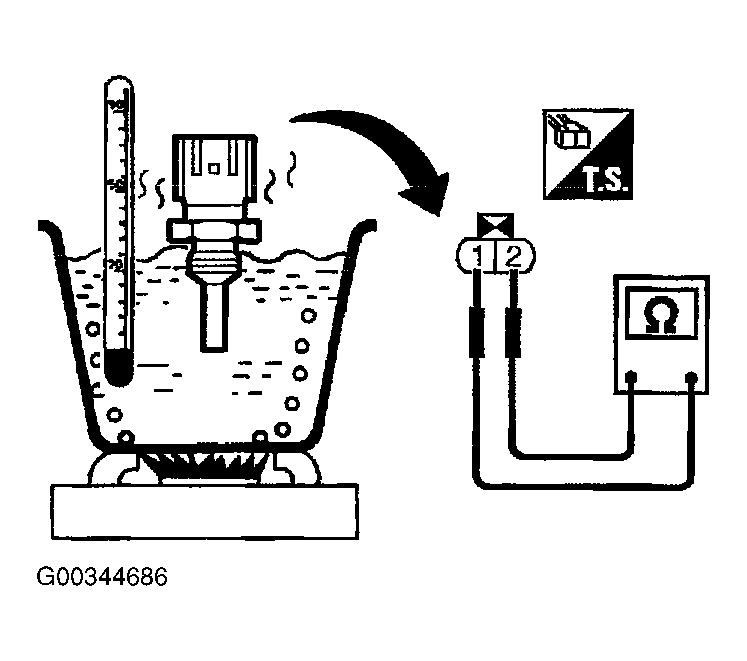

  1. Check resistance between engine COOLANT temperature sensor terminals 1 and 2 as shown in Figure .

    Reference data

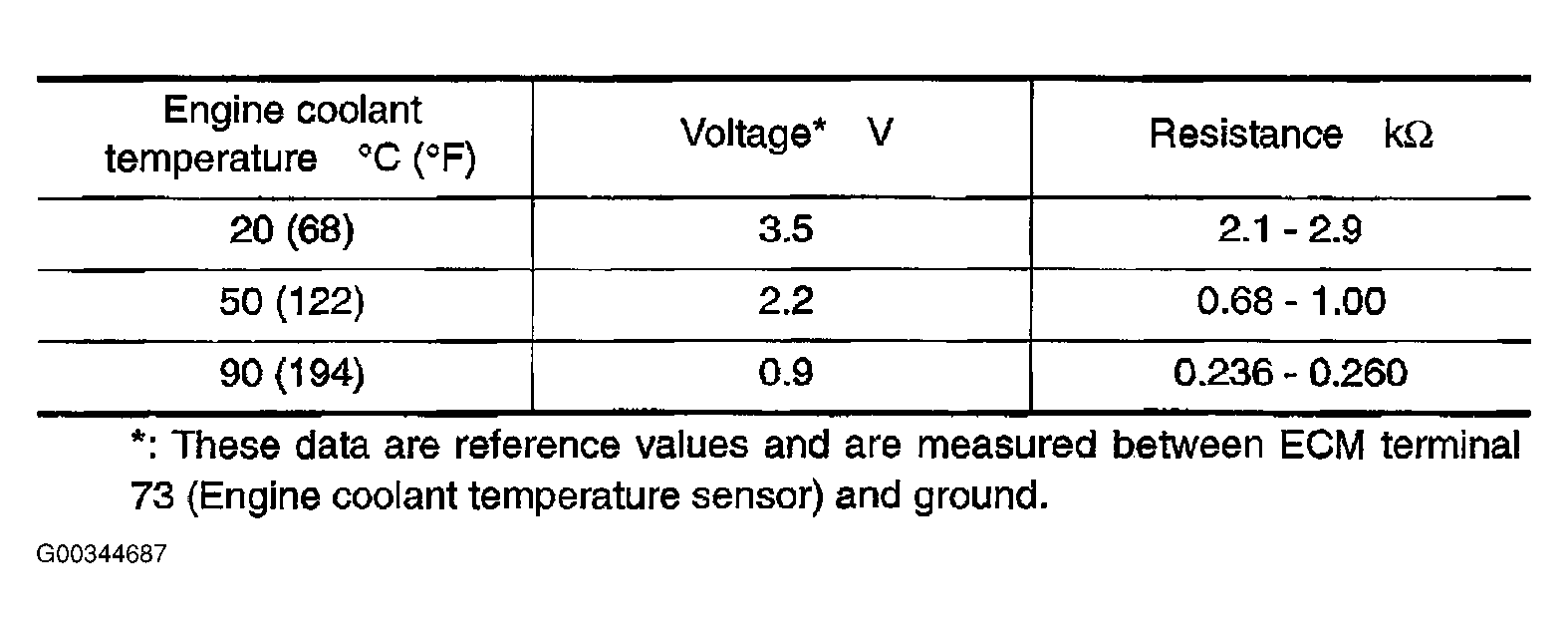

    For engine COOLANT temperature sensor specifications, see Figure

    For thermistor specifications in graph format, see Figure .

  2. If NG, replace engine COOLANT temperature sensor.
