Testing Condition

This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle  .

With CONSULT-II

1. Wait until engine COOLANT temperature is less than 90° C (194° F)
   • Turn ignition switch ON.
   • Select DATA MONITOR mode with CONSULT-II.

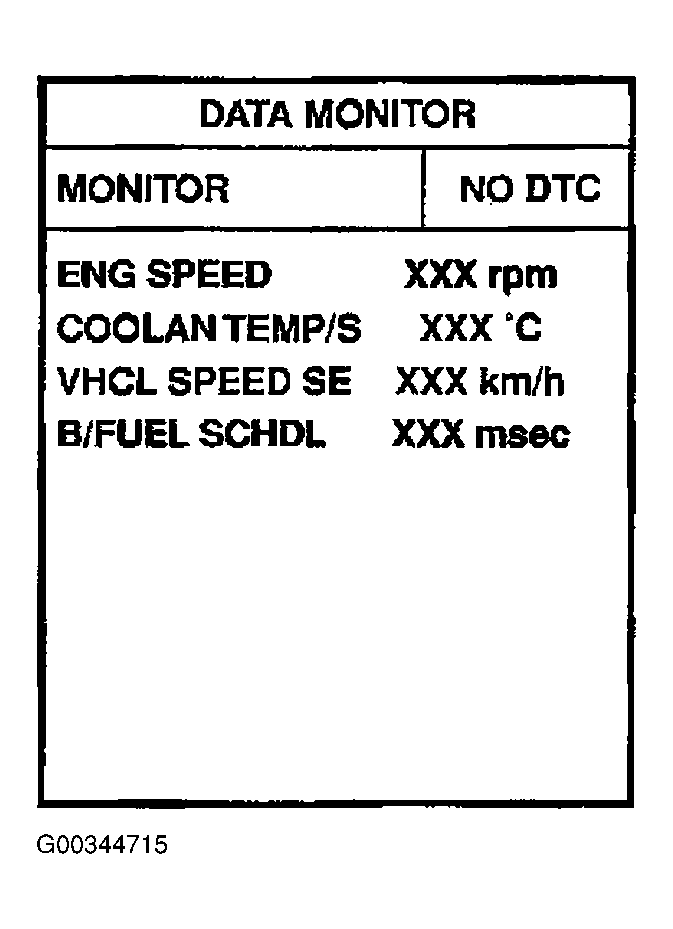

     Fig 1: Displaying Conditions With CONSULT-II In Data Monitor Mode

     Courtesy of NISSAN MOTOR CO., U.S.A.
   • Check the engine COOLANT temperature.
   • If the engine COOLANT temperature is not less than 90° C (194° F), turn ignition switch OFF and cool down engine.
     • Perform the following steps before engine COOLANT temperature is above 90° C (194° F).
2. Turn ignition switch ON.
3. Select DATA MONITOR mode with CONSULT-II.
4. Start engine.
5. Hold vehicle speed at more than 70 km/h (43 MPH) for 100 consecutive seconds.
6. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .

With GST

Follow the procedure With CONSULT-II above.
