Reference data

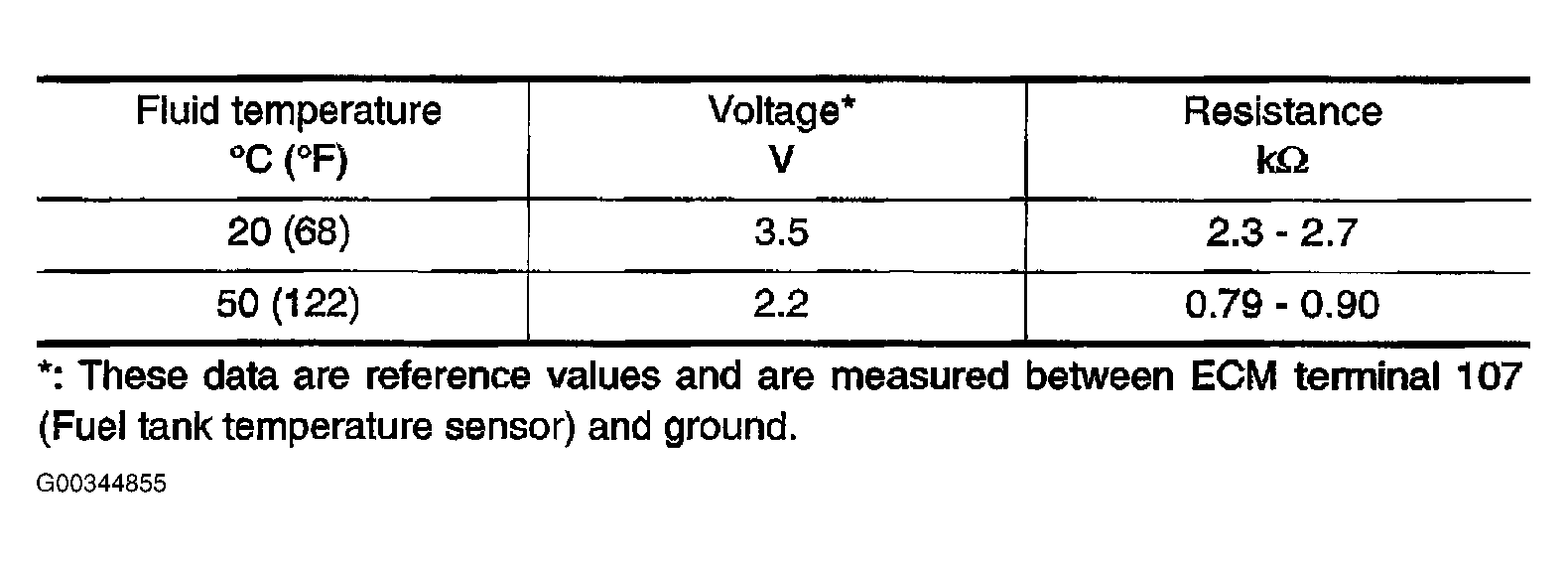

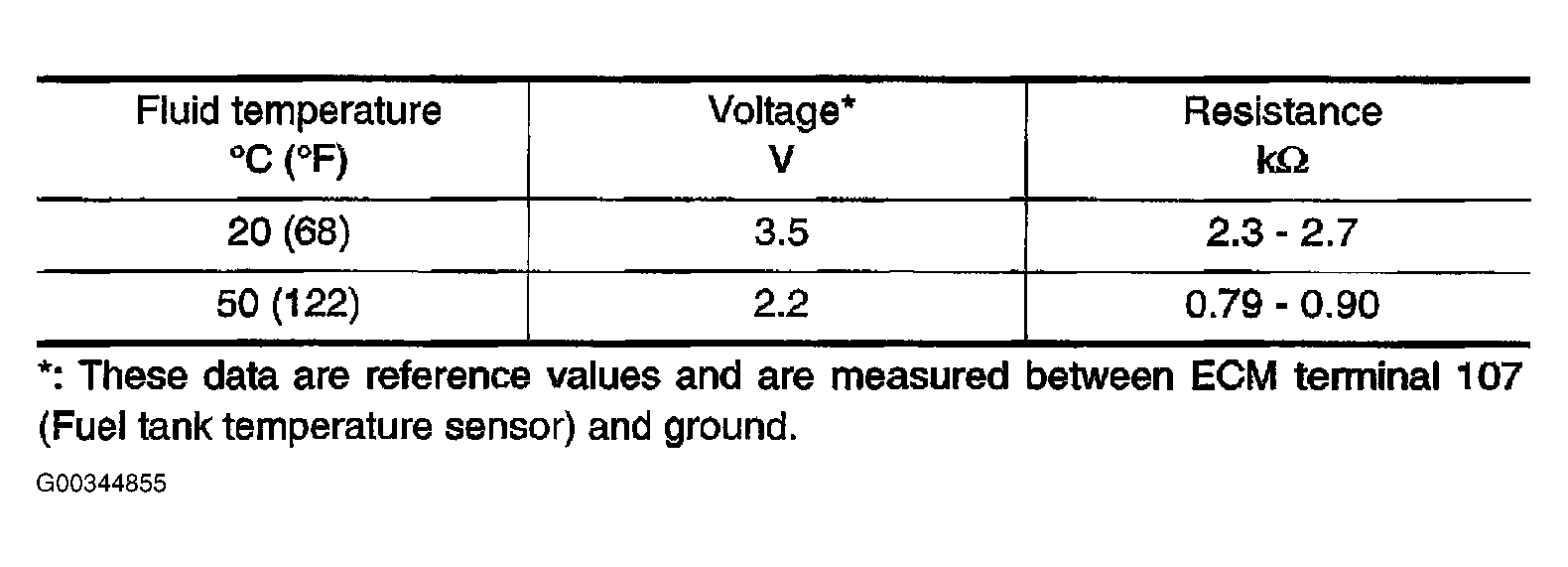

For fuel tank temperature sensor specifications, see Figure .
For thermistor specifications in graph format, see Figure .
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
