On Board Diagnosis Logic

Under normal conditions (non-closed throttle), sensor output voltage indicates if pressure drop and purge flow are adequate. If not, a malfunction is determined.

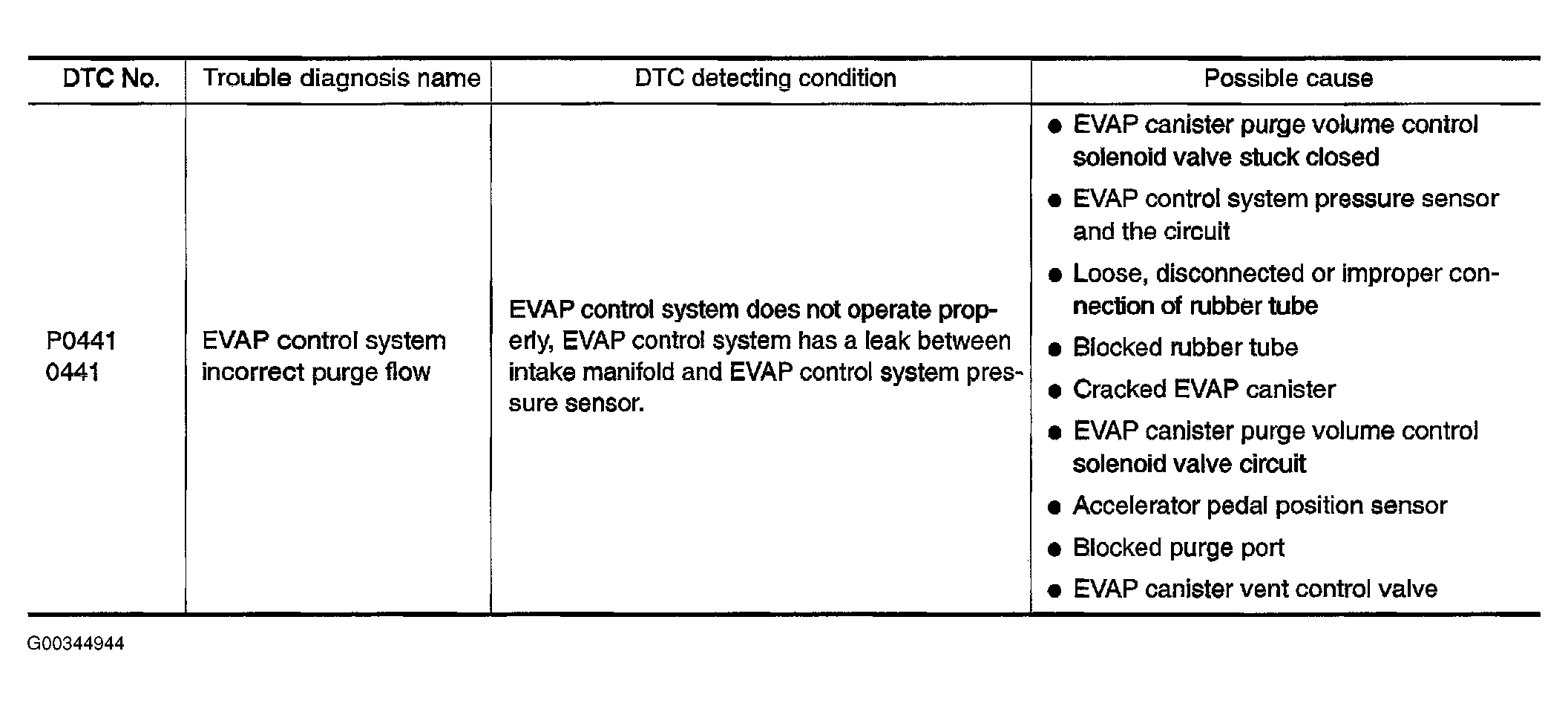

Fig 1: Identifying DTC P0441 Conditions & Possible Causes

Courtesy of NISSAN MOTOR CO., U.S.A.
