Component Description

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases.

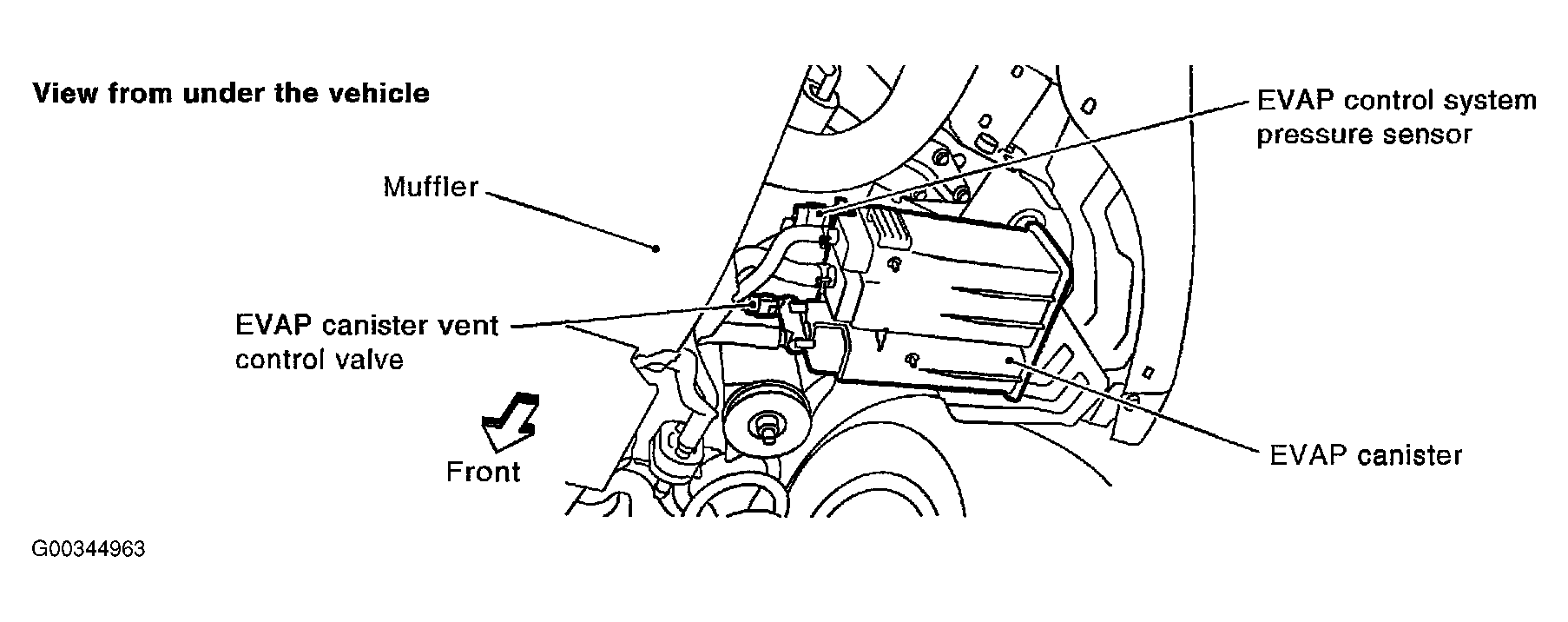

For location of EVAP control system pressure sensor, see Figure .

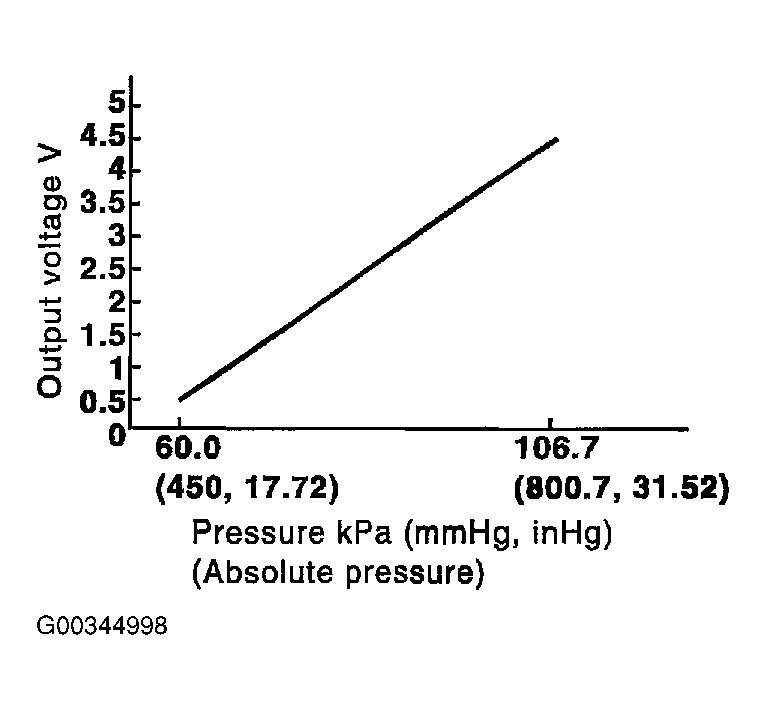

For EVAP control system pressure Output voltage to ambient pressure graph, see Figure .
