DTC P0453 EVAP Control System Pressure Sensor: Wiring Diagram
NOTE:
For system wiring diagrams, see SYSTEM WIRING DIAGRAMS
.
For EVAP control system pressure sensor circuit, see Figure .

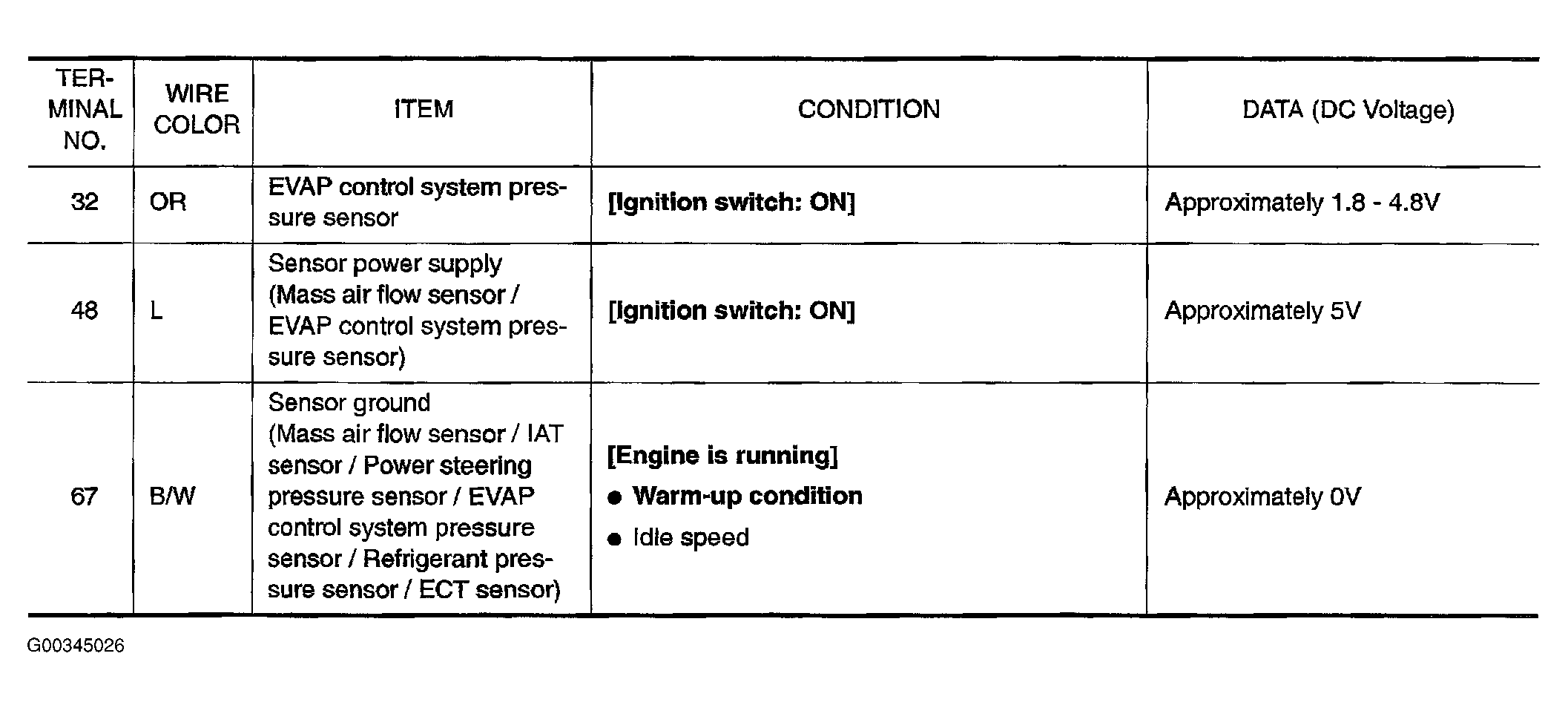

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
