Power Steering Pressure Sensor

Reconnect all harness connectors disconnected.
Start engine and let it idle.
Check voltage between ECM terminal 12 and ground under the following conditions.

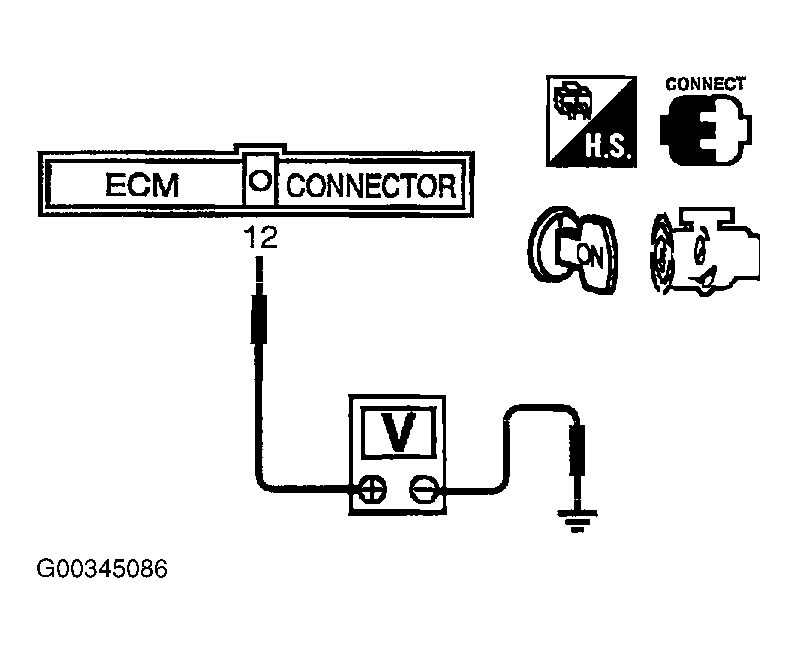

Fig 1: Testing ECM Connector Terminal 12 Voltage
Courtesy of NISSAN MOTOR CO., U.S.A.

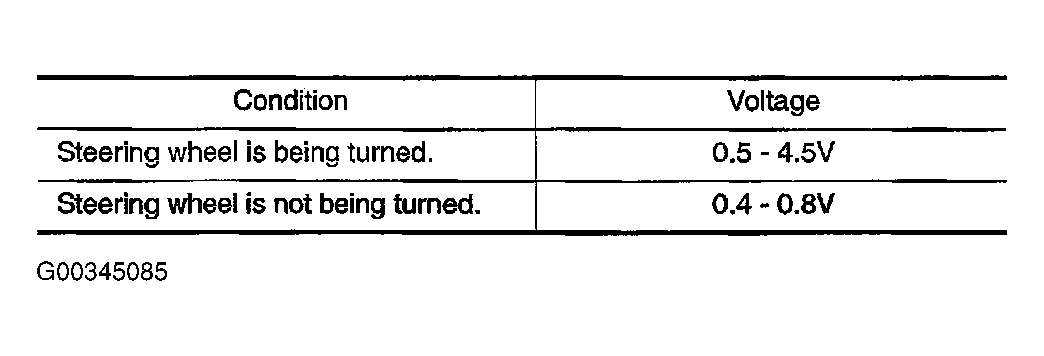

Fig 2: ECM Connector Terminal 12 Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
