Diagnostic Procedure

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check voltage between ECM terminal 121 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK: go to  3 .
2. NG: go to 2.

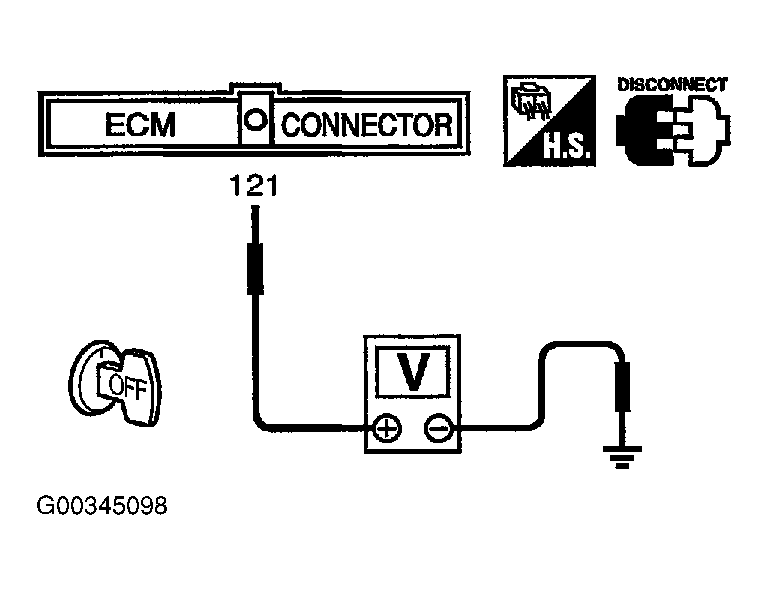

   Fig 1: Testing ECM Power Supply Circuit (W/DVOM)

   Courtesy of NISSAN MOTOR CO., U.S.A.

Check the following.

• Harness connectors E211, M41
• 20A fuse
• IPDM E/R harness connector E8
• Harness for open or short between ECM and battery
  1. Repair or replace harness or connectors.

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

OK or NG

1. OK: go to 4.
2. NG: Repair or replace harness or connectors.

With CONSULT-II

1. Turn ignition switch ON.
2. Select SELF DIAG RESULTS mode with CONSULT-II.
3. Touch ERASE.
4. Perform DTC confirmation procedure  .

   See DTC CONFIRMATION PROCEDURE  .

5. Is the 1st trip DTC P1065 displayed again?

With GST

1. Turn ignition switch ON.
2. Select MODE 4 with GST.
3. Touch ERASE.
4. Perform DTC confirmation procedure  .

   See DTC CONFIRMATION PROCEDURE  .

5. Is the 1st trip DTC P1065 displayed again?

Yes or No

1. Yes: go to 5.
2. No: Inspection end

1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to ECM RE-COMMUNICATING FUNCTION .
3. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING  .
4. Perform THROTTLE VALVE CLOSED POSITION LEARNING  .
5. Perform IDLE AIR VOLUME LEARNING  .
   1. Inspection end
