Throttle Control Motor

  1. Disconnect electric throttle control actuator harness connector.
  2. Check resistance between terminals 3 and 6.

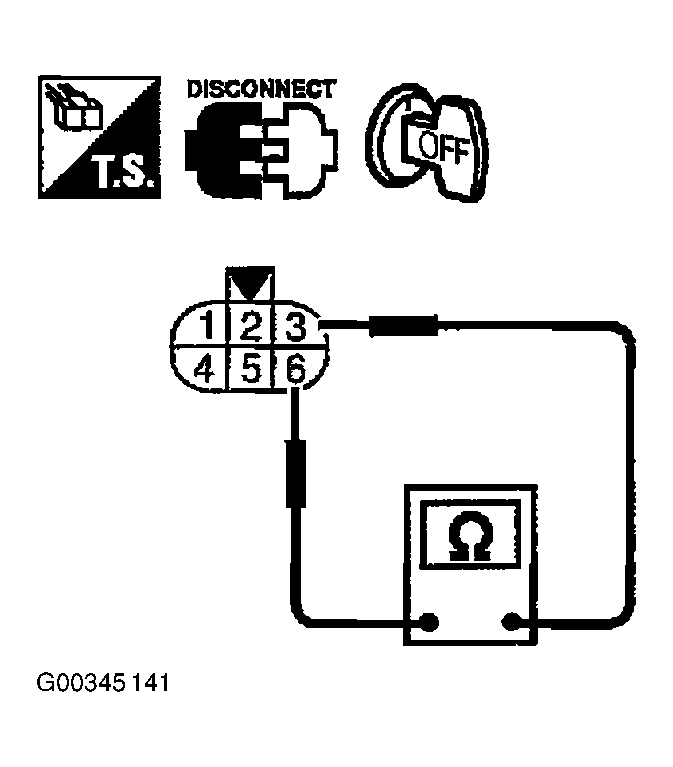

    Fig 1: Testing Electric Throttle Control Actuator Resistance
    G00345141Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Resistance: Approximately 1 - 15 ohm [at 25 ° C (77° F)]
  3. If NG, replace electric throttle control actuator and go to next step.
  4. Perform THROTTLE VALVE CLOSED POSITION LEARNING  .
  5. Perform IDLE AIR VOLUME LEARNING  .
