Overall Function Check

Use this procedure to check the overall function of the closed loop control. During this check, a DTC might not be confirmed.

With GST

1. Start engine and warm it up to normal operating temperature.

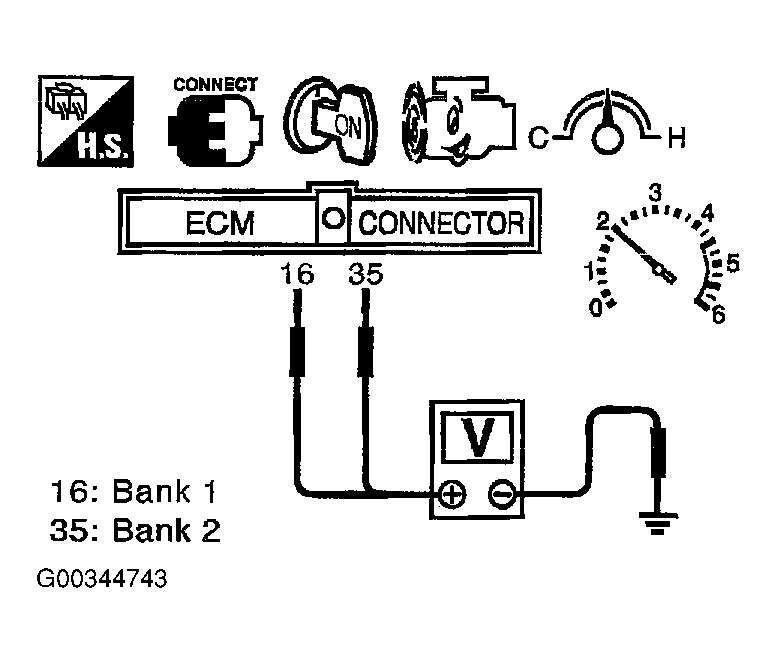

2. Set voltmeter probes between ECM terminal 16 [HO2S1 (B1) signal] or 35 [HO2S1 (B2) signal] and ground. See Figure .
3. Check the following with engine speed held at 2,000 RPM constant under no load.
   • The voltage should go above 0.70V at least once.
   • The voltage should go below 0.21V at least once.
4. If NG, go to DIAGNOSTIC PROCEDURE  .
