On Board Diagnosis Logic

Freeze frame data is not stored in the ECM for this self-diagnosis. The MIL will not light up for this self-diagnosis  .

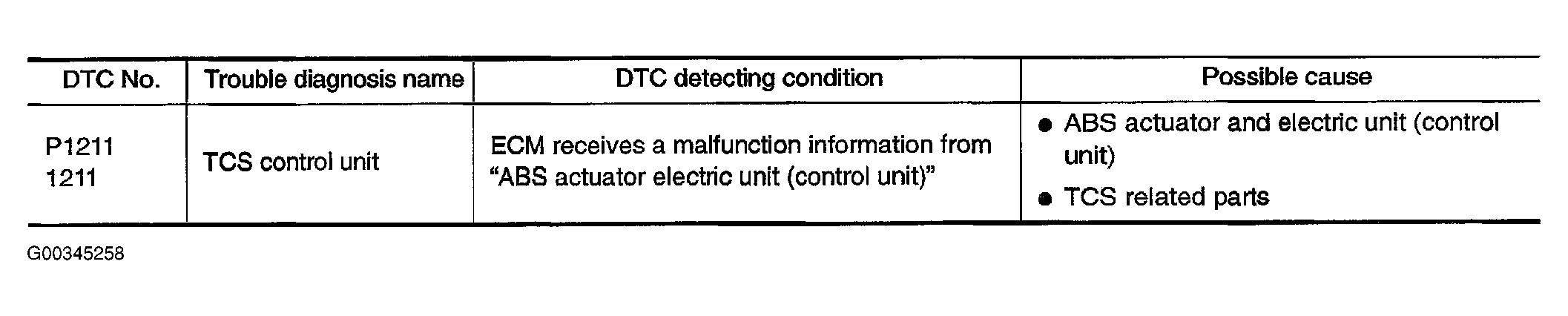

Fig 1: Identifying DTC P1211 Conditions & Possible Causes

Courtesy of NISSAN MOTOR CO., U.S.A.
