Component Description

The cooling fan at each speed when the current flows in the cooling fan motor as follows.

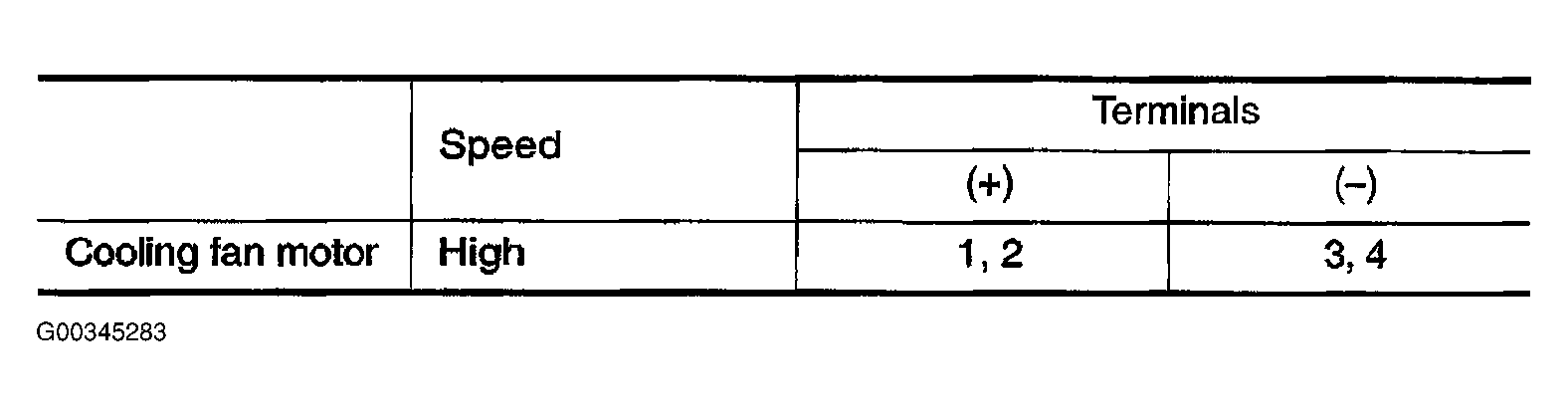

Fig 1: Determining Specifications For Cooling Fan Terminals By Fan Speed

Courtesy of NISSAN MOTOR CO., U.S.A.
