Cooling Fan Relay Operation

The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.

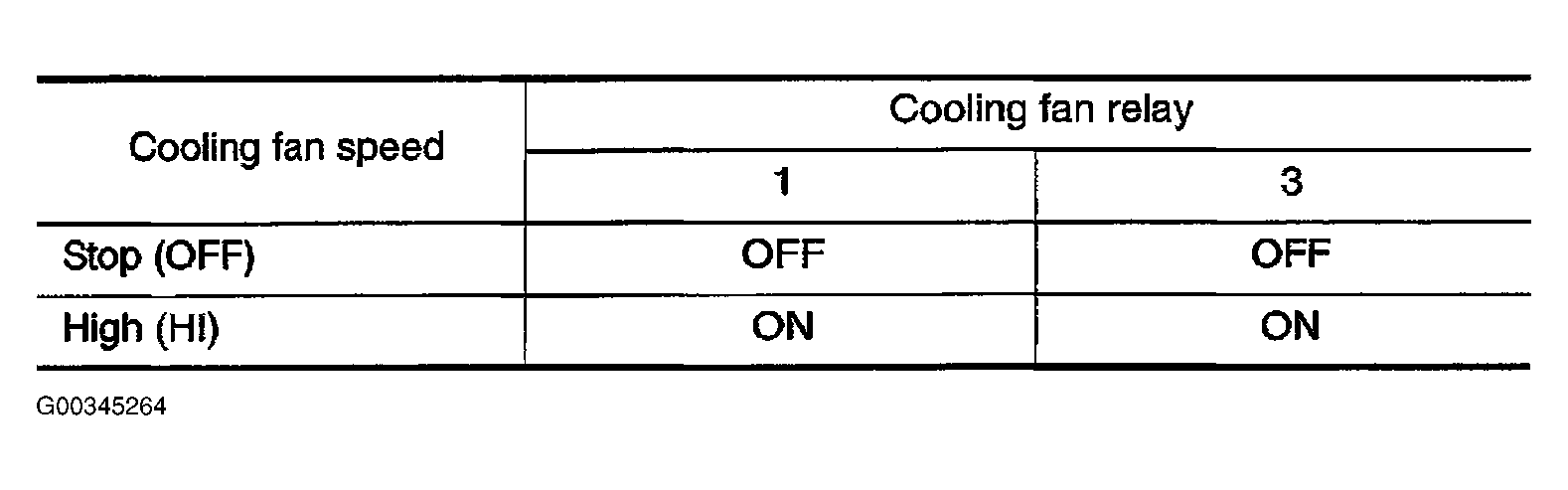

Fig 1: Determining Cooling Fan Speed & Relay Status

Courtesy of NISSAN MOTOR CO., U.S.A.
