DTC P1217 Engine Over Temperature: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

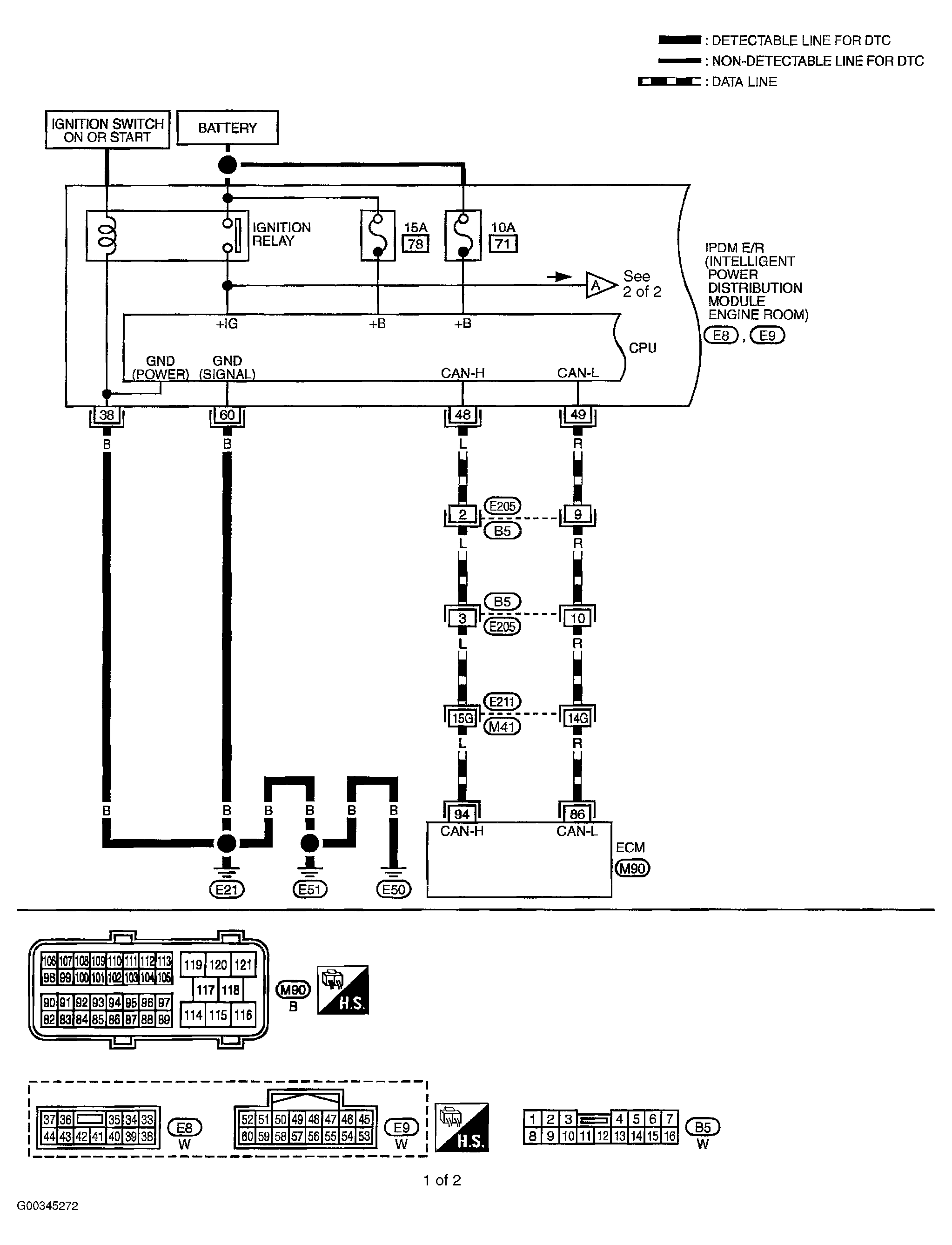

Fig 1: Cooling Fan Relay Circuit (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

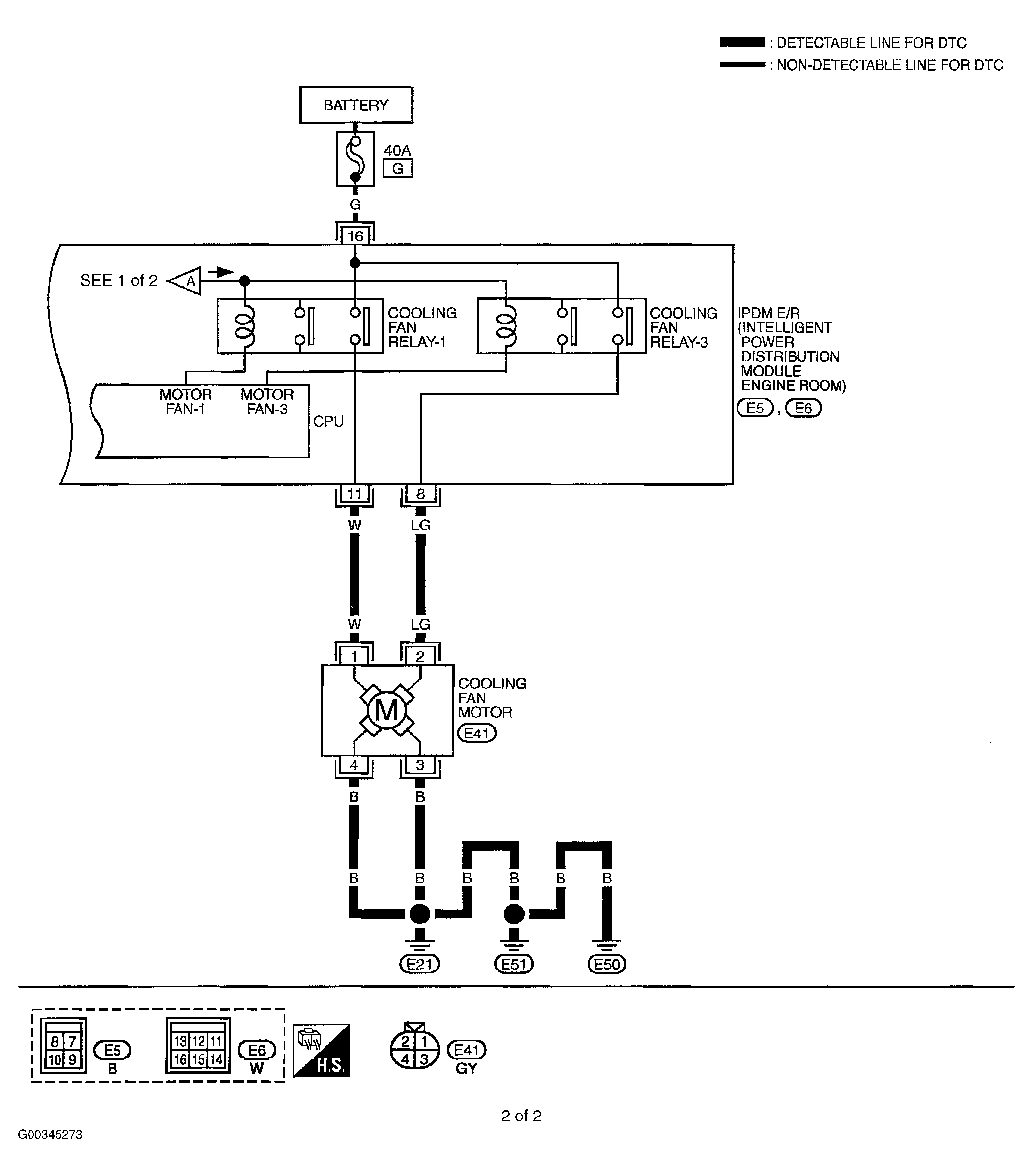

Fig 2: Cooling Fan Relay Circuit (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
