DTC P1446 EVAP Canister Vent Control Valve: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

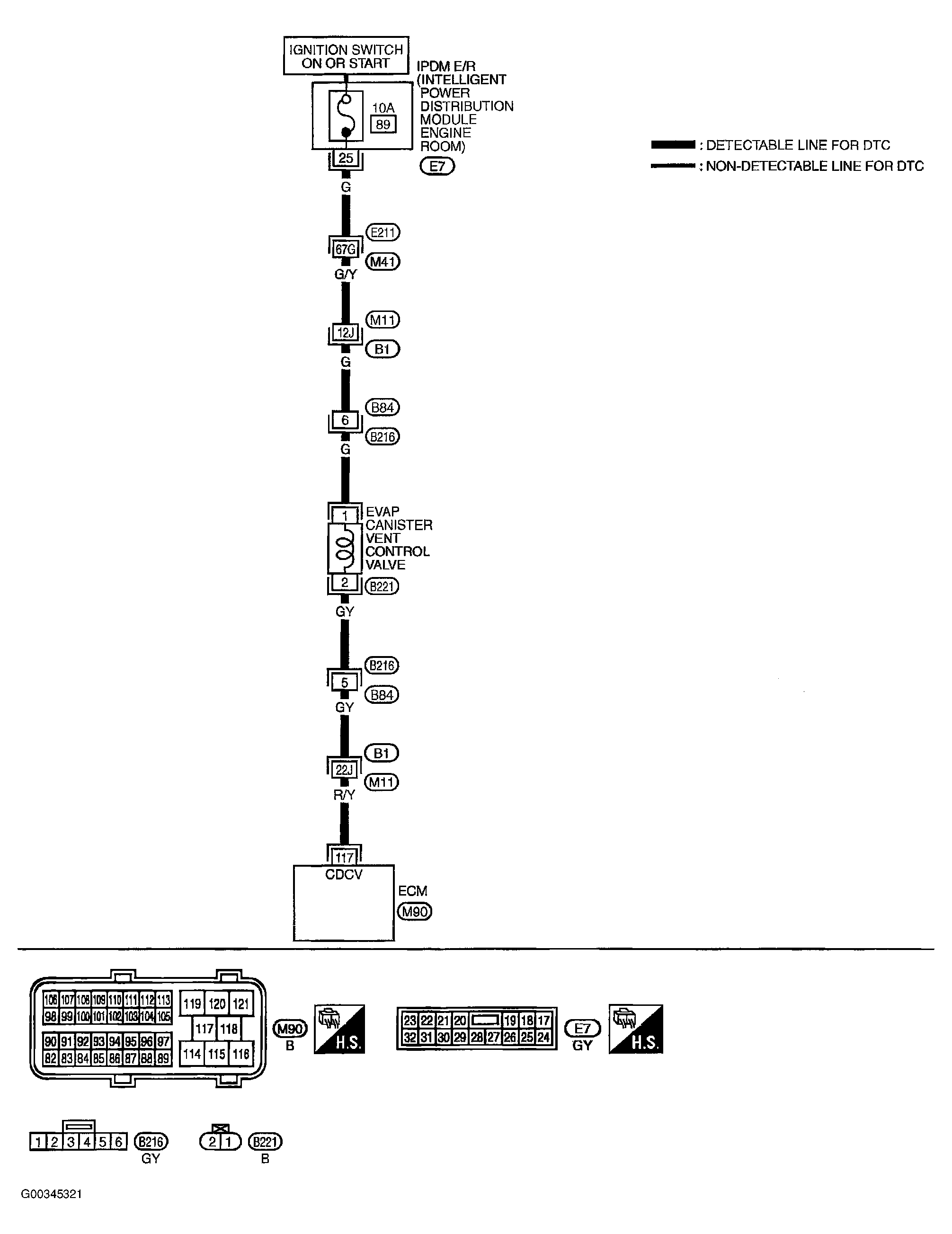

Fig 1: EVAP Canister Vent Control Valve Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Fig 2: ECM Terminals 117 Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
