Component Description

ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

Refer to AUTOMATIC SPEED CONTROL DEVICE (ASCD)  for the ASCD function.

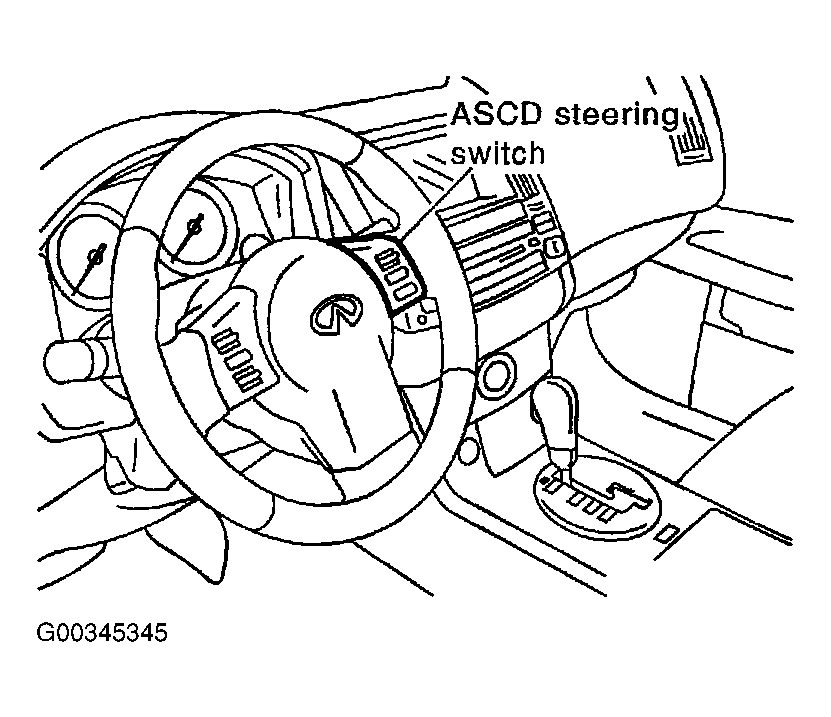

Fig 1: Locating ASCD Steering Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
