ICC Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between ICC steering switch terminals 14 and 15 with pushing each switch.

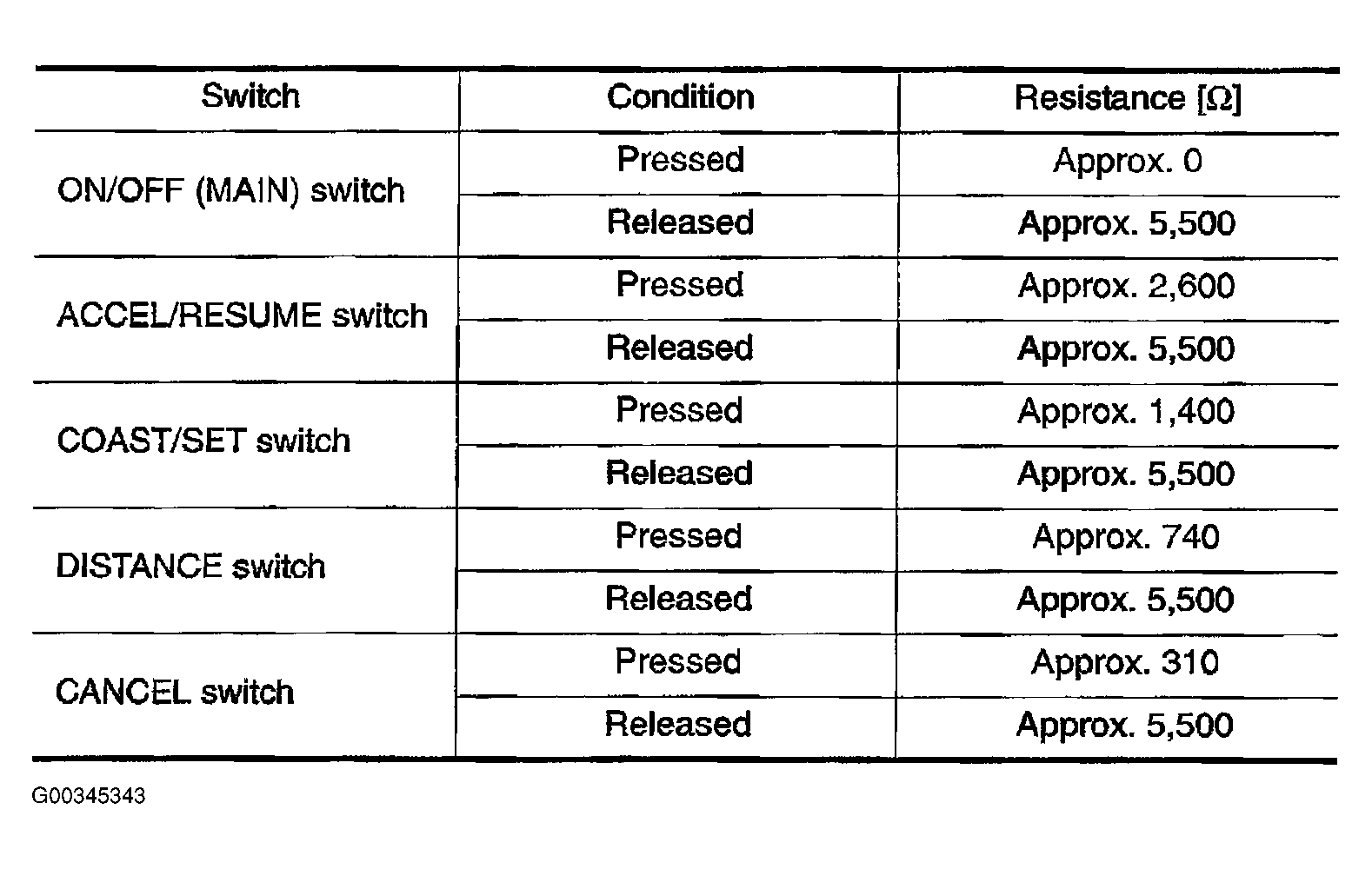

    Fig 1: ICC Steering Switch Resistance Specifications
    G00345343Courtesy of NISSAN MOTOR CO., U.S.A.

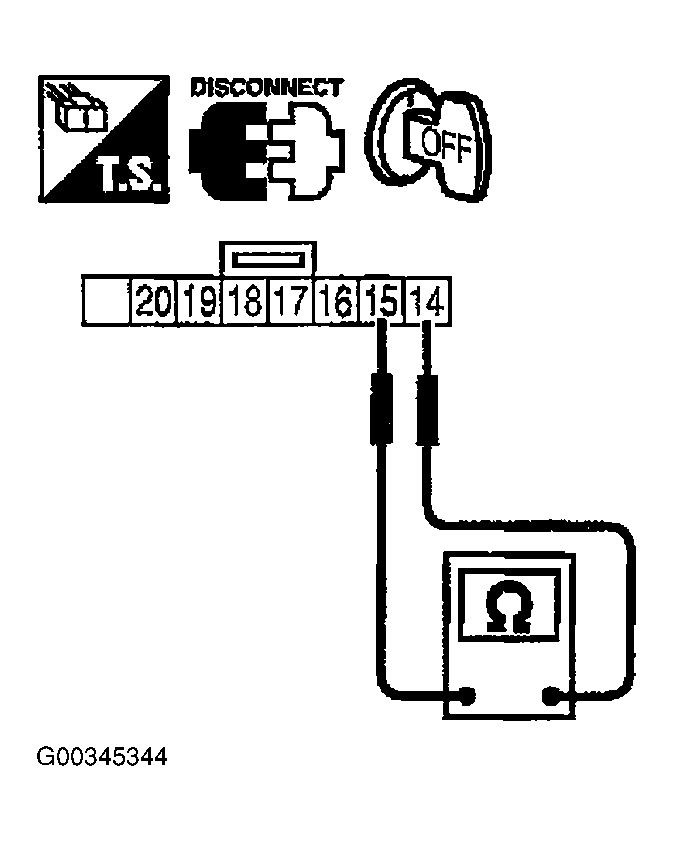

    Fig 2: Testing ICC Steering Switch Circuit Resistance (W/DVOM)
    G00345344Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, replace ICC steering switch.
