ASCD Brake Switch

Turn ignition switch OFF.
Disconnect ASCD brake switch harness connector.
Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.

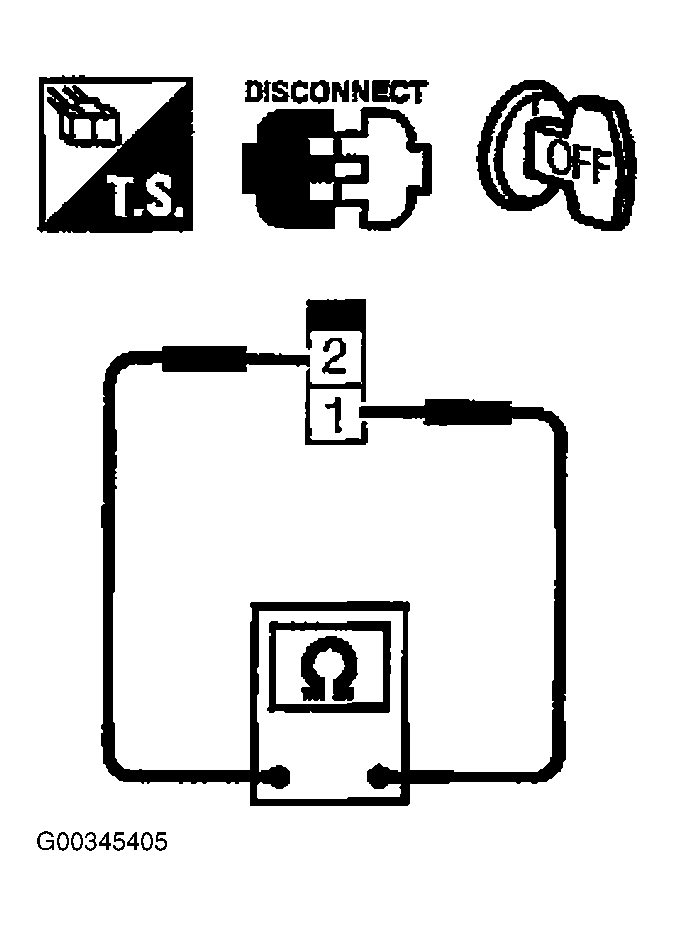

Fig 1: Testing ASCD Brake Switch (W/DVOM)
Courtesy of NISSAN MOTOR CO., U.S.A.

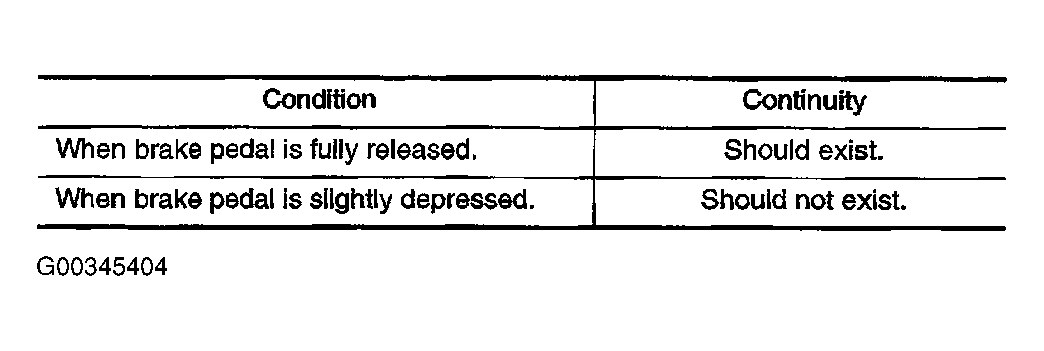

Fig 2: Identifying ASCD Brake Switch Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ASCD brake switch installation. See ON-VEHICLE SERVICE , and perform step 3 again.
