DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

With CONSULT-II

Turn ignition switch ON.
Select P/N POSI SW in DATA MONITOR mode with CONSULT-II. Then check the P/N POSI SW signal under the following conditions.

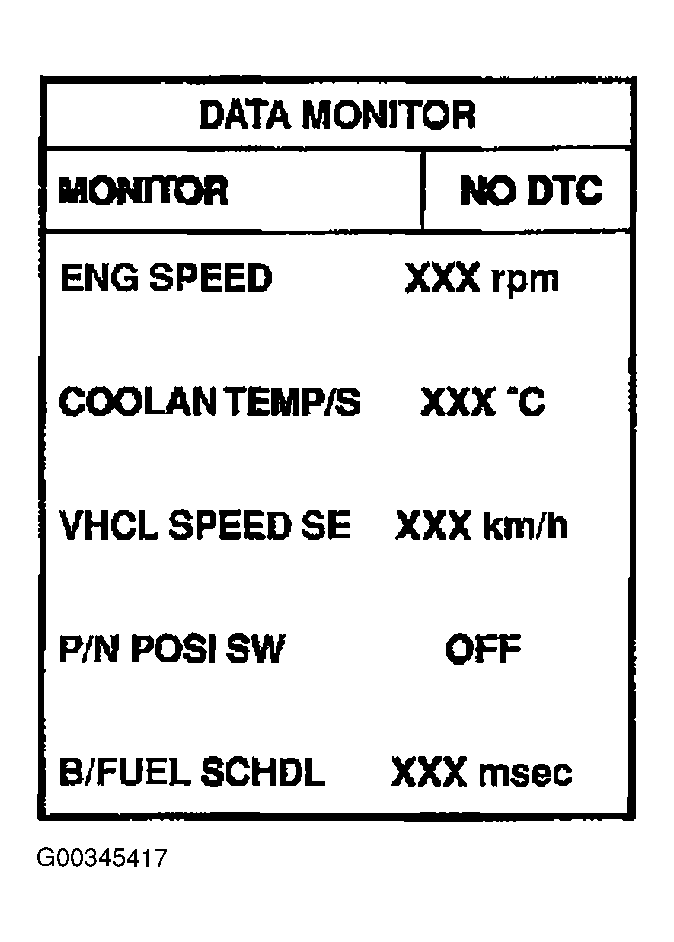

Fig 1: Displaying Park Neutral Position Switch (CONSULT-II)
Courtesy of NISSAN MOTOR CO., U.S.A.

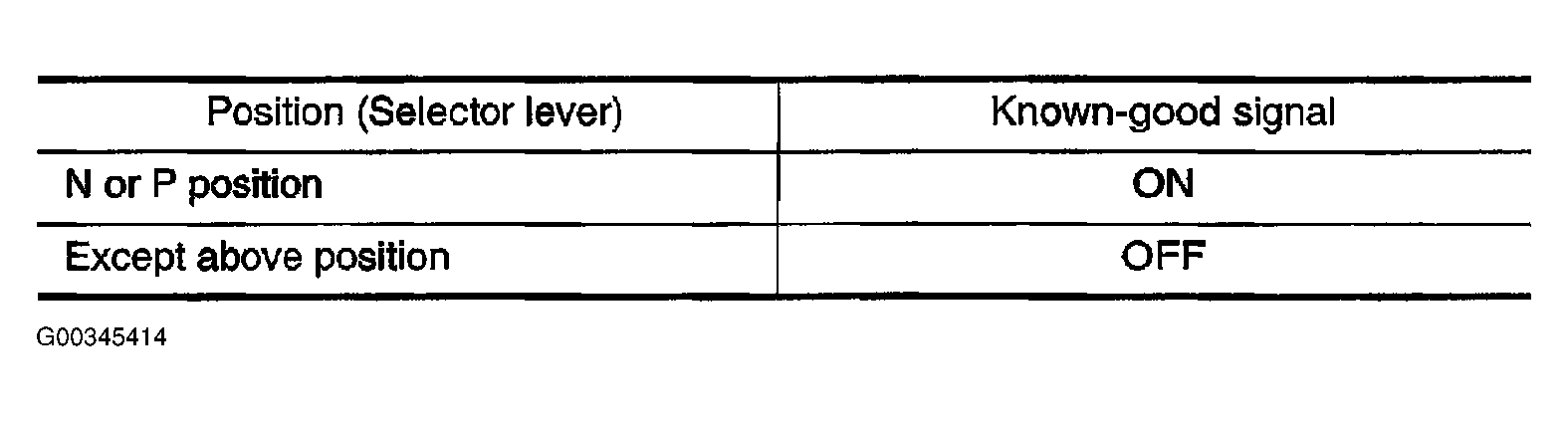

Fig 2: Park Neutral Position Switch Specifications (CONSULT-II)
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to DIAGNOSTIC PROCEDURE .

If OK, go to following step.
Select DATA MONITOR mode with CONSULT-II.
Start engine and warm it up to normal operating temperature.
Maintain the following conditions for at least 60 consecutive seconds.

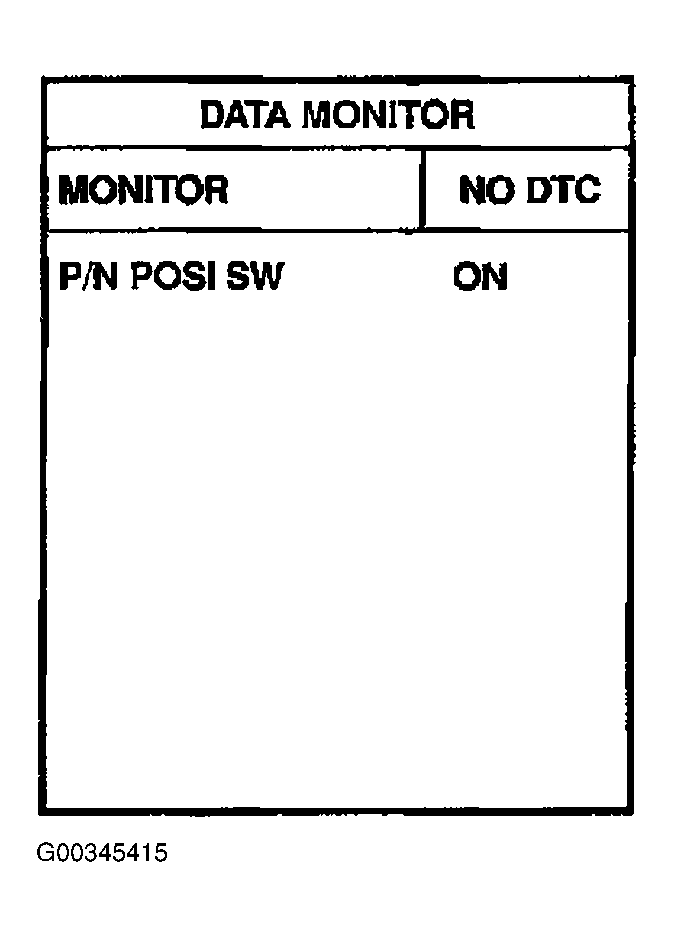

Fig 3: Testing Park Neutral Position Switch (CONSULT-II)
Courtesy of NISSAN MOTOR CO., U.S.A.

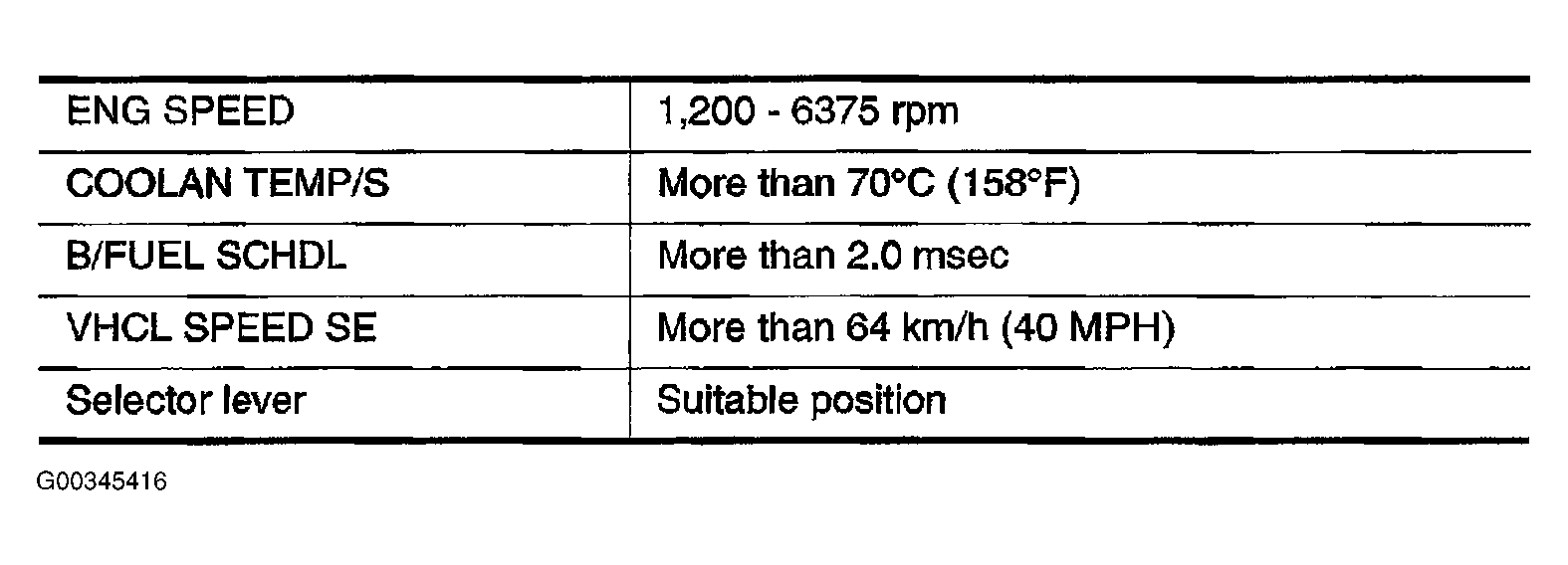

Fig 4: Park Neutral Position Switch Testing Conditions (CONSULT-II)
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
