Diagnostic Procedure

Check DTC With TCM
Refer to ON BOARD DIAGNOSTIC (OBD) SYSTEM .

OK or NG
1. OK: go to 2.
2. NG: Repair or replace.
Check Starting System
Turn ignition switch OFF, then turn it to START.

Does starter motor operate?

Yes or No
1. Yes: go to 3.
2. No: Refer to STARTERS .
Check PNP Switch Input Signal Circuit For Open And Short-I
1. Turn ignition switch OFF.
2. Disconnect TCM harness connector.
3. Disconnect unified meter and A/C amp. harness connector.
4. Check harness continuity between TCM terminal 9 and unified meter and A/C amp. terminal 32.

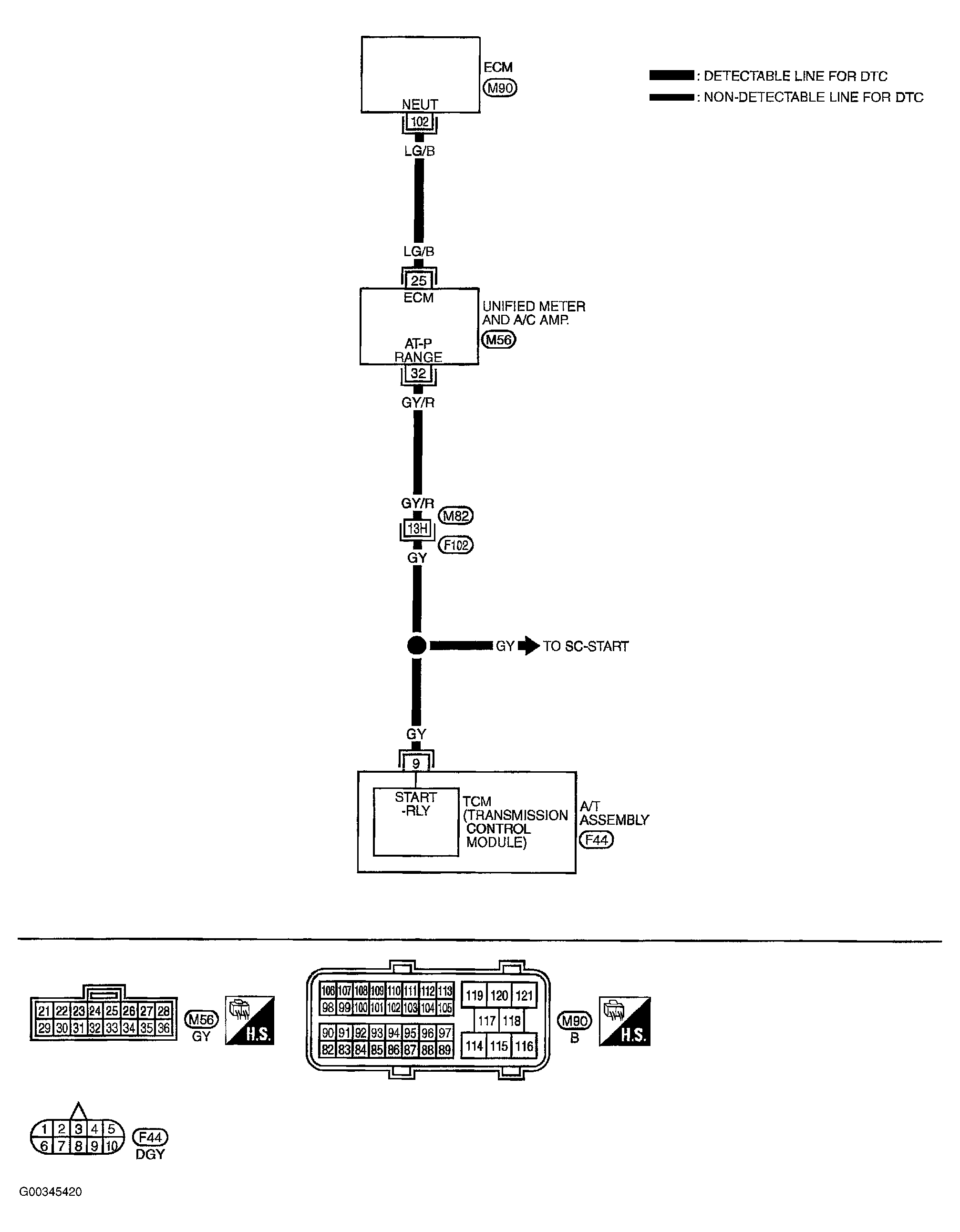

  Refer to wiring diagram. See Figure .
  1. Continuity should exist .
5. Also check harness for short to ground and short to power.
OK or NG
1. OK: go to 5 .
2. NG: go to 4.
Detect Malfunctioning Part
Check the following.
- Harness connectors F102, M82
- Harness for open or short between TCM and unified meter and A/C amp."
  1. Repair open circuit or short to ground or short to power in harness or connectors.
Check PNP Switch Input Signal Circuit For Open And Short-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 102 and unified meter and A/C amp. terminal 25.
  Refer to wiring diagram. See Figure .
  1. Continuity should exist .
3. Also check harness for short to ground and short to power.
OK or NG
1. OK: go to 6.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
Check Intermittent Incident
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

OK or NG
1. OK: go to 7.
2. NG: Repair or replace.
Replace Unified Meter And A/C AMP
Refer to UNIFIED METER AND A/C AMP .
1. Inspection end
