Overall Function Check

Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this check, a 1st trip DTC might not be confirmed.

With GST

1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.

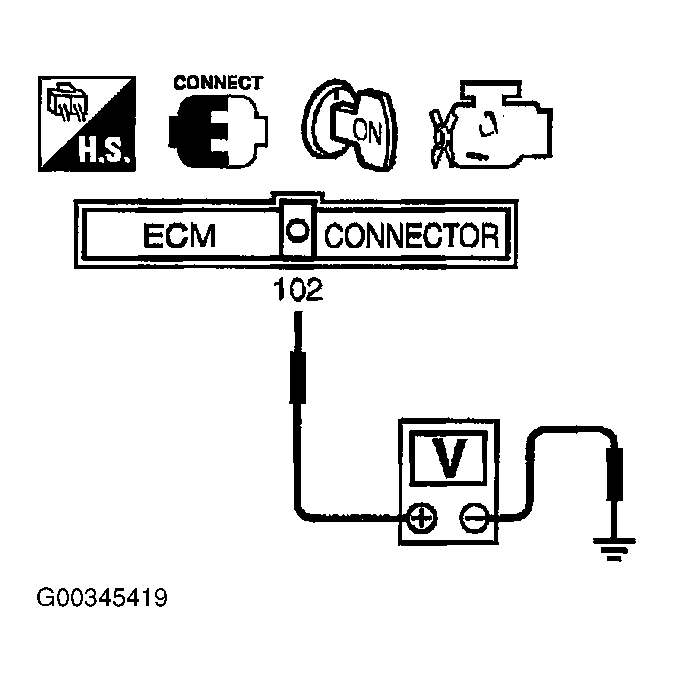

   Fig 1: Testing Park Neutral Position Switch (W/DVOM)

   Courtesy of NISSAN MOTOR CO., U.S.A.

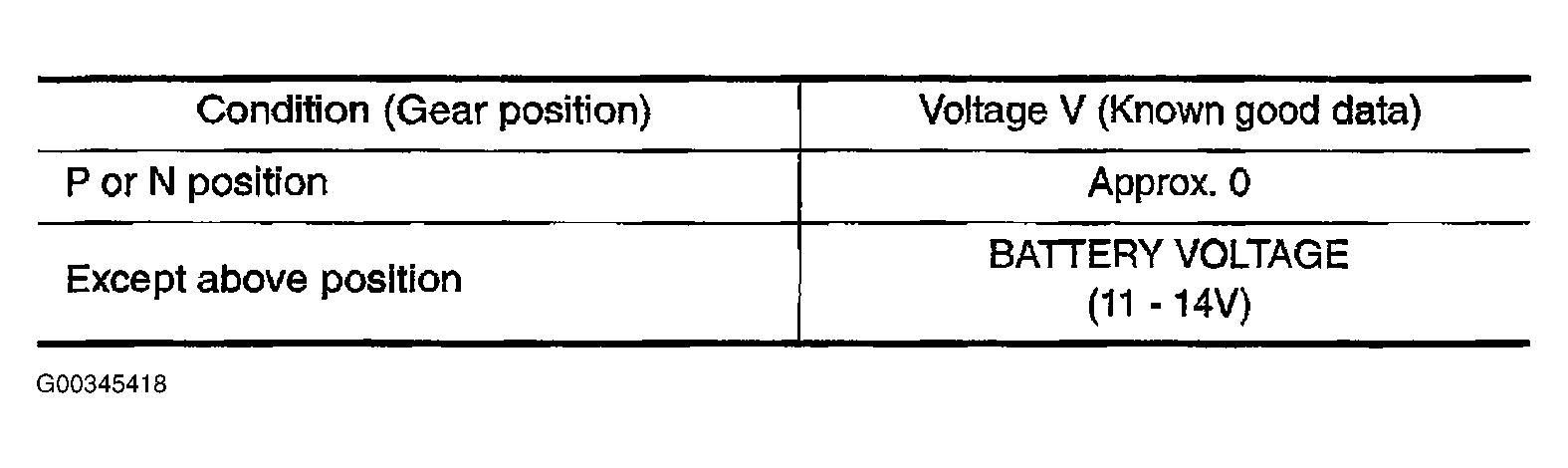

   Fig 2: Park Neutral Position Switch Specifications (W/DVOM)

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. If NG, go to DIAGNOSTIC PROCEDURE  .
