Stop Lamp Switch

  1. Disconnect stop lamp switch harness connector. See Figure .
  2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

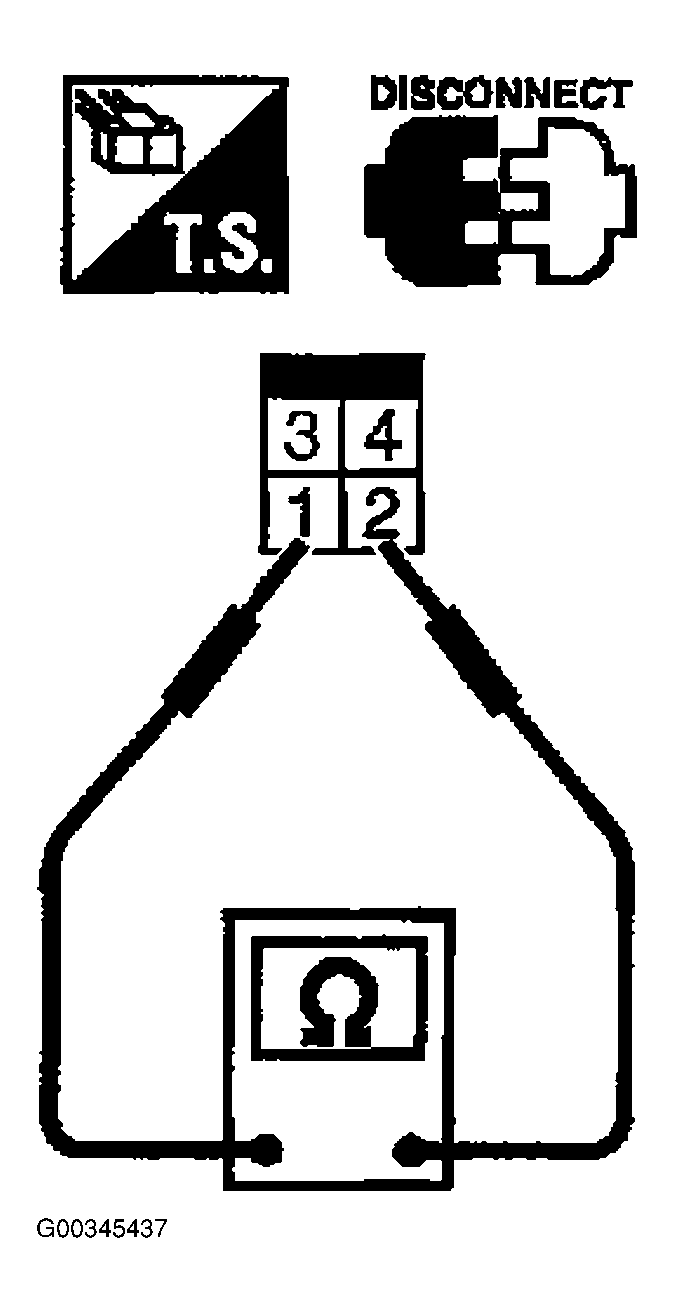

    Fig 1: Testing Stop Lamp Switch Continuity
    G00345437Courtesy of NISSAN MOTOR CO., U.S.A.

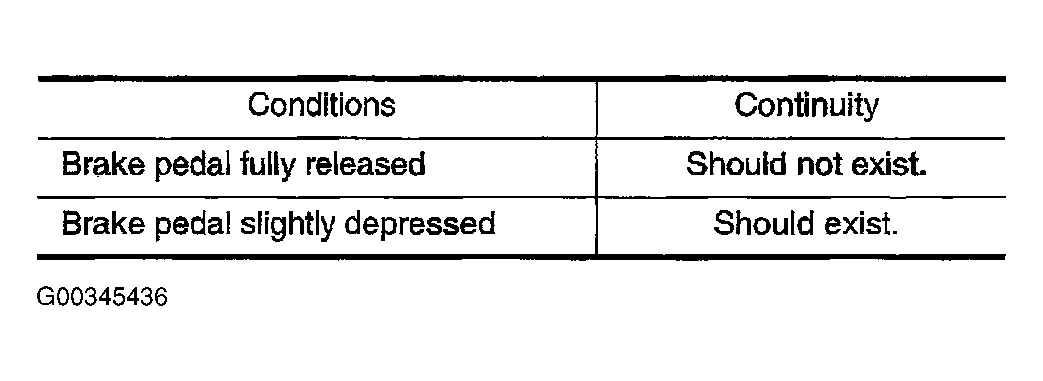

    Fig 2: Stop Lamp Switch Continuity Specifications
    G00345436Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, adjust stop lamp switch installation, Refer to ON-VEHICLE SERVICE , and perform step 2 again.
