DTC P2135 TP Sensor: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

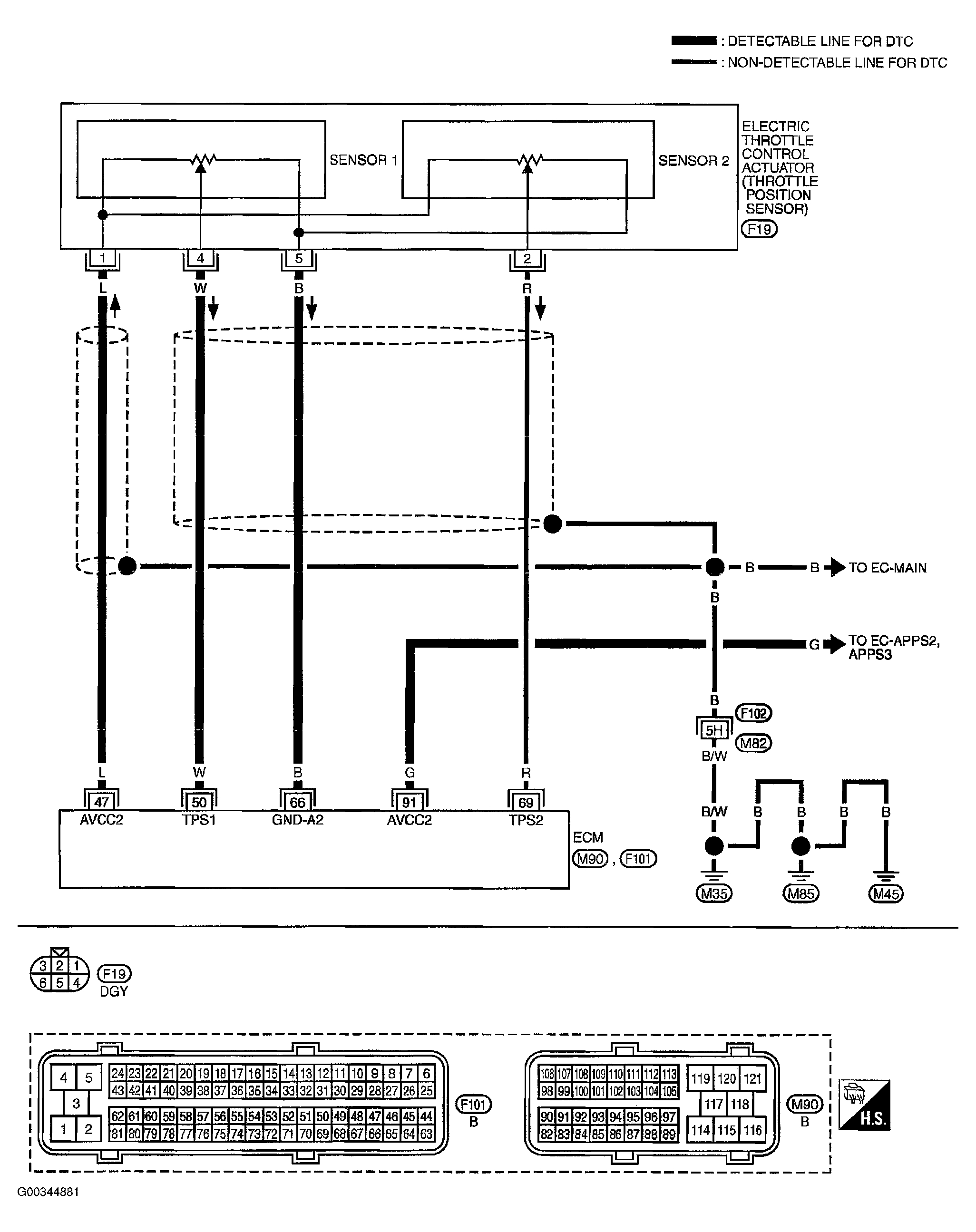

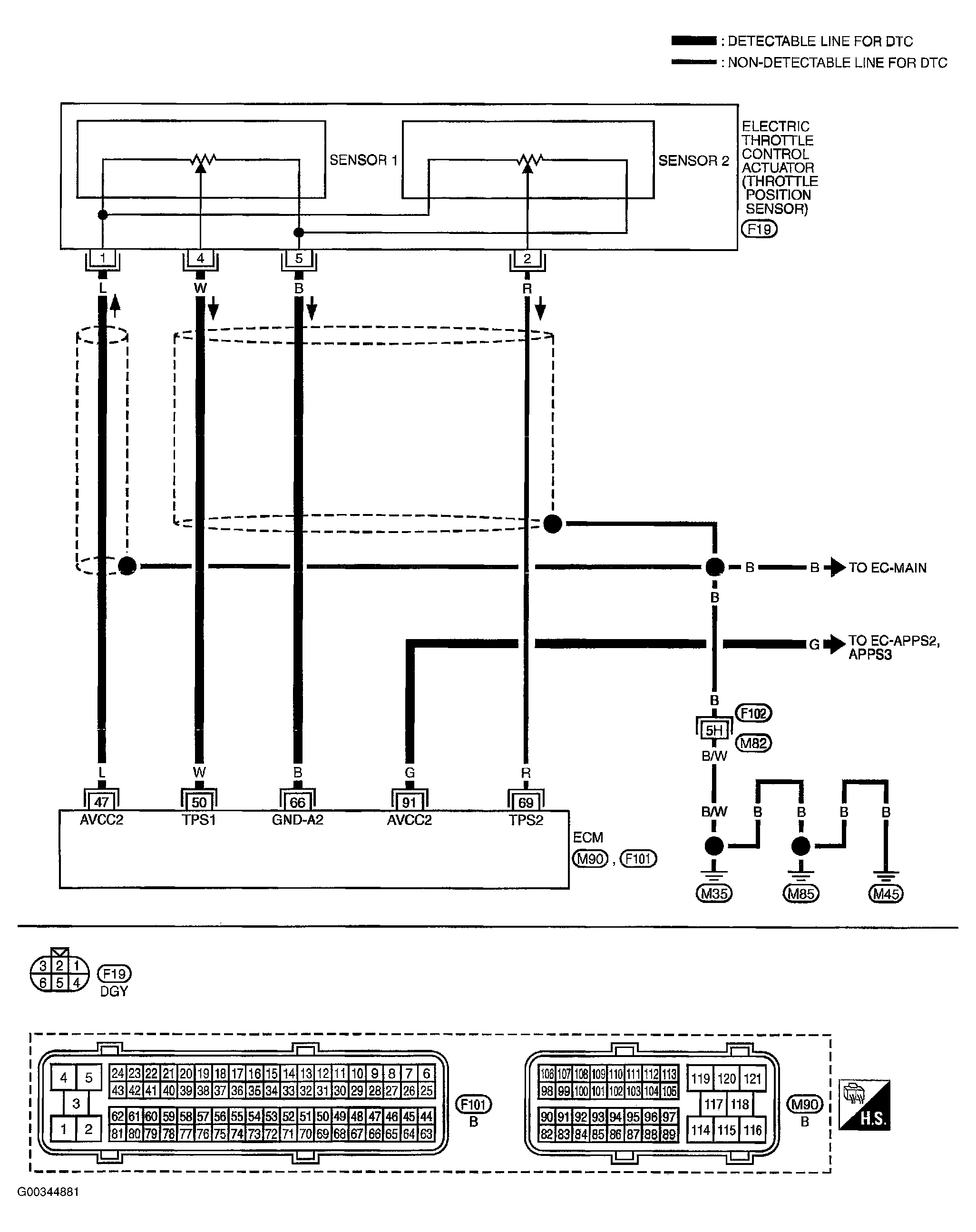

For electric throttle control actuator-throttle position sensor circuit, see Figure .

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

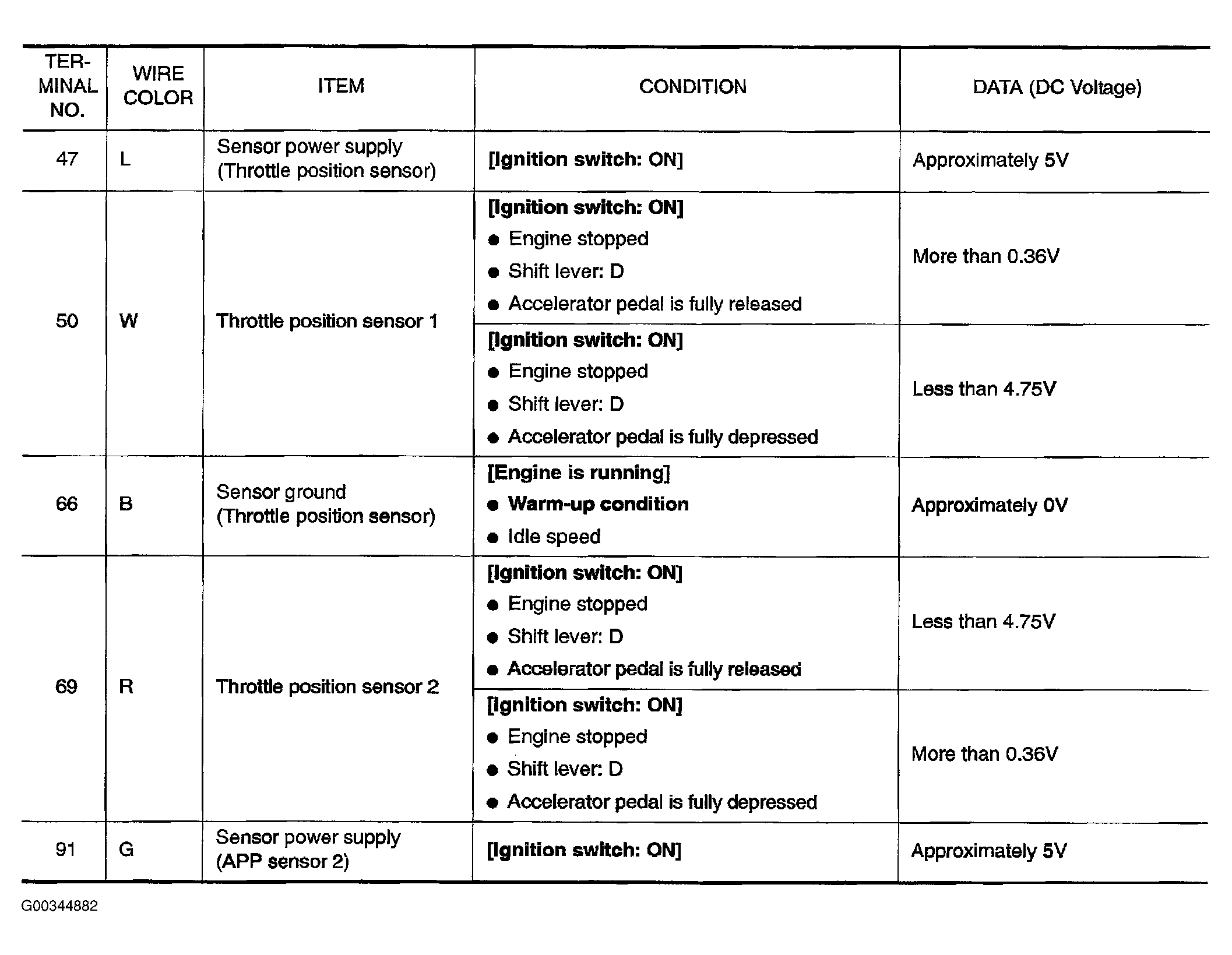

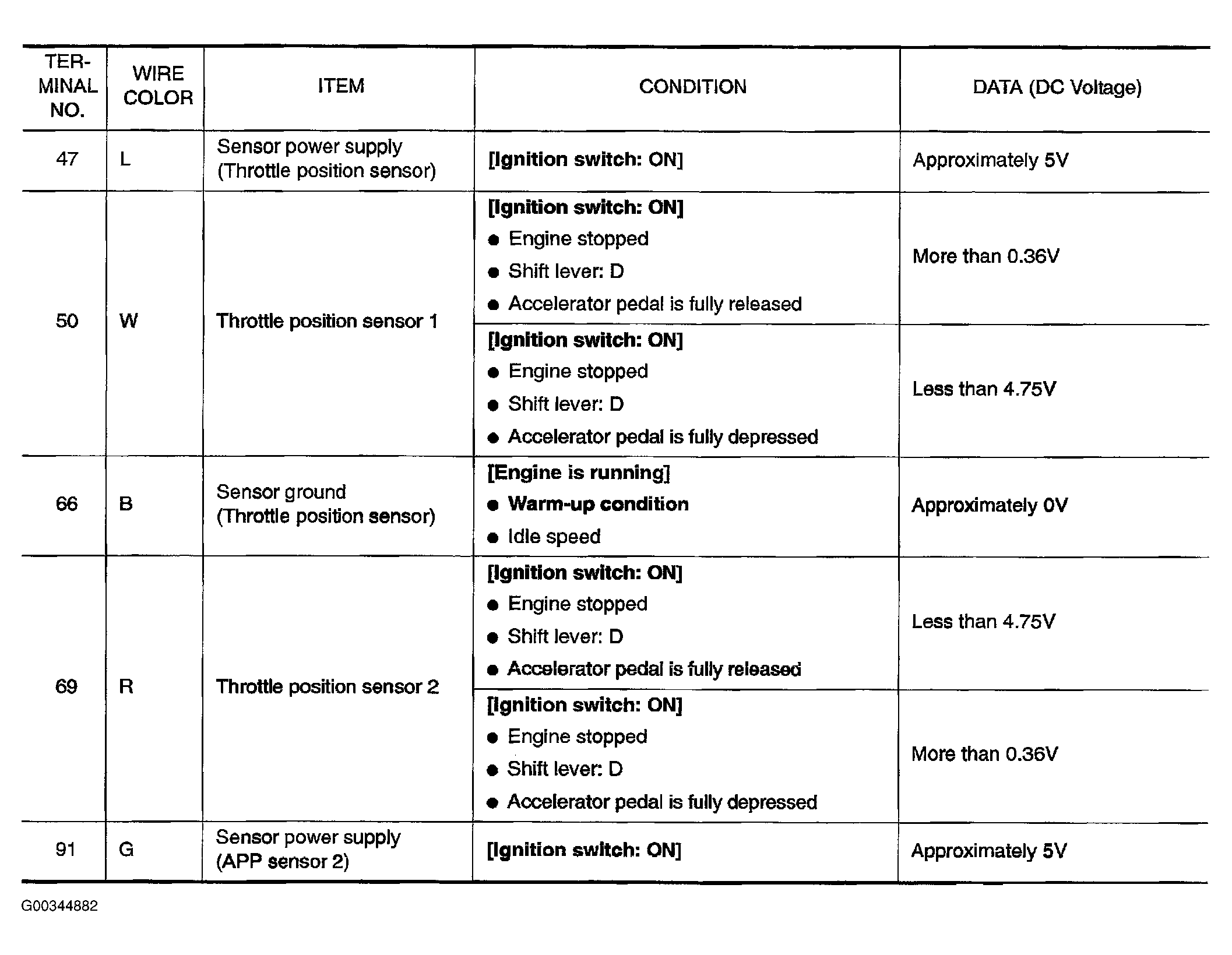

For ECM Terminal 47, 50, 66, 69 & 91 Specifications, see Figure .
