Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.

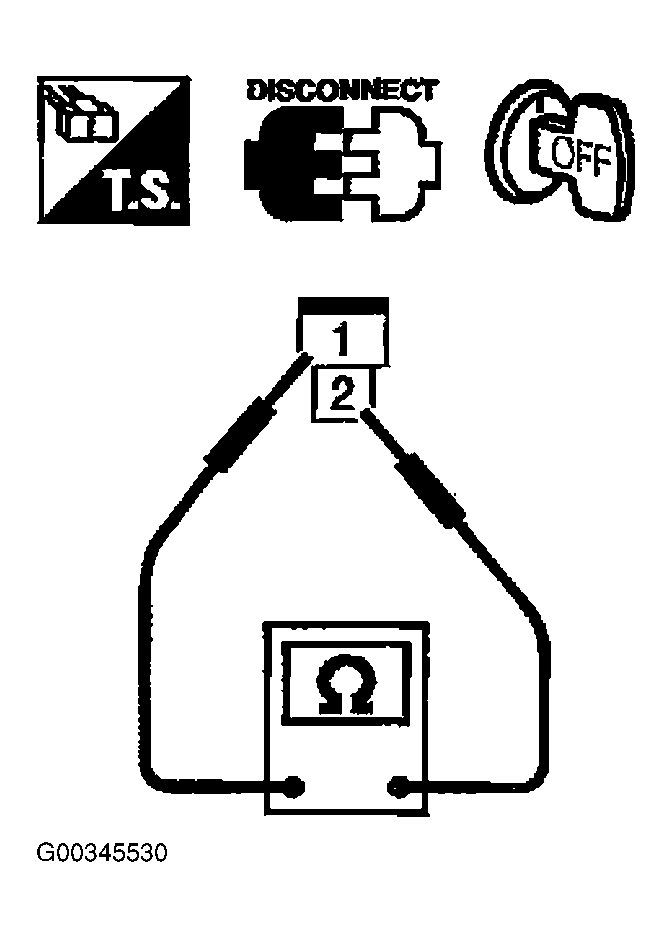

  3. Check resistance between condenser terminals 1 and 2, at 77° Fahrenheit Above 1Mohm. See Figure .
