Component Description

When depress on the brake pedal, ICC brake switch is turned OFF and stop lamp switch is turned ON. ECM detects the state of the brake pedal by this input of two kinds (ON/OFF signal)

Refer to DESCRIPTION for the ICC function.

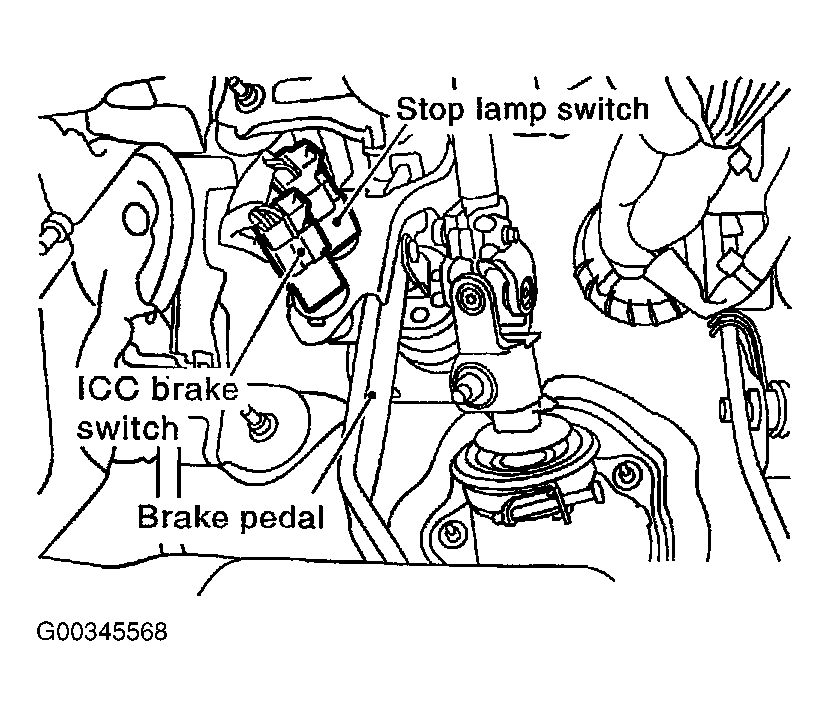

Fig 1: Identifying ICC Brake & Stop Lamp Switches

Courtesy of NISSAN MOTOR CO., U.S.A.
