Stop Lamp Switch
- Turn ignition switch OFF.
- Disconnect stop lamp switch harness connector.

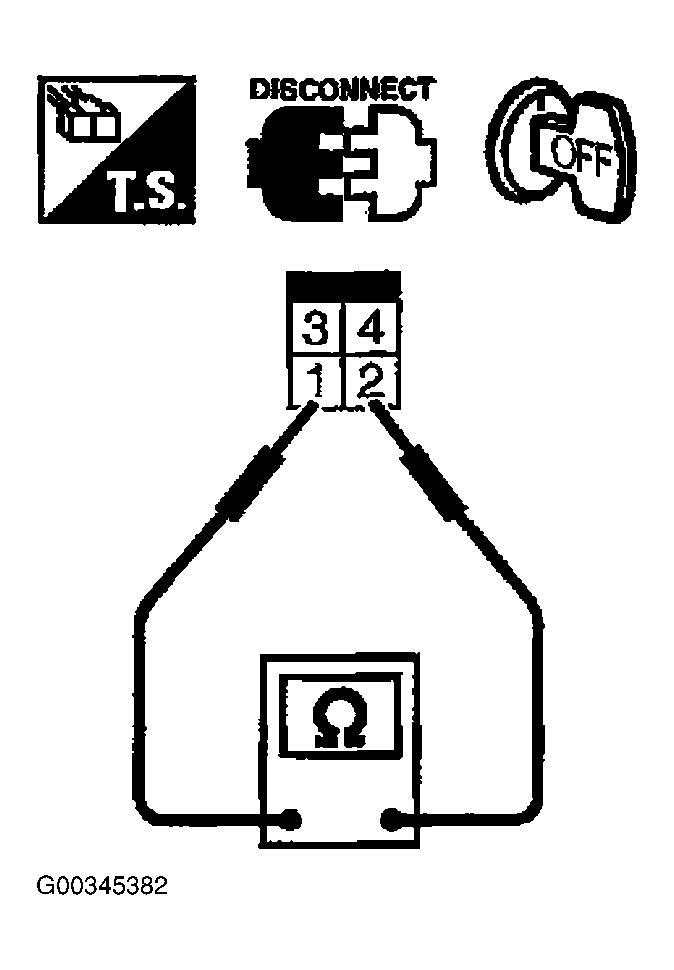

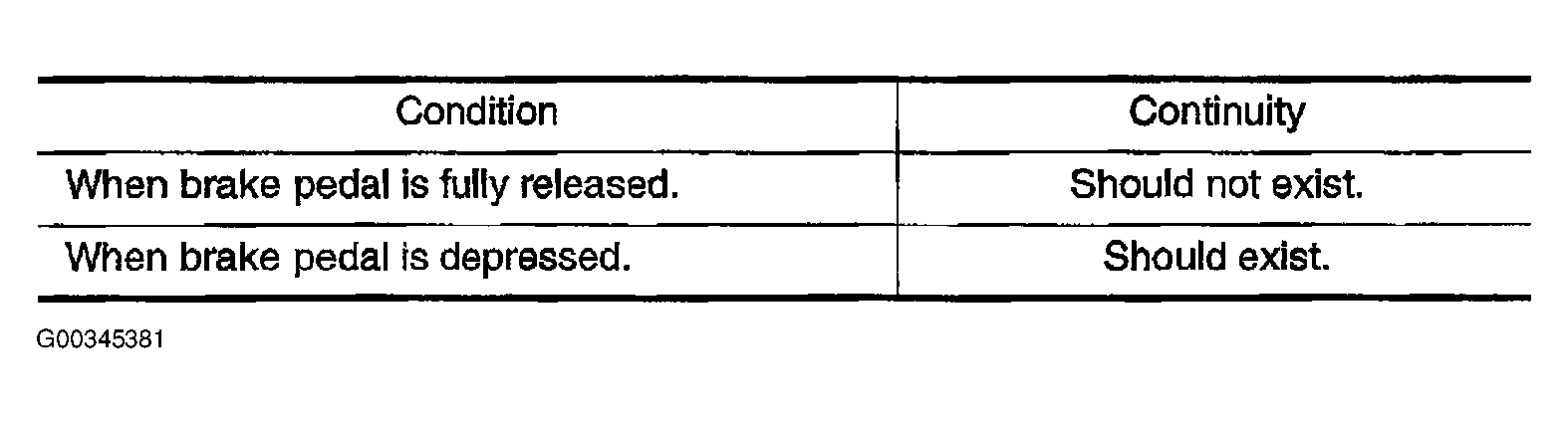

- Check continuity between stop lamp switch terminals 1 and 2 under the following conditions. See Figure
and Figure
.
If NG, adjust stop lamp switch installation, Refer to ON-VEHICLE SERVICE , and perform step 3 again.
