Diagnostic Procedure

  1. Check Engine Start

    Turn ignition switch OFF, and restart engine.

    Is engine running?

    Yes or No

    1. Yes (With CONSULT-II): go to 2.
    2. Yes (Without CONSULT-II): go to  3 .
    3. No: go to  4 .

  2. Check Overall Function

    With CONSULT-II

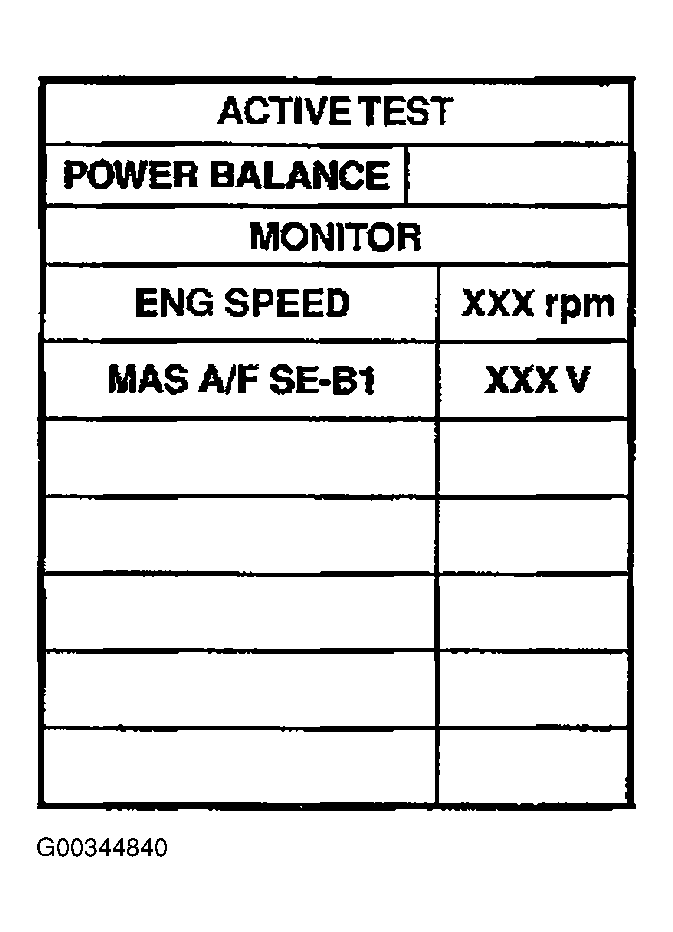

    1. Perform POWER BALANCE in ACTIVE TEST mode with CONSULT-II. See Figure .
    2. Make sure that each circuit produces a momentary engine speed drop.

    OK or NG

    1. OK: Inspection end
    2. NG: go to  10 .

  3. Check Overall Function

    Without CONSULT-II

    1. Let engine idle.
    2. Read the voltage signal between ECM terminals 46, 60, 61, 62, 65, 79, 80, 81 and ground with an oscilloscope.

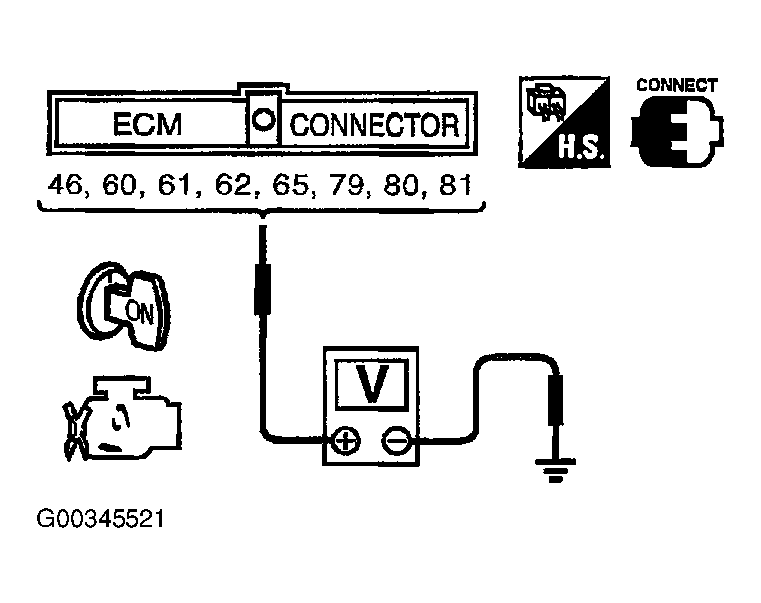

      Fig 1: Testing ECM Signals To Ignition Coils
      G00345521Courtesy of NISSAN MOTOR CO., U.S.A.
      3. NOTE: The pulse cycle changes depending on RPM at idle.

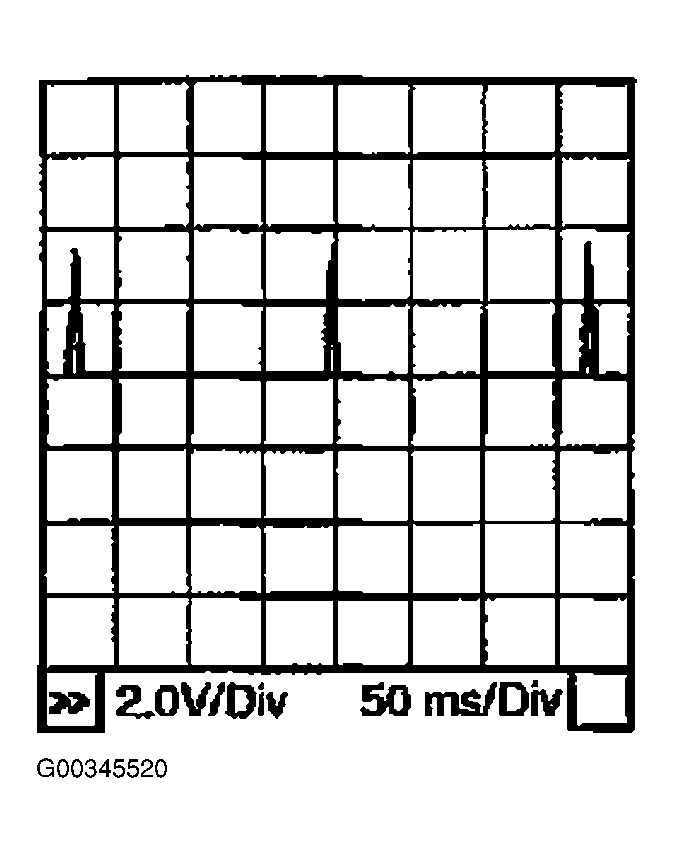

      Fig 2: Identifying Pulse Cycle
      G00345520Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Verify that the oscilloscope screen shows the signal wave as shown in Fig 2 .

    OK or NG

    1. OK: Inspection end
    2. NG: go to  10 .

  4. Check Ignition Coil Power Supply Circuit-I
    1. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.

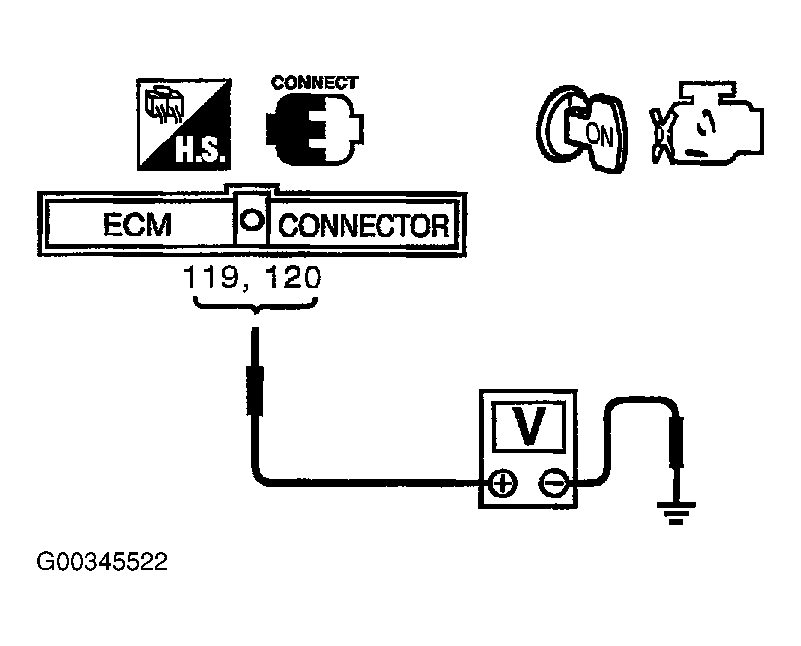

    2. Check voltage between ECM terminals 119, 120 and ground with CONSULT-II or tester. See Figure .
      1. Voltage: Battery voltage

    OK or NG

    1. OK: go to 5.
    2. NG: go to POWER SUPPLY AND GROUND CIRCUIT  .

  5. Check Ignition Coil Power Supply Circuit-II
    1. Turn ignition switch OFF.

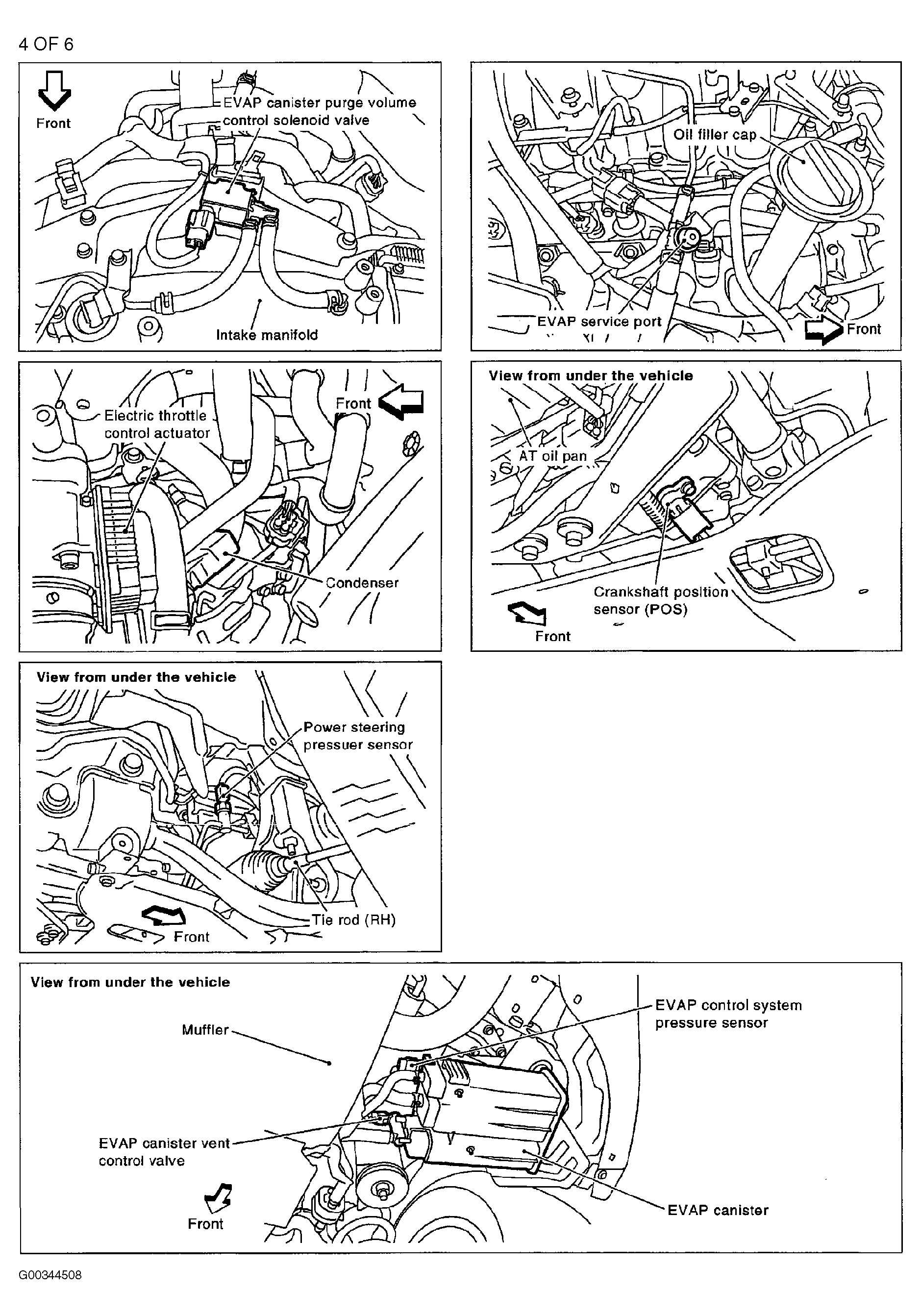

    2. Disconnect condenser harness connector. See Figure .
    3. Turn ignition switch ON.
    4. Check voltage between condenser terminal 1 and ground with CONSULT-II or tester.

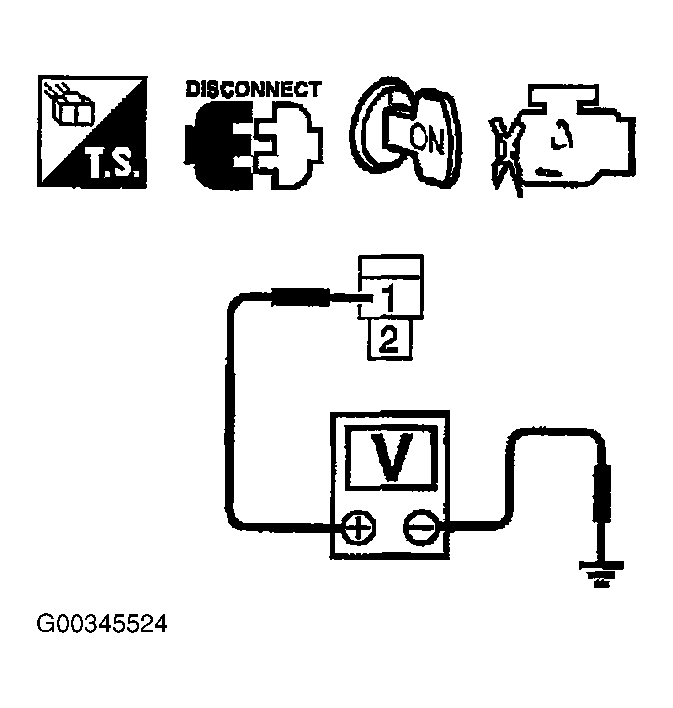

      Fig 3: Testing Condenser Circuit (W/DVOM)
      G00345524Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Voltage: Battery voltage

    OK or NG

    1. OK: go to  8 .
    2. NG: go to 6.

  6. Check Ignition Coil Power Supply Circuit-III
    1. Turn ignition switch OFF.
    2. Disconnect IPDM E/R harness connector E7.
    3. Check harness continuity between IPDM E/R terminal 17 and condenser terminal 1.

      Refer to wiring diagram. See WIRING DIAGRAM  .

      1. Continuity should exist  .
    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: go to POWER SUPPLY AND GROUND CIRCUIT  .
    2. NG: go to 7.

  7. Detect Malfunctioning Part

    Check the following.

    • Harness connector E19, F49
    • Harness for open or short between IPDM E/R and condenser
      1. Repair open circuit or short to ground or short to power in harness or connectors.

  8. Check Condenser Ground Circuit For Open And Short
    1. Turn ignition switch OFF.
    2. Check harness continuity between condenser terminal 2 and ground.

      Refer to wiring diagram. See WIRING DIAGRAM  .

      1. Continuity should exist  .
    3. Also check harness for short to power.

    OK or NG

    1. OK: go to 9.
    2. NG: Repair open circuit or short to power in harness or connectors.

  9. Check Condenser

    Refer to COMPONENT INSPECTION  .

    OK or NG

    1. OK: go to 10.
    2. NG: Replace condenser.

  10. Check Ignition Coil Power Supply Circuit-IV
    1. Turn ignition switch OFF.
    2. Reconnect all harness connectors disconnected.

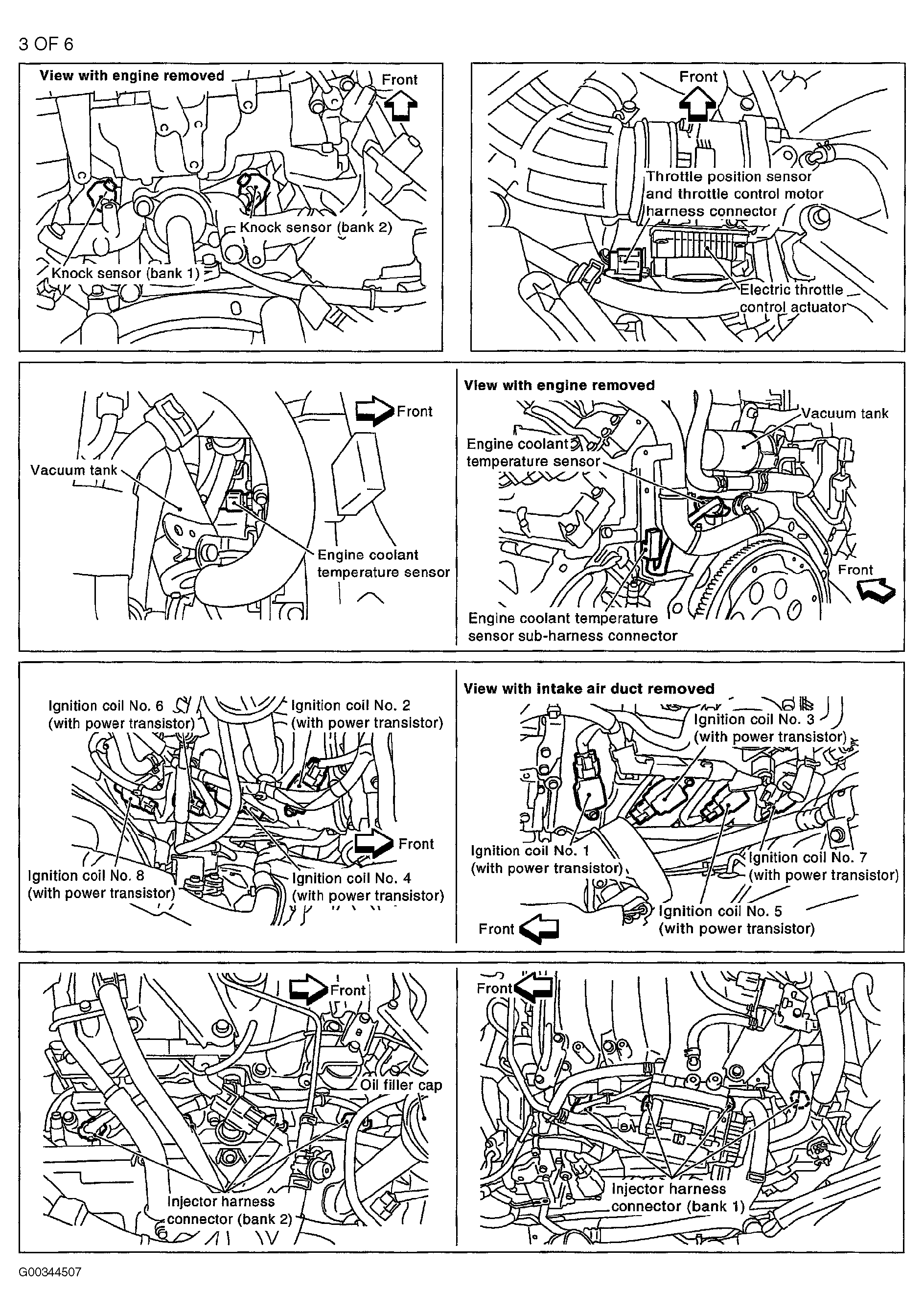

    3. Disconnect ignition coil harness connector. See Figure .
    4. Turn ignition switch ON.
    5. Check voltage between ignition coil terminal 3 and ground with CONSULT-II or tester.
      1. Voltage: Battery voltage

    OK or NG

    1. OK: go to  12 .
    2. NG: go to 11.

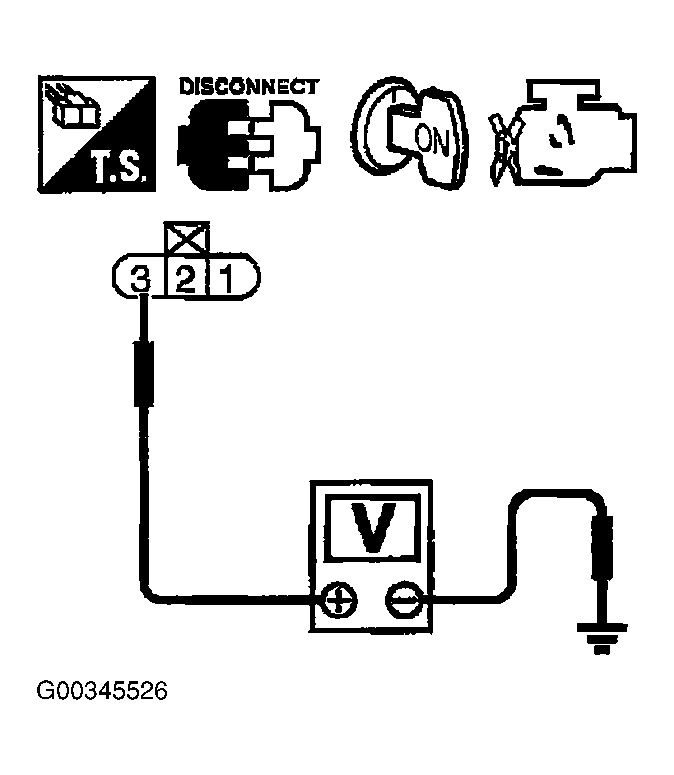

      Fig 4: Testing Ignition Coil Terminal 3 Circuit (W/DVOM)
      G00345526Courtesy of NISSAN MOTOR CO., U.S.A.

  11. Detect Malfunctioning Part

    Check the following.

    • Harness connector F49
    • Harness for open or short between ignition coil and harness connector F49

    1. Repair or replace harness or connectors.
  12. Check Ignition Coil Ground Circuit For Open And Short
    1. Turn ignition switch OFF.
    2. Check harness continuity between ignition coil terminal 2 and ground. Refer to wiring diagram. See WIRING DIAGRAM  .
      1. Continuity should exist  .
    3. Also check harness for short to power.

    OK or NG

    1. OK: go to 13.
    2. NG: Repair open circuit or short to power in harness or connectors.

  13. Check Ignition Coil Output Signal Circuit For Open And Short
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminals 46, 60, 61, 62, 65, 79, 80, 81 and ignition coil terminal 1.

      Refer to wiring diagram. See WIRING DIAGRAM  .

      1. Continuity should exist  .
    3. Also check harness for short to ground and short to power.

    OK or WG

    1. OK: go to 14.
    2. NG: Repair open circuit or short to ground or short to power in harness or connectors.

  14. Check Ignition Coil With Power Transistor

    Refer to COMPONENT INSPECTION  .

    OK or NG

    1. OK: go to 15.
    2. NG: Replace ignition coil with power transistor.

  15. Check Intermittent Incident

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

    1. Inspection end
