NOTE:
If DTC U1000 or U1001 is displayed with other DTC's, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE
.

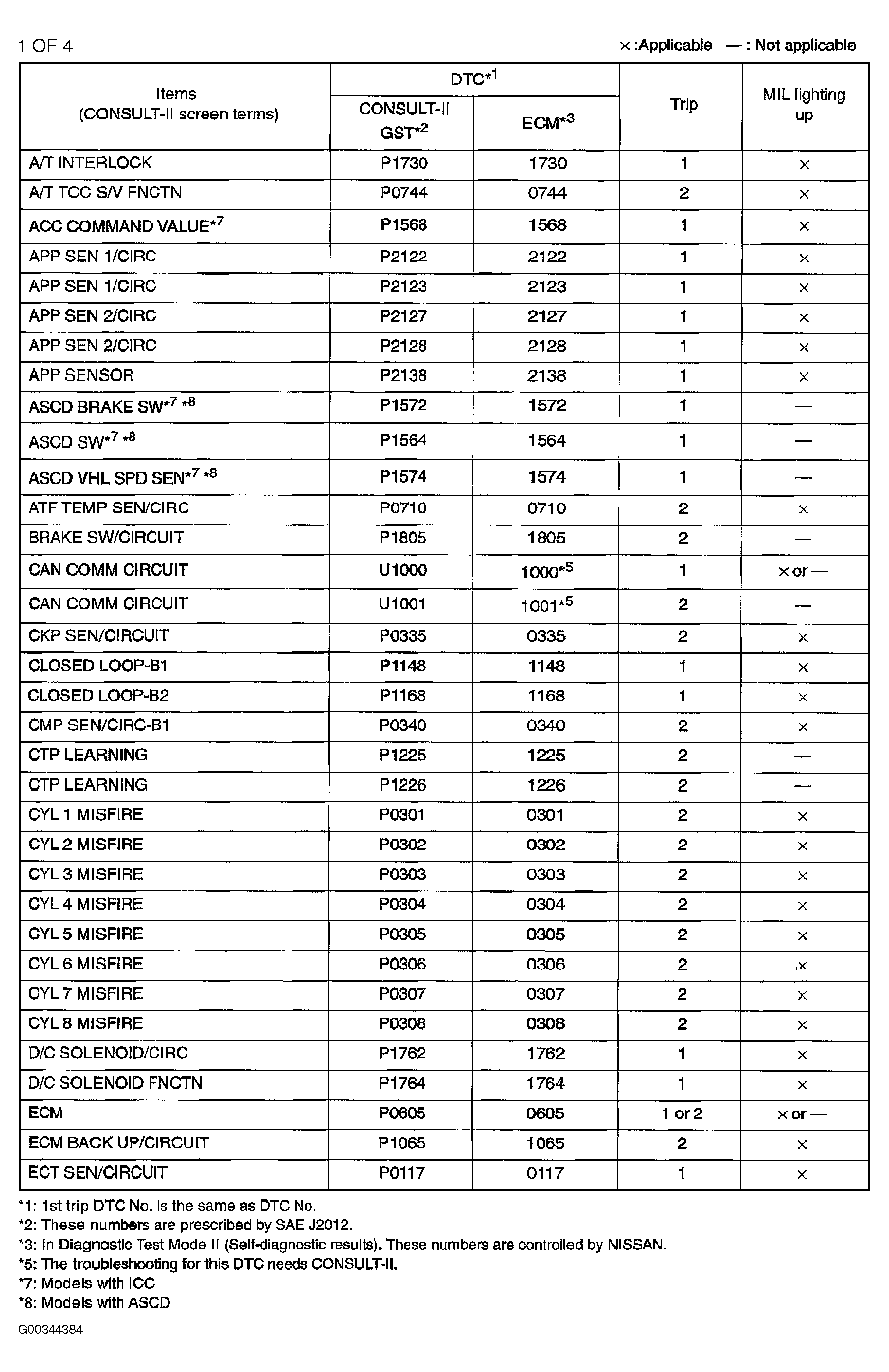

Fig 1: Identifying DTC's By Alphabetically (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

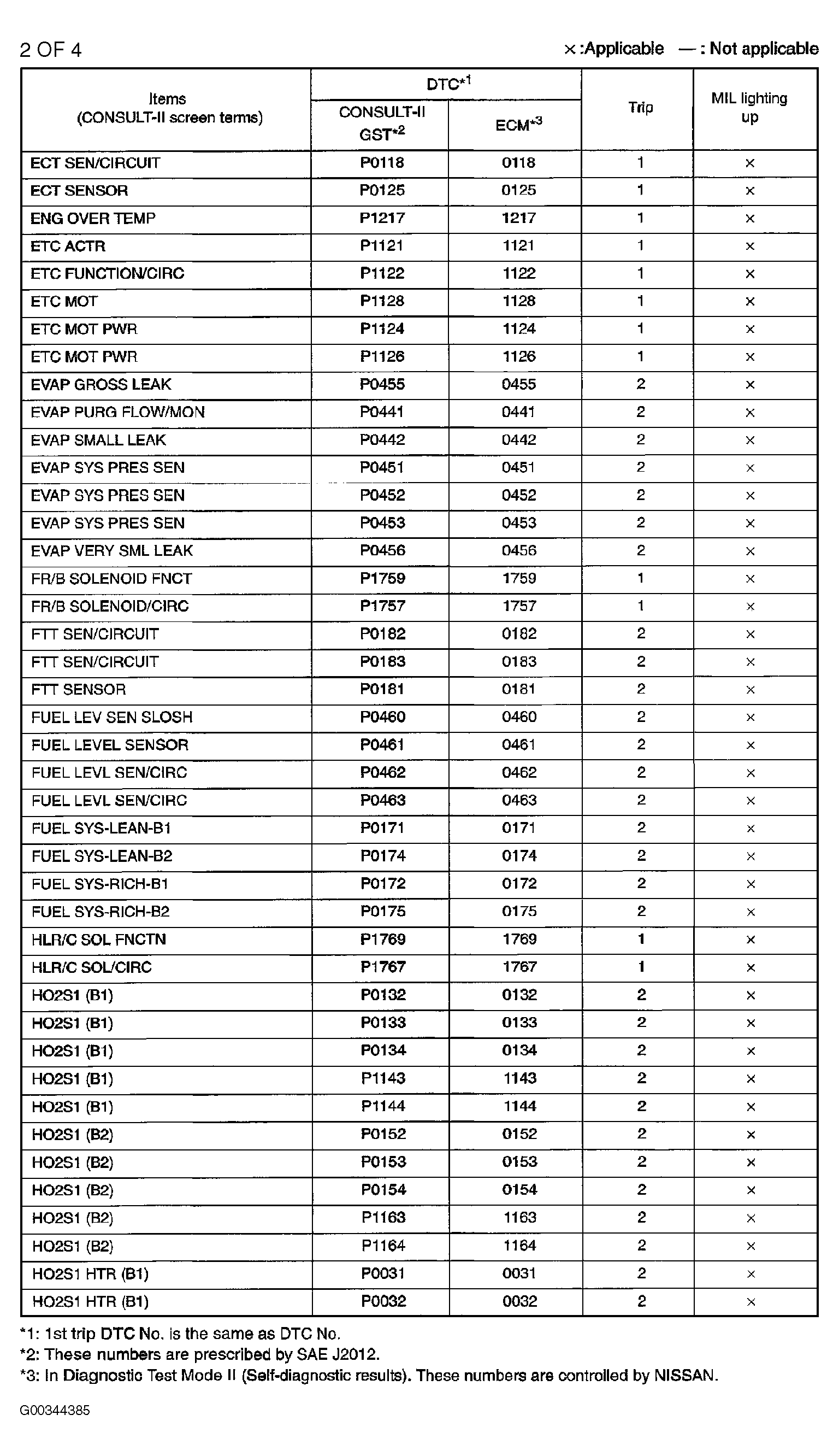

Fig 2: Identifying DTC's By Alphabetically (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

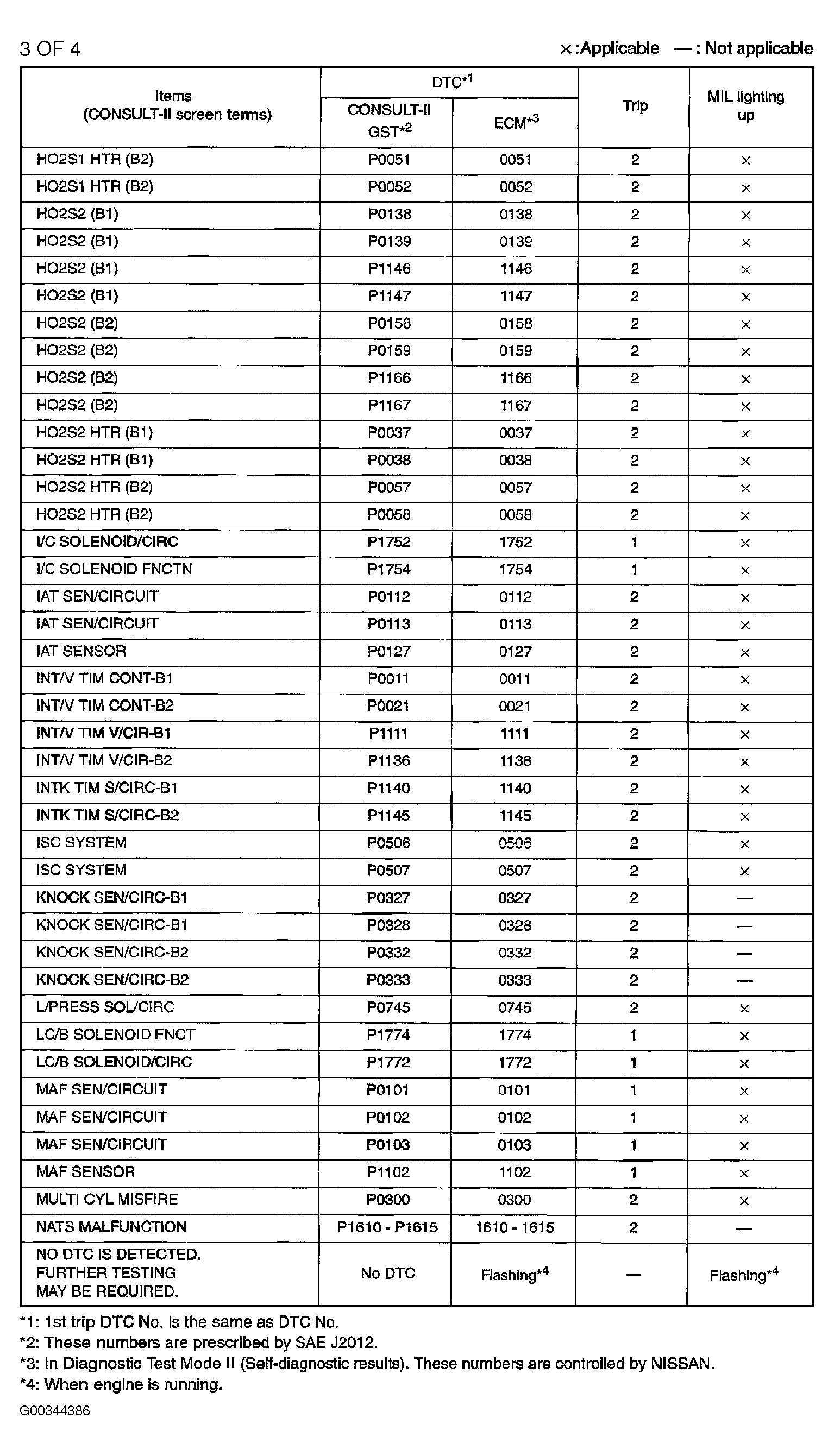

Fig 3: Identifying DTC's By Alphabetically (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

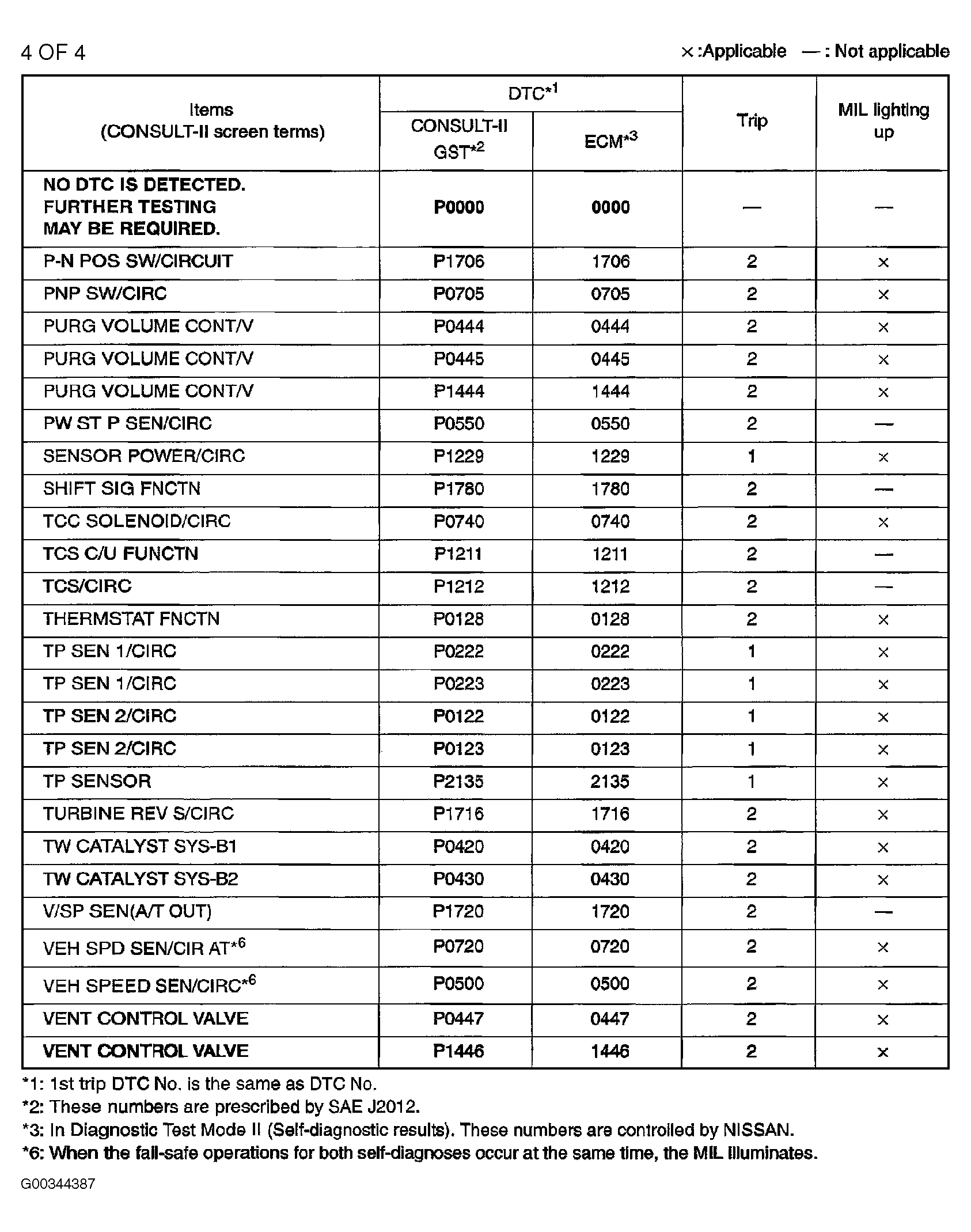

Fig 4: Identifying DTC's By Alphabetically (4 Of 4)
