CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

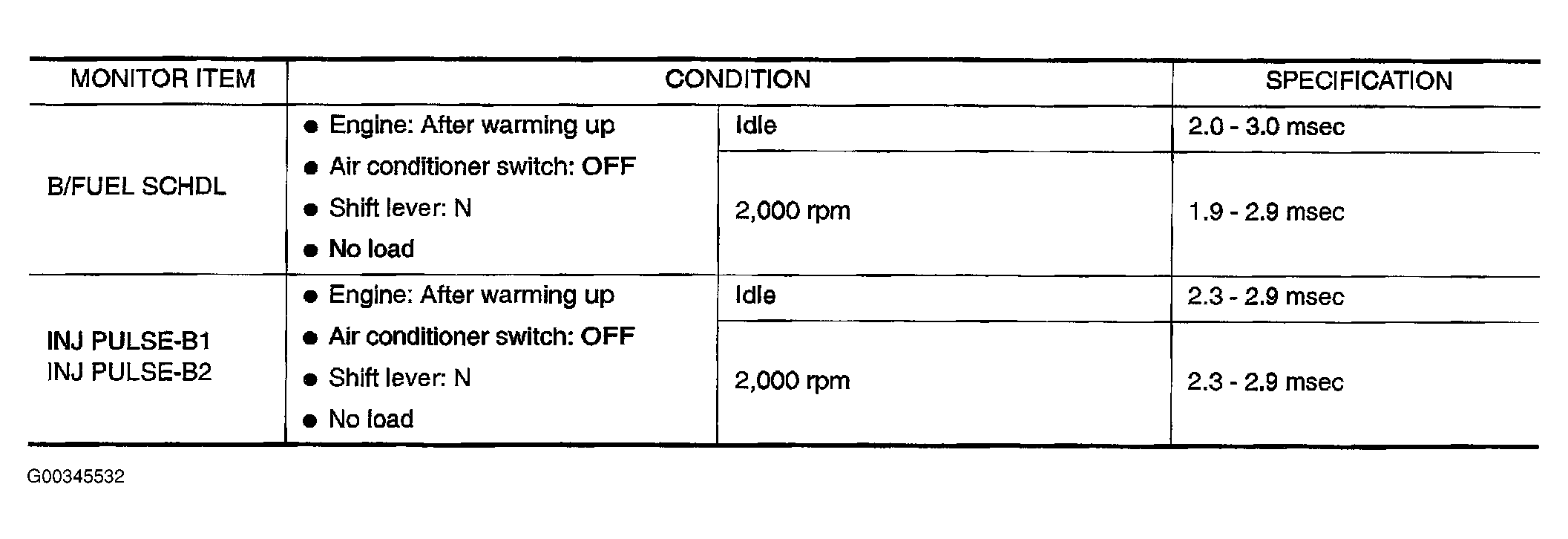

Fig 1: Identifying Injector Related Specifications (CONSULT-II)
G00345532Courtesy of NISSAN MOTOR CO., U.S.A.
